Defense Products Catalog — Page 160

Sort by

All categories

Manufacturer

Region

Ammunition for 30 mm DEFA guns

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Ammunition for 30 mm DEFA guns

Armament Giat Industries 30 mm DEFA Series 552/553 guns; Giat Industries 30 mm Series 554 gun; Giat Industries 30 mm Mle 781 (30 M 781) cannon; M230 Chain Gun. Development The French 30 mm DEFA Series 552/553 and Series 554 aircraft guns have the same design origins as the UK 30 mm Aden Guns, namely the Second World War German Mauser 213C revolver cannon. The German gun was taken as the base for what became a series of 30 mm aircraft guns, culminating in the Series 552/553 and 554 guns used in the Dassault Mirage series of strike fighters and other aircraft. Following early French cartridge design forays, international design collaboration with the UK resulted in the 30 × 113 mm B cartridge, which is nominally interchangeable between the DEFA guns and the 30 mm Aden Gun series. However, DEFA cartridges have significant priming and other differences, plus a higher muzzle velocity, which renders them incompatible with the 30 mm Aden gun counterparts. Nammo Raufoss A/S of Norway produces a 30 mm MultiPurpose (MP) round suitable for DEFA cannon. DEFA 30 mm ammunition is in production throughout the world, especially with nations receiving French defence export matèriel. More than 13,500 30 mm DEFA guns have been sold to 40 countries. The latest production model is the 30-550 F4 carried by the Mirage 2000 family. This gun has two rates of fire, 1,800 rds/min for air-to-air combat and 1,100 rds/min for air-to-surface fire missions. Description All 30 × 113 mm B DEFA rounds are fixed with the projectiles rigidly crimped to their J-type thermally treated steel cartridge cases, coated with a self-lubricating lacquer. The cartridge case has a raised belt just above the extraction rim. All projectiles have copper or gilding metal drive bands, although sintered iron may be encountered. Primers are electrical, using a special conductive compound which ensures correct powder ignition whatever the position of the round. The propellant used is approximately 50 g of a nitrocellulose-based multiperforated (19-hole) tubular propellant known as B.19.T and produced by SNPE. DEFA 30 × 113 mm B ammunition may be put into one of three groups; high-explosive, armour-piercing and practice. A further discrimination can be made between ammunition for air-to-air combat and air-to-ground use. Operating temperature limits are from -54 to +74ºC. Firing safety temperature limits are from -60 to +100ºC. Rounds are fed to the revolver loading mechanism on the Series 553/554 guns in belts using pressed steel links. The following 30 mm DEFA ammunition types are those originally produced by Matra Manurhin Defense, later known as Manurhin Defense and now part of Giat Industries. HE-I - type F 7572 Known as a `mine' (Obus Mine Explosif Incendiaire), the round in this air-to-air combat category is the 30 mm type F 7572, which utilises a cold drawn steel, thin-walled, flat-based projectile fitted with a nose-mounted MR3081 short delay fuze with muzzle and rain safety features. The projectile is filled with 50 g of high-temperature tolerant Hexal (RDX/Aluminium). The fuze has a self-destruct mechanism operating between 6 and 15 seconds after firing, using a pyrotechnic chain to time the self-destruct point. The HE-I projectile weighs 245 g, while a complete round weighs 441 g. Muzzle velocity is 810 m/s. The training round used to simulate the air-to-air HE-I is the 30 mm TP-T type F 2570. It is fitted with an inert nose plug, filled with an inert powder and matches the ballistics of the 30 mm HE-I projectiles exactly. Projectile weight is 245 g and the complete round weighs 452 g. There were two earlier versions of the HE-I round, which are no longer in production, the type F 7570 with an ML68 fuze and the HE-I type F 7571 with an MR381 fuze. HEI - type F 2270 This type of HE-I round is used in the air-to-ground role and is provided with a nose-mounted MR3001 impact fuze. At one time this round was known as an APHEI, with the AP referring to anti-personnel. It is filled with 30 g of high-temperature tolerant Hexal (RDX/Aluminium). There is no self-destruct mechanism. The HE-I projectile weighs 275 g, while the weight of a complete round is 490 g. Muzzle velocity is 775 m/s. The training round used to simulate this HE-I is the TP F 2270. It is fitted with an inert nose plug, filled with an inert substance and matches the ballistics of the air-to-ground HE-I projectile exactly. Projectile weight is 275 g and the complete round weighs 490 g. This round is no longer in series production having been replaced by the generally similar type F5272 with a high fragmentation projectile casing for anti-personnel applications. For this round the MR 3001 point detonating fuze is utilised. There are two earlier versions of air-to-ground HE-I round that are no longer in production, the OAPEI type F 5270 with an MRX70 fuze and the OAPEI type F 5271 with an MR31 fuze. SAPHEI type F 7670 Intended primarily for air-to-air combat, this round is known as the 30 mm type F 7670. It uses a thick-walled, heat-treated steel projectile with a blunt nose, covered by a light alloy windshield to retain a ballistic match with other rounds in the DEFA 30 mm family. The base of the projectile is occupied by a delayed action base fuze known as the MR3005, with an arming distance of 20 m from the muzzle and a self-destruct time between 6 and 15 seconds. When the fuze functions it detonates the explosive payload, which weighs 18 g, to create high-fragmentation effects behind the target armour. The projectile can penetrate up to 20 mm of armour. The weight of the projectile used with this round is 275 g and the weight of a complete round is 490 g. Muzzle velocity is 775 m/s. API-T - OPIT This round, no longer produced, is known as the 30 mm Mle 5970, and is intended for the air-to-ground attack of hard targets such as armoured vehicles. The projectile uses a cold drawn steel body with thin sidewalls, carrying a heat-treated special steel blunt nose slug that acts as the armour penetrator. It is capable of piercing approximately 20 mm of armour plate. The projectile nose is covered by a light alloy windshield to retain a ballistic match with the other rounds in the DEFA 30 mm family. The projectile body is filled with 20 g of an incendiary composition and a tracer element is mounted in the projectile base. The projectile used with this round weighs 275 g and the weight of a complete round is 490 g. Muzzle velocity is 765 m/s. This round is no longer in series production. TP-T - OXT This round acts as a general purpose training round for the 30 mm DEFA family. Known as the Mle F3170, it has a thick-walled steel body with an inert nose plug. The interior is hollow and empty and the base is occupied by the same tracer element assembly as that used on the 30 mm API-T (OPIT) Mle F5970. The projectile used with this round weighs 245 g and the weight of a complete round is 490 g. Muzzle velocity is 795 m/s. TP - OXL This round, the type F 2570, has an inert ballasted projectile. TP - OXAS The OXAS Practice round, the type F 2270, was developed to prevent fired training rounds ricocheting into aircraft following low-altitude flight patterns, it is also suitable for use where ground safety areas are restricted. The OXAS projectile has a steel body with a plastic nose cap that separates from the body on impact, thereby allowing the rest of the body to fragment, even at low angles of incidence. The OXAS projectile has the same ballistic characteristics as the SAPHEI combat round. The complete round weighs approximately 475 g and the projectile 275 g. MP Produced by Nammo Raufoss A/S of Norway, this 30 mm MP projectile will function reliably against a 2 mm dural plate at impact angles between 0 and 87º NATO, but will not function against a 0.5 mm dural plate in front of the gun muzzle. No fuze is involved as the MP projectile relies upon a drop safe pyrotechnic ignition train. When impacting against aircraft type targets, the projectiles will detonate approximately 300 mm within the target. The distribution of fragments is approximately 20º on each side of the line of fire; the fragments are heavy and optimised to defeat material type targets. The secondary incendiary effects will ignite JP4 and JP5 or heavy diesel oil in self-sealing tanks. Incendiary and blast effects are contained within the target. The length of the Nammo Raufoss 30 mm MP round is given as 199.88 mm and it weighs 440 g; projectile weight is 245 g. Muzzle velocity is 810 m/s. Authorised fuzes See text Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: HE-I (EINC), HE-I-SD (EINC-AD), AP (SPEINC), TP (EJ) Description: Manufacturers are Fabrica Militar `Fray Luis Beltran' of Santa Fe. Standard specifications BELGIUM Manufacturer FN HERSTAL SA Type: HE-I, SAPHEI, API-T, TP Description: No longer in production but may still be retained for service. Standard specifications BRAZIL Manufacturer Companhia Brasiliera de Cartuchos Type: HE-I, API, TP, TP-T Description: Standard specifications EGYPT Manufacturer Maasara Company for Engineering Type: HE-I (OMEI - GMET F 7570 A/C), TP-T (OXT - F 3170 A/A), TP (OXL - F 2570 A/A) Description: Standard specifications FRANCE Manufacturer Giat Industries Type: See text Description: See text GREECE Manufacturer Hellenic Arms Industry SA (EBO) Type: HE-I-SD, HE-I-SD-T, TP, TP-T Description: Round weight for all types is 435 g and projectile weight 244 g. Round length is 200 mm and muzzle velocity 810 m/s Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: HE, HE-I, TP Description: Standard specifications NORWAY Manufacturer Nammo Raufoss AS Type: MP Description: See text SINGAPORE Manufacturer Singapore Technologies Kinetics Type: HE-I, TP Description: Standard specifications SOUTH AFRICA Manufacturer Denel (pty) Ltd ( PMP ) Type: HE-I, HE-I-T, SAPHEI, APCI M1A1 , TP, TP-T Description: APCI M1A1 has a tungsten carbide core that can penetrate 50 mm of armour at 0º NATO at 200 m with strong after-penetration incendiary effects. SAPHEI stated to penetrate 25 mm of armour at 0º NATO at a range of 100 m. HE-I and HE-I-T are filled with Hexal P 30. Drive bands are sintered iron. Muzzle velocity for all types of round given as 820 m/s. Where appropriate fuze self-destruct time is given as 5 to 13 seconds. Tracing time is a minimum of 4 seconds. A reloading cartridge is also produced UNITED STATES OF AMERICA Manufacturer Alliant Techsystems Inc (ATK) Type: HE-I, HEDP, TP Description: See separate entry Manufacturer General Dynamics Land and Ordnance Systems Type: HEDP, TP Description: See separate entryRead More

Nammo

30 × 170 mm Oerlikon ammunition

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

30 × 170 mm Oerlikon ammunition

Armament HS 661 towed anti-aircraft gun; AMX-13 and AMX-30 twin self-propelled anti-aircraft guns; Flying Tiger (Biho) twin 30 mm self-propelled anti-aircraft gun system ( South Korea ); SABRE twin turret fitted in prototype form to AMX-10RC , AMX-30 , Chieftain and Steyr chassis; MBT TCM 30 twin naval mounting; Oerlikon Contraves GCM series of twin naval mountings; DS 30 B naval mounting; Emerlec 30 twin naval mounting. KCB ammunition can also be fired by 30 mm L21 RARDEN guns and RARDEN ammunition can be fired from KCB series cannon. Oerlikon Contraves, including Oerlikon Contraves Pyrotec, is now a member of Rheinmetall DeTec AG . Development When originally produced, the series of 30 mm automatic cannon now generally known as the Oerlikon Contraves 30 × 170 mm KCB series was designated the Hispano-Suiza HSS 831 L series. The designation was officially changed when Hispano-Suiza became part of Oerlikon Contraves AG but is often retained. The 30 mm cannon design involved was virtually a scaled-up version of the 20 mm Type KAD cannon and has been produced in several forms. Modified versions of the 30 × 170 mm Oerlikon ammunition family (with a longer 173 mm case) are used by the Oerlikon Contraves 30 mm KCA series of aircraft revolver cannon (see separate entry). Oerlikon Contraves Pyrotec AG's KCB ammunition family was used as the basis for the 30 mm RARDEN gun ammunition family, although 30 mm KCB ammunition can be fired from L21 RARDEN guns. Description Oerlikon Contraves Pyrotec AG 30 × 170 mm KCB rounds are fixed, with the steel projectiles rigidly fixed into the lacquered steel cartridge cases by crimping points which engage in cannelures on the projectile body. A single sintered iron drive band is used on the streamlined projectiles. The same 170.3 mm long necked cartridge cases are used for all types of round in the KCB family and are each filled with 160 g of an NC single-base propellant. A percussion primer is threaded into the base of the cartridge case. All types of projectile are ballistically matched and have a muzzle velocity of 1,080 m/s. Oerlikon Contraves Pyrotec AG's 30 mm KCB ammunition family includes the following rounds: HE-I The HE-I projectile is a thin-walled steel shell pressed from a steel blank by a technique ensuring high fragmentation. The filling is 40 g of Hexal P30 which, when detonated, has been demonstrated to produce an average of 1,133 fragments (of which only 0.05 g is dust) in addition to the blast and incendiary effects. The projectile nose is largely occupied by an impact nose fuze originally known as the Type F-831-L3, now the KZC-L3. The rain safe fuze has a muzzle safety distance of 20 m and self-destructs the projectile after approximately 6 to 11 seconds. The fuze functions at a delayed interval after impact to maximise the blast and fragmentation effects in the target. The explosive filling also produces an incendiary effect. HE-I-T This projectile is much the same as the HE-I but the base of the projectile is occupied by a tracer element so the explosive filling is reduced to 25 g of Hexal P30. After firing, the tracer burns for an average of 4 seconds, during which time the projectile will have reached a range of approximately 2,700 m. SAPHEI The projectile for this round is manufactured from tempered steel and has relatively thick walls. As the nose of the shell is blunt, for armour penetration efficiency it is covered by a light aluminium windshield to maintain the correct aerodynamic outline. The base of the projectile is occupied by a base impact fuze, known as the BZC-L5, which functions after a short delay following an impact to detonate 20 g of Hexal P30 inside the target armour. In this way blast, fragmentation and incendiary effects are added to the target penetration. The fuze provides projectile self-destruct after 6 to 11 seconds. TP This training round is a hollow steel shell containing an inert material. The nose fuze is replaced by an aluminium plug, with an outline corresponding to operational KCB rounds. TP-T This uses exactly the same projectile as the TP but the rear of the shell is occupied by a tracer element. After firing, the tracer burns for an average of 4 seconds, during which time the projectile will have reached a range of approximately 2,700 m. Authorised fuzes Integral - see text Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: HE-I (EINC-AD), HE-I-T-SD (EINC-T-AD), AP (SPEINC), TP-T (EJT) Description: Manufacturers are Fabrica Militar `Fray Luis Beltran' of Santa Fe. Standard specifications FINLAND Manufacturer Patria Vammas Oy Type: HEI, HEI-T, TP, TP-T Description: Standard specifications Produced by Vammas Defencetec Ltd FRANCE Manufacturer Giat Industries Type: HEI/SD, HEI-T/SD, TP, TP-T Description: Brass or steel cartridge cases. Operational rounds fitted with MR3002 PD fuze. Otherwise standard specifications GREECE Manufacturer Hellenic Arms Industry SA (EBO) Type: HE-I-SD, HE-I-SD-T, TP, TP-T Description: Standard specifications KOREA, SOUTH Manufacturer Daewoo Ammunition Corporation Type: HE-I, HE-I-T, TP-T Description: Standard specifications Manufacturer Poongsan Corporation Type: HEIT-SD K154, HEI-SD K155, TP-T K156, HEIT-PD K160, HEI-PD K161 Description: All these rounds are basically to standard specifications but the fuzes differ slightly (PD K515, SD K503) and arm after a distance of 18 m. SWITZERLAND Manufacturer Oerlikon Contraves Pyrotec AG Type: See text Description: See text Manufacturer Oerlikon Contraves Pyrotec AG Type: Break-Up Description: A practice round with the thin-walled plastic projectile filled with pressed iron powder which breaks up soon after leaving the muzzle. Production and sales rights taken over from NWM de Kruithoorn UNITED KINGDOM Manufacturer BAE Systems , Royal Ordnance Division Type: TP, TP-T, HE-I, HE-I-T, SAPHEI Description: Standard specificationsRead More

POONGSAN CORPORATION

Cartridge, 106 mm: HEAT, M344 and M344A1

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Cartridge, 106 mm: HEAT, M344 and M344A1

Armament M40A1 , M40A1C and M40A2 cannon. Development The 106 mm HEAT, M344 (originally the T119E11) and M344A1 were developed for use against armoured targets. These two 106 mm (actual calibre 105 mm) rounds differ in several respects, the most obvious being the types of cartridge case and propellant employed. There are also differences in the shaped charges involved. These rounds are no longer in the US inventory but are widely utilised elsewhere. Description The 106 mm HEAT M344 and M344A1 are fixed rounds with the projectiles rigidly secured to the perforated steel cartridge cases by eight equally spaced ball-point crimps. The projectile involved has two indexing buttons 180º apart on the forward bourrelet and a smooth drive band encircles the projectile just forward of the base. The HEAT M344A1 projectile has a thin-walled steel body containing a shaped charge with 1.265 kg of Composition B inside a conical copper liner; the design of the cone differs between the two types of round. The projectile nose cone adaptor carries a threaded conical cap acting as an ogive with a piezoelectric element connected by a wire to initiate the PIBD M509A1 or M509A2 fuze in the base. An aluminium chamber threaded to the projectile base supports the PIBD fuze, six folding fins and a piston assembly used to open the fins after firing. As the projectile is fired it is propelled along the barrel. The same propelling pressure builds up inside the piston assembly, so as soon as the projectile leaves the gun muzzle the piston moves to the rear to extend the six tailfins providing in-flight stabilisation. On impact with a target the piezoelectric element generates an electrical charge to initiate the PIBD fuze and detonate the projectile charge. The resultant detonation produces a high-velocity particle jet to penetrate the target armour. The M344 round uses an M93 or M93B1 perforated steel cartridge case; the M344A1 uses an M94B1 case. All types of case have an M57 percussion primer press fitted in the base; the M57 consists of a perforated steel tube containing a black powder priming charge and a brass bead. The M344 has a propelling charge of 3.67 kg of M10 propellant while the M344A1 uses M26 double-base, multiperforated granular propellant. In both instances the charge is contained in a rayon and plastic liner. The maximum effective range of both types of round is approximately 1,350 m, although the maximum possible range can be as high as 3,000 m. Muzzle velocity is 503 m/s. The M344A1 warhead can penetrate 150 mm of armour set at an angle of 60º. Authorised fuzes PIBD M509A1 or M509A2 Equivalent rounds ARGENTINA ARGENTINA Manufacturer Fábrica Militar Rio Tercero Type: FMK12 Mod 0 Description: Modification of M344A1 used with 105 mm Mod 1974 FMK1 Mod 1 RCL produced in Argentina . Weight is 14.7 kg with explosive weighing 1.2 kg. Muzzle velocity 514 m/s. Maximum effective range given as 2,000 m BRAZIL Manufacturer ENGEQUÍMICA Type: HEAT CTG MD1 Description: Standard US specifications Manufacturer FI Indústria e Comércio Ltda Type: HEAT Description: Described as under development CHINA , PEOPLE'S REPUBLIC Manufacturer China North Industries (NORINCO) Type: 105 mm HEAT-FS Description: This round uses a fin-stabilised projectile which is fired from the 105 mm Recoilless Rifle Type 75, a close copy of the US M40 ordnance. The round is 985 mm long and weighs 15.6 kg. The projectile weighs 7.96 kg, 1.26 kg of which is the RDX/TNT shaped charge. Muzzle velocity is 503 m/s and the warhead can penetrate 150 mm of armour set at an angle of 65º. Direct fire range is 580 m. An HE round weighing 21.6 kg and with a maximum range of 7,400 m is also available FRANCE Manufacturer Giat Industries Type: HEAT-T NR 160 Description: Originally produced in Belgium by PRB. Also known as the FSN 1315 C 650. Standard M344A1 specifications GREECE Manufacturer PYRKAL: Greek Powder and Cartridge Company Type: 106 I-HEAT Description: See following entry INDIA Manufacturer Indian Ordnance Factory Khamaria Jabalpur Type: 106 mm RCL HEAT Description: Similar to standard M344A1 but primer is No 13A and propellant charge is 3.61 kg of T-28. Fuze is BD 2B. Maximum range given as 3,110 m. Penetration at normal attack angle given as 600 mm ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: 106 I-HEAT Description: See following entry IRAN Manufacturer Defence Industries Organisation, Ammunition Group Type: HEAT Description: Complete round weight given as 16.25 kg and fitted with PIBD M509A1 fuze. Otherwise standard US specifications IRAQ Manufacturer State factories Type: 106 mm HEAT Description: Exact model not confirmed. May no longer be in production ITALY Manufacturer Simmel Difesa SpA Type: HEAT Description: Standard US specifications. Graze-fuzed HE-PFF round weighing 18.7 kg also produced; projectile weight is 9.89 kg KOREA, SOUTH Manufacturer Daewoo Corporation Type: HEAT-T M344A1 Description: Standard US specifications Manufacturer Poongsan Corporation Type: HEAT-T M344A1 Description: Standard US specifications PAKISTAN Manufacturer Pakistan Ordnance Factories Type: HEAT Description: Standard M344A1 specification but explosive charge is 1.247 kg RDX/TNT and case primer is Type P-6 Manufacturer National Development Complex Type: Improved HEAT Description: Local development. Has hardened projectile tip to punch through ERA prior to the main trumpet-shaped charge penetrating between 460 and 480 mm of RHA protected by the ERA. Projectile weight 6 kg and muzzle velocity 500 m/s SPAIN Manufacturer DEFEX SA Type: HEAT M344A1 Description: Standard US specifications Manufacturer SANTA BARBARA SA Type: HEAT Description: Standard US specifications TURKEY Manufacturer Makina ve Kimya Endüstrisi Kurumu ( MKEK ) Type: HEAT M344A1 Description: Standard US specifications. Weight of complete round given as 16.416 kgRead More

Simmel difesa

Cartridge, 105 mm: WP/Smoke, M60

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Cartridge, 105 mm: WP/Smoke, M60

Armament M101/M101A1, M102 (towed) and M108 (self-propelled) howitzers; Otobreda 105/14 Pack Howitzer (L5); RO Defence L119/M119A1 Towed Howitzer; Howitzer, Light, Towed: 105 mm KH178 ( South Korea ); Giat Industries LG1 Mk I and Mk II Light Gun and M101A1 Modernised (France); Type 75 self-propelled howitzer ( Japan ); NDSB SAKTI 105 mm Light Gun ( Malaysia ); RDM 105 mm M101/33 (Netherlands); 105 mm m/26 (Spain); T64 105 mm Howitzer ( Taiwan ); M101 Modified (Germany); 105 mm Howitzer M56 and M18/61 (Federal Republic of Yugoslavia ). Development The Cartridge, 105 mm: WP/Smoke, M60 was type classified in 1972, having been adapted from a 105 mm chemical agent (H or HD) M60 projectile type classified in 1958. It is intended for the production of screening and spotting smoke and has a secondary incendiary effect. Any remaining chemical agent-filled 105 mm M60 projectiles are scheduled for destruction. Chemical-filled M60 projectiles may contain 1.44 kg of H (Mustard agent) or 1.347 kg of HD (Distilled Mustard agent) in liquid form. The UK service designation for the 105 mm WP/Smoke M60 when fired from L119 Light Guns is Round, 105 mm, How, Smoke Bursting, WP, L42A2. Description The 105 mm Cartridge WP/Smoke M60 is a semi-fixed round with the projectile being a free fit in the cartridge case, allowing free access to the propellant increments inside the case. The projectile is a hollow steel forging with a boat-tailed base and a welded base cover, a streamlined ogive and a single gilding metal driving band. The shell is fitted with a steel bush adaptor, which is brazed into position to provide a surface for sealing the forward end of the press-fitted burster casing; it also provides a well for the fuze. On the M60 the adaptor is machined to accept a tubular steel M5 burster casing located towards the base of the shell body; the burster charge is approximately 113 g of Tetrytol in pellet form. The shell filling consists of 1.737 kg of cast White Phosphorus (WP) although other smoke producing substances such as titanium tetrachloride have been employed. The shell normally operates on impact when the point detonating or MTSQ nose fuze initiates a small charge under the fuze and creates a flash to ignite the burster charge. The burster charge is sufficient to rupture the shell body to release the WP filling which, on contact with the atmosphere, creates a dense white smoke cloud. The 105 mm WP/Smoke M60 uses a steel burster casing for the M5 burster containing Tetrytol. The only fuze that can be accommodated is the PD M557. The M60A1 has a high-strength aluminium burster casing for the M53 burster containing Composition A5. Fuzes that can be used include the PD M557 and the MTSQ M564. The M60A2 is the same as the M60A1 but the burster is changed to the M53A1 . The cartridge case is of the M14 type. The standard M14 is manufactured using 70:30 brass but other materials have been used and may still be encountered; for example the M14B1 used copper-plated drawn steel while the M14B4 is a three-piece spiral-wrapped lacquered steel case. The base-mounted percussion primer is pressed into place and may be one of several types including the M1B1A2, M28A2 (brass), M28B2 (steel) or M1A2 . The cartridge case contains the M67 propelling charge. This consists of seven M1 dualgran propellant increments, packed in individually numbered cloth bags threaded together in numerical order on a length of silk or acrylic twine. Before loading, the required increments are arranged inside the case with the No 1 increment, the base charge, at the bottom and the No 7 increment located towards the case mouth. The other increments are arranged around the walls of the case and around the primer tube. Charge 1 is the base charge consisting of 238.42 g of propellant M1 (small size). Charge 2 consists of Charge 1 plus a 41.11 g increment of propellant M1 (small size). Nominal charge weight is 279.53 g. Charge 3 consists of Charge 2 plus a 70.87 g increment of propellant M1 (large size). Nominal charge weight is 350.4 g. Charge 4 consists of Charge 3 plus a 96.39 g increment of propellant M1 (large size). Nominal charge weight is 446.79 g. Charge 5 consists of Charge 4 plus a 153.09 g increment of propellant M1 (large size) and a sheet of lead which functions as a decoppering agent. Nominal charge weight is 599.88 g. Charge 6 consists of Charge 5 plus a 243.81 g increment of propellant M1 (large size). Nominal charge weight is 843.69 g. Charge 7 consists of Charge 6 plus a 369.89 g increment of propellant M1 (large size). Total nominal charge weight is then 1.241 kg. Ballistic data for the 105 mm WP/Smoke M60 when fired from 105 mm M101/M101A1 howitzers is as follows: Charge 1 - MV 198.1 m/s - max range 3,510 m Charge 2 - MV 216.4 m/s - max range 4,110 m Charge 3 - MV 237.7 m/s - max range 4,860 m Charge 4 - MV 266.7 m/s - max range 5,950 m Charge 5 - MV 310.9 m/s - max range 7,650 m Charge 6 - MV 376.4 m/s - max range 9,380 m Charge 7 - MV 472.4 m/s - max range 11,270 m. Ballistic data for the 105 mm WP/Smoke M60 when fired from 105 mm M102 howitzers is as follows: Charge 1 - MV 205 m/s - max range 3,700 m Charge 2 - MV 223 m/s - max range 4,300 m Charge 3 - MV 247 m/s - max range 5,200 m Charge 4 - MV 278 m/s - max range 6,300 m Charge 5 - MV 325 m/s - max range 8,100 m Charge 6 - MV 393 m/s - max range 9,600 m Charge 7 - MV 494 m/s - max range 11,500 m. Range data for the 105 mm L119/M119A1 Towed Howitzer when firing the WP/Smoke M60 is as follows: Charge 1 - range 1,800 to 3,400 m Charge 2 - range 2,100 to 4,100 m Charge 3 - range 2,600 to 4,800 m Charge 4 - range 4,100 to 6,300 m Charge 5 - range 4,200 to 7,900 m Charge 6 - range 5,000 to 9,500 m Charge 7 - range 6,200 to 11,500 m. Authorised fuzes PD M557 and M739; MTSQ M564 Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Humoso Incendario (HINC) Description: Standard US specifications. Used with Otobreda 105/14 Pack Howitzer AUSTRALIA Manufacturer Office of Defence Production Type: 105 mm WP/Smoke M60 Description: Standard US specifications. Used with Otobreda 105/14 Pack Howitzer BELGIUM Manufacturer PRB SA Type: 105 mm Smoke NR 144 Description: Standard US specifications but weight complete given as 20 kg. No longer in production but in widespread service BRAZIL Manufacturer ENGEQUÌMICA Type: 105 mm Smoke/WP CTG MD1 Description: Standard US specifications FRANCE Manufacturer Giat Industries Type: 105 mm WP M60 Description: Standard US specifications GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: 105 mm Smoke/WP M60 Description: Standard US specifications. Issued with PD M557 fuze fitted IRAN Manufacturer Defence Industries Organisation, Ammunition Group Type: 105 mm Smoke Description: Fitted with PD M55A5 or M557 fuze. Standard US specifications ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: 105 mm WP/Smoke M60A2 Description: Standard US specifications ITALY Manufacturer Simmel Difesa SpA Type: 105 mm Smoke Description: Standard US specifications KOREA, SOUTH Manufacturer Daewoo Corporation Type: 105 mm WP/Smoke M60 Description: Standard US specifications. Issued fitted with PD M557 fuze NETHERLANDS Manufacturer Eurometaal NV Type: 105 mm Smoke/WP Description: Stated to be equivalent to 105 mm WP/Smoke M60 PAKISTAN Manufacturer Pakistan Ordnance Factories Type: 105 mm Smoke Description: Standard US specifications. Fitted with PD M557 fuze. Weight of complete round given as 19.77 kg and filled with 1.85 kg of White Phosphorus (WP) or 1.95 kg of tetryl pellets. Brass cartridge case is fitted with P-1 Mark 3 percussion primer PORTUGAL Manufacturer INDEP - Industrias Nacionais de Defesa Type: 105 mm WP/Smoke M60 Description: Standard US specifications SPAIN Manufacturer Barreiros Hermanos Internacional SA Type: 105 mm Smoke/WP M60 Description: Standard US specifications Manufacturer EXPAL SA Type: 105 mm Smoke/WP ME60A1 Description: Standard US specifications. Contains 1.75 to 1.8 kg of WP. May be fitted with PPD 440 proximity fuze Manufacturer FOREX SA Type: 105 mm Smoke/WP Description: Standard US specifications UNITED STATES OF AMERICA Manufacturer Scranton Army Ammunition Plant Type: 105 mm Smoke/WP Description: Standard specifications YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: 105 mm Smoke/WP M60 Description: Essentially the same as WP/Smoke M60 . For 105 mm M56 and M18/61 howitzers (a modernised version of the Second World War German 105 mm leFH 18), it is fired using a seven-charge propellant system plus a Super Charge. Maximum possible muzzle velocity is 570 m/s and maximum range 13,000 m, although the normal muzzle velocity is given as 491 m/s and maximum range 11,620 m. Complete round weight given as 20.049 kg and projectile weight 15.8 kg. May no longer be in productionRead More

Simmel difesa

Cartridge, 40 mm: L/60 HE-T

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Cartridge, 40 mm: L/60 HE-T

Armament All 40 mm L/60 Bofors Guns. Development The 40 mm L/60 HE-T is the base round for the entire Bofors 40 mm L/60 anti-aircraft gun family. It has its origins in a 1925 Swedish Navy requirement for a projectile that could virtually guarantee a `one hit, one kill' performance against aircraft targets. The original requirement was for a 20 mm projectile and gun but it was almost immediately realised that this calibre was too small to ensure the required performance. Bofors AB then proceeded to double the calibre of the projectile to 40 mm and developed an automatic gun to fire the ammunition. The result was the famous and widely used Bofors Gun, the 40 mm L/60, the prototype of which was first fired in 1930. The 40 mm L/60 was produced in huge numbers before and during the Second World War and still remains in front-line service with many armed forces (land and naval) to this day. The 40 mm L/60 ammunition has been produced on a corresponding scale. Over the years the basic 40 mm L/60 HE-T round has undergone many changes in filling, fuzing, propellant and materials but remains much the same in appearance as the original design. The following Description outlines the current Bofors AB data. For many years 40 mm L/60 HE-T ammunition was produced by LIAB (Lindesbergs Industri AB) which became part of Bofors AB. The 40 mm L/60 HE-T round is still in production and remains available from Bofors on request. Many other manufacturers produce the round on a regular basis, often referring to it as HE-I or HE-I-T. Although 40 mm L/60 HE-T rounds were made in huge quantities in the USA for many years, during and since the Second World War, they are no longer in production in that nation other than to special order. Description The 40 mm L/60 HE-T is a fixed round with a brass cartridge case and a streamlined boat-tailed projectile, the body is made of a special high-fragmentation steel. The cartridge case is crimped rigidly to the projectile by one or two 360º crimping bands; weapons using automatic feed systems or guns with increased rate of fire modifications should use double-crimped ammunition. A copper drive band (gilding metal has been used) encircles the projectile just above the cartridge case/projectile junction. Rounds are usually fed into the gun in four-round charger clips. The Bofors 40 mm L/60 HE-T projectile is filled with 92 g of Hexotonal, comprising 42 per cent TNT, 40 per cent RDX, 15 per cent aluminium powder and 3 per cent desensitiser. Many other fillings have been used, for example the US HE-T, SD, MV2 700 contains approximately 63.5 g of tetryl. The base of the projectile contains a tracer element which burns for 5 seconds after firing. The nose of the projectile may be threaded to accept fuzes with UK, US and Bofors threads. Typical Swedish fuzes for the 40 mm L/60 HE-T include the Type LI 460 PD, which functions against 2 mm dural at impact velocities as low as 350 m/s and self-destructs after 12 seconds (on some HE-T projectiles the end of the tracer burn initiates the self-destruct process). The LI 460 PD uses a UK fuze well thread. The similar LI 462 PD has Bofors threads while the LI 463 PD has US threads. All three fuzes have a tropical rain safety. The LI 465 is similar but will delay arming until the projectile has travelled 55 m. The LI 466 PD also has the arming device plus an integral post-impact device that delays detonation by 0.3 µs; The LI 473 is generally similar. The brass cartridge case, which can be reused several times if required, has a semi-rimmed base and is fitted with a percussion primer with a sinoxide detonator. Propellant loads vary from manufacturer to manufacturer but the Bofors AB HE-T uses approximately 320 g of NC 1066 single-base low-erosion propellant, producing a muzzle velocity of 860 m/s. As a further rough guide to other similar HE-T rounds, the US MK 2 or MK 3 cartridge case contains approximately 326 g of M1 propellant. This produces a muzzle velocity of 879 m/s. The training equivalent to the 40 mm L/60 HE-T is the 40 mm L/60 TP or TP-T. It has the same ballistic, weight and dimensional characteristics as the HE-T but either lacks any filling or is filled with an inert HE substitute. It is fitted with an inert or dummy PD fuze. The US 40 mm TP-T is the Cartridge, 40 mm: TP-T, M91 . Drill rounds are available, for example the US Cartridge, 40 mm: Dummy, M25. Authorised fuzes Bofors AB fuzes: PD LI 460, 462, 463, 465, 466, 473 American fuzes: PD MK 27/M3 or M3A1 , M27, M71/MK 11 or MK 11 Mod 2 Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: 40 mm FMK 3 MOD 0 ET Description: Standard specifications. TP-T FMK MOD 0 EJT also produced BELGIUM Manufacturer FN HERSTAL SA Type: FN 116 HE-I-T, FN 117 HE-I-T-SD Description: Standard specifications. No longer in production but may be retained in service. FN 114 TP-T also produced BRAZIL Manufacturer ENGEQUÍMICA Type: 40G HE-T CTG MD1 Description: Standard specifications. TP-T also produced Manufacturer FI Indústria e Comércio Ltda Type: HE-T, HE-I-T Description: Standard specifications. TP-T also produced EGYPT Manufacturer Maasara Company for Engineering Type: HE-T Description: Standard specifications FRANCE Manufacturer Giat Industries Type: HE-I, HE-I-T Description: Filled with 82 g Hexal. Projectile weight 910 g. Muzzle velocity approximately 880 m/s. Fitted with PD MR 4061 or MK 27 fuze. TP and TP-T also produced GERMANY Manufacturer Diehl-Wehrtechnik Type: HE-I-T Description: Standard specifications. TP-T also produced GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: HE-T Description: Fitted with LI 465 PD SD fuze. Otherwise standard specifications. TP-T also produced ITALY Manufacturer Simmel Difesa SpA Type: HE-T, HE-I-T Description: Standard specifications. Explosive filling is TNT. TP and TP-T also produced KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: HE-I-T MK 2 Description: Equivalent to US MK 2. Fitted with MK 27 fuze. TP-T M19 also produced NETHERLANDS Manufacturer Eurometaal NV Type: HE-T Description: Standard specifications. TP-T also produced PAKISTAN Manufacturer Pakistan Ordnance Factories Type: HE-T Description: Standard specifications. Fitted with PD No 255 Mark 4 fuze SOUTH AFRICA Manufacturer Denel (Pty) Ltd Type: HE, HE-T Description: Standard specifications SPAIN Manufacturer FAEX: Fabricaciones Extrameñas SA Type: HE-I, HE-I-T Description: Standard specifications. TP-T also produced SWEDEN Manufacturer Bofors AB Type: L/60 HE-T Description: Production as required. Standard specifications as in text. TP-T also available SWITZERLAND Manufacturer Oerlikon Contraves Pyrotec AG Type: 40 mm L/60 Break-Up Description: See separate entry UNITED STATES OF AMERICA Manufacturer Government Arsenals Type: HEI-T MK 2 Description: No longer in production but may be widely encountered. Weight of complete round is 2.15 kg with the projectile containing 60 g of TNT. Length is 447 mm; MV 879 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: HE-I-T, HE-T, TP-T Description: May no longer be in production. Standard specificationsRead More

Simmel difesa

Cartridge, 40 mm: L/60 AP-T

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Cartridge, 40 mm: L/60 AP-T

Armament All 40 mm L/60 Bofors Guns. Development The 40 mm L/60 AP-T round was originally developed just prior to or during the Second World War, providing the Bofors 40 mm L/60 anti-aircraft gun with a capability to defeat armoured land targets. It is still deployed to penetrate the protection carried by many modern strike aircraft and helicopters. Description The 40 mm L/60 AP-T round has the same ballistic properties as the 40 mm L/60 HE-T but does not carry explosive or fuze. The penetrator is made from forged hardened steel with a nose cap of cold rolled steel and it is provided with a copper drive band. The nose of the penetrator is covered by a thin steel windshield crimped onto the penetrator body, or joined to it by an adaptor to provide a smooth streamlined outline. The base of the penetrator is machined to accept a tracer element which burns for at least 4 seconds after firing. The cartridge case is crimped rigidly to the projectile by one or two 360º crimping bands; weapons using automatic feed systems or guns with increased rate of fire modifications should use double-crimped ammunition. The brass cartridge case, which can be reused several times if required, has a semi-rimmed base and is fitted with a percussion primer with a sinoxide detonator. Propellant loads vary from manufacturer to manufacturer, but the Bofors 40 mm L/60 AP-T uses approximately 320 g of NC 1066 single-base low-erosion propellant, producing a muzzle velocity of 860 m/s. As a further rough guide to other similar 40 mm L/60 AP-T rounds, the US M81 and M81A1 AP-T round cartridge case (the M25 or M25B1) contains approximately 295 g of M1 propellant. This produces a muzzle velocity of 875 m/s. On impact with the target the steel windshield crumples to allow the penetrator to pierce the target armour. The Bofors 40 mm L/60 AP-T can penetrate 40 mm of armour plate set at an angle of 60º at a distance of 100 to 150 m. Authorised fuzes None involved Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: 40 mm FMK 2 MOD 0 EJT Description: Standard specifications BELGIUM Manufacturer FN HERSTAL SA Type: FN 110 AP-T Description: Standard specifications. No longer in production but may be retained in service BRAZIL Manufacturer FI Indústria e Comércio Ltda Type: AP-T Description: Standard specifications FINLAND Manufacturer Patria Vammas Oy Type: AP-T Description: Standard specifications. Cartridge cases made by OY Hackman AB FRANCE Manufacturer Giat Industries Type: AP-T Description: Projectile weight 888 g. Muzzle velocity approximately 880 m/s GERMANY Manufacturer Diehl-Wehrtechnik Type: AP-T Description: Standard specifications GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: AP-T Description: Standard specifications SWEDEN Manufacturer Bofors AB Type: L/60 AP-T Description: No longer in production. Standard specifications, see text UNITED STATES OF AMERICA Manufacturer Government arsenals Type: AP-T M81 and M81A2 Description: No longer in production but may be widely encountered. Complete round weight is 2.08 kg and length 447 mm. MV 875 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: AP-T Description: May no longer be in production. Standard specificationsRead More

Cartridge, 105 mm: HE M1

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Cartridge, 105 mm: HE M1

Armament M101/M101A1, M102 (towed) and M108 (self-propelled) howitzers; Otobreda 105/14 Pack Howitzer (L5); RO Defence L119/M119A1 Towed Howitzer; Howitzer, Light, Towed: 105 mm KH178 ( South Korea ); Giat Industries LG1 Mk I and Mk II Light Gun and M101A1 Modernised (France); Type 75 self-propelled howitzer ( Japan ); NDSB SAKTI 105 mm Light Gun ( Malaysia ); RDM 105 mm M101/33 (Netherlands); 105 mm m/26 (Spain); T64 105 mm Howitzer ( Taiwan ); M101 Modified (Germany); 105 mm Howitzer M56 and M18/61 (Federal Republic of Yugoslavia ). Development The 105 mm Cartridge HE M1 is one of the oldest serving of all modern artillery rounds, as its origins can be traced back to the Westervelt Board convened by the USA in 1919 to report on the lessons of the Great War. The advisory board recommended the development of a 105 mm howitzer, later accepted for service as the M1 in 1928. After further development the 105 mm M1 howitzer reached the M2 stage which was accepted for mass production along with an associated round, the HE M1. When the M2 howitzer was later redesignated the M101 , the HE round remained the M1. The 105 mm HE M1 served the US armed forces from 1941 onwards and is still in service with them, their latest weapon procured to fire the 105 mm HE M1 being the Royal Ordnance (now BAE Systems , RO Defence) M119A1 Towed Howitzer. The 105 mm HE M1 continues to serve with many other nations and is still widely produced, having attained the distinction of virtually becoming the `standard' 105 mm HE round. Metal parts for US 105 mm HE M1 projectiles are manufactured at the Scranton Army Ammunition Plant operated by Chamberlain Manufacturing. The UK service designation for the 105 mm HE M1 when fired from L119 Light Guns is Round, 105 mm, How, HE L41A2. The M1 (Mod) round for the USAF is made by converting standard M1 rounds under contract from the US Army Operations Support Command. In October 2001 the Army announced a requirement for the conversion of 49,998 rounds. Description The 105 mm Cartridge HE M1 is a semi-fixed round with the projectile being a free fit in the cartridge case to allow free access to the propellant increments inside the case. The projectile is a hollow high-tensile steel forging with a boat-tailed base and a welded base cover, a streamlined ogive and a single gilding metal driving band. The projectile may have either a normal or deep cavity, formed or drilled into the explosive filling beneath the fuze well to accept whatever fuze is to be employed. For example a deep cavity projectile for long intrusion fuzes may be loaded with 2.087 kg of Composition B or 1.93 kg of cast TNT, plus a supplementary charge consisting of 136 g of TNT pressed into an aluminium liner found below the nose-located fuze well. Shells have been filled with RDX/WX6 or RDX/WX8. Normal cavity projectiles are packed either with a fuze or a closing plug in place of a fuze. Deep cavity projectiles may be packed with the supplementary charge and a fuze, the supplementary charge and a closing plug, or with a closing plug only. A groundburst detonation of a 105 mm HE M1 projectile will result in a lethal area covering from 288 to 290 m 2 . The cartridge case is of the M14 type. The standard M14 is manufactured using 70:30 brass but other materials have been used and may still be encountered; for instance the M14B1 used copper-plated drawn steel while the M14B4 is a three-piece spiral wrapped lacquered steel case. The base-mounted percussion primer is pressed into place and may be one of several types including the M1B1A2, M28A2 (brass), M28B2 (steel) or M1A2 . The primers most commonly encountered are the M28A2 (containing 150 g of black powder) and the M28B2 (122.5 g). The cartridge case contains the M67 propelling charge. This consists of seven M1 dualgrain propellant increments packed in individually numbered cloth bags, threaded together in numerical order on a length of silk or acrylic twine. (Older types of charges used single-granulation M1 propellant). Before loading, the required increments are arranged inside the case with the No 1 increment, the base charge, at the bottom and the No 7 increment located towards the case mouth. The others are arranged around the walls of the case and around the primer tube. Charge 1 is the base charge consisting of 238.42 g of propellant M1 (small size). Charge 2 consists of Charge 1 plus a 41.11 g increment of propellant M1 (small size). Nominal charge weight is 279.53 g. Charge 3 consists of Charge 2 plus a 70.87 g increment of propellant M1 (large size). Nominal charge weight is 350.4 g. Charge 4 consists of Charge 3 plus a 96.39 g increment of propellant M1 (large size). Nominal charge weight is 446.79 g. Charge 5 consists of Charge 4 plus a 153.09 g increment of propellant M1 (large size) and a sheet of lead which functions as a decoppering agent. Nominal charge weight is 599.88 g. Charge 6 consists of Charge 5 plus a 243.81 g increment of propellant M1 (large size). Nominal charge weight is 843.69 g. Charge 7 consists of Charge 6 plus a 369.89 g increment of propellant M1 (large size). Total nominal charge weight is then 1.241 kg. Ballistic data for the 105 mm HE M1 when fired from M101/M101A1 howitzers is as follows: Charge 1 - MV 198.1 m/s - max range 3,510 m Charge 2 - MV 216.4 m/s - max range 4,110 m Charge 3 - MV 237.7 m/s - max range 4,860 m Charge 4 - MV 266.7 m/s - max range 5,950 m Charge 5 - MV 310.9 m/s - max range 7,650 m Charge 6 - MV 376.4 m/s - max range 9,380 m Charge 7 - MV 472.4 m/s - max range 11,270 m. Ballistic data for the 105 mm HE M1 when fired from M102 howitzers is as follows: Charge 1 - MV 205 m/s - max range 3,700 m Charge 2 - MV 223 m/s - max range 4,300 m Charge 3 - MV 247 m/s - max range 5,200 m Charge 4 - MV 278 m/s - max range 6,300 m Charge 5 - MV 325 m/s - max range 8,100 m Charge 6 - MV 393 m/s - max range 9,600 m Charge 7 - MV 494 m/s - max range 11,500 m. Range data for the L119/M119A1 Towed Howitzer when firing the 105 mm HE M1 is as follows: Charge 1 - range 1,800 to 3,400 m Charge 2 - range 2,100 to 4,100 m Charge 3 - range 2,600 to 4,800 m Charge 4 - range 4,100 to 6,300 m Charge 5 - range 4,200 to 7,900 m Charge 6 - range 5,000 to 9,500 m Charge 7 - range 6,200 to 11,500 m. The training round used most commonly as the equivalent to the 105 mm HE M1 is the Cartridge, 105 mm, TP, M67. The projectile used with this round (which is painted blue) contains 1.76 kg of an inert explosive substitute and is fitted with a dummy fuze. The complete round weighs 16.81 kg and the maximum muzzle velocity is 381 m/s. A TP-T version of the M67 has been produced. A completely inert drill round is known as the Cartridge, 105 mm: Dummy, M14 . It cannot be fired and is fitted with a PD Dummy M59 fuze. RO Defence produce Shell, 105 mm, How, Practice Flash Indicating RO 37-05 for practice firing as the equivalent of the HE M1 projectile. The RO 37-05 is hollow and uses a Flash Indicator Unit B118 in the base to produce flash and smoke for spotting purposes on impact. See separate entry for details. The M1 (Mod) round is created by reworking M1 rounds in the US Army inventory for use in USAF AC-130 gunships. The M14B4 cartridge case is removed and replaced by an M14 brass case, propellant replaced as needed after inspection and an FMU-153/B PD/delay fuze installed. Authorised fuzes The following are for use with M101/M101A1, M102 (towed) and M108 (self-propelled) howitzers: PD - M51A5, M78 series, M439, M508 series, M535, M557, M739 MTSQ - M520 series, M500 series, M564, M582 Prox - M513 series, M728 (both require removal of the supplementary charge, if present, and cannot be fired using Charge 7), M732 The M1 (Mod) round used in AC-130 gunships employs the FMU-153/B PD/delay fuze. Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Explosivo de Fragmentacion (EF) Description: Standard US specifications. Used with Otobreda 105/14 Pack Howitzer AUSTRALIA Manufacturer Office of Defence Production Type: 105 mm HE M1 Description: Standard US specifications. Used with Otobreda 105/14 Pack Howitzer BOSNIA-HERZEGOVINA Manufacturer Ministry of Defence, Department of Defence Industry Type: 105 mm HE M1 Description: Standard US specifications. BRAZIL Manufacturer ENGEQUÌMICA Type: 105 mm HE M1 CTG MD1 (brass case) and MD1A1 (steel case) Description: Standard US specifications Manufacturer FI Indústria e Comércio Ltda Type: HE M1 Description: Standard US specifications. Produced with both M14 and M14B4 cartridge cases. Can be supplied fitted with PD M557 fuze CANADA Manufacturer SNC Industrial Technologies Inc (SNC TEC) Type: Cartridge 105 mm HE M1 Description: Overall, same as HE M1 but supplementary charge is 140 g of Composition A-3. Primer is M28 CHILE Manufacturer FAMAE Type: Municion de Artilleria Cal 105 mm (HE M1) Description: Standard US specifications. Supplied fitted with PD M557 or M739 fuze. A base-bleed version is reported to be under development CHINA , PEOPLE'S REPUBLIC Manufacturer China North Industries (NORINCO) Type: 105 mm HE Description: Projectile weight given as 18.12 kg with length 789 mm. Filled with 2.31 kg of Composition B or 2.18 kg of TNT. Muzzle velocity 494 m/s. May be fitted with standard NATO fuzes. No other information available although stated to be compatible with standard NATO howitzers FRANCE Manufacturer Giat Industries Type: HE M1 Description: Standard US specifications. M67 charge system also produced GREECE Manufacturer Hellenic Arms Industry (EBO) Type: 105 mm HE M1 Description: Standard US specifications Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: 105 mm HE M1 Description: Standard US specifications. Filled with 2.09 kg of cast TNT and issued with PD M557 fuze fitted IRAN Manufacturer Defence Industries Organisation, Ammunition Group Type: 105 mm HE Description: Fitted with PD M55A5 or M557 fuze. Standard US specifications IRAQ Manufacturer State factories Type: 105 mm HE (semi-fixed) Description: Believed to be HE M1. May no longer be in production ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: 105 mm HE M1 Description: Standard US specifications. Supplied fitted with PD M557 or PD M739 fuze. M67 propelling charge also produced ITALY Manufacturer Simmel Difesa SpA Type: 105 mm HE Description: Standard US specifications, although projectile weight given as 15 kg KOREA, SOUTH Manufacturer Daewoo Corporation Type: 105 mm HE M1 Description: Standard US specifications Manufacturer Korea Explosives Company Type: 105 mm HE M1 Description: Standard US specifications Manufacturer Poongsan Corporation Type: 105 mm HE M1 Description: Standard US specifications. Supplied fitted with M557 fuze MALAYSIA Manufacturer SME Ordnance Sdn Bhd Type: Round 105 mm HE M1 PH Description: Standard US specifications. Fitted with PD M739 fuze. Produced for licence-produced NDSB SAKTI 105 mm Light Gun (equivalent to Royal Ordnance L119/M119A1) NETHERLANDS Manufacturer Eurometaal NV Type: 105 mm HE Description: Stated to be equivalent to 105 mm HE M1. Extended range ERM1 also available - see separate entry PAKISTAN Manufacturer Pakistan Ordnance Factories Type: 105 mm Howitzer HE Description: Standard US specifications. Fitted with PD M557 fuze. Complete rounds weight given as 19.07 kg and filled with 2.13 kg of TNT PORTUGAL Manufacturer Explosivos da Trafaria SA Type: 105 mm HE M1 Description: Standard US specifications Manufacturer INDEP - Industrias Nacionais de Defesa Type: 105 mm HE M1 Description: Delivered with PD M557 fuze installed but may also be encountered with PD M51A5 or M739. Also available with MTSQ M520A1 or M564. Complete round weight given as 19.02 kg filled with 2.2 kg of TNT SPAIN Manufacturer Barreiros Hermanos Internacional SA Type: 105 mm HE M1 Description: Standard US specifications Manufacturer EXPAL SA Type: 105 mm HE M1 Description: Standard US specifications. Filled with Composition B or TNT. Available with PD M557 or M739 fuzes. 105 mm ER HPER (High-Performance Extended Range) projectile also available - see separate entry Manufacturer FOREX SA Type: 105 mm HE M1 Description: Standard US specifications Manufacturer SANTA BARBARA SA Type: 105 mm Howitzer HE Description: Standard US specifications TAIWAN Manufacturer Hsing-Hua Company Ltd Type: 105 mm HE M1 Description: Standard US specifications TURKEY Manufacturer Makina ve Kimya Endüstrisi Kurumu ( MKEK ) Type: 105 mm HE M1 Mermisi Description: Standard US specifications. Filled with 1.982 kg TNT. Offered fitted with PD M51A5 or M557 fuze or unspecified Proximity fuze. UNITED KINGDOM Manufacturer BAE Systems , RO Defence Type: Round 105 mm How HE Training L65 Description: Equivalent to the 105 mm HE M1, intended for low cost training and firing from 105 mm Light Gun L119 and M101 33 - or 34-calibre upgraded guns. It contains 2.2 kg of RDX/TNT. Maximum range when fired from the L119 using Increment 6 is 9,400 m UNITED STATES OF AMERICA Manufacturer Scranton Army Ammunition Plant Type: 105 mm HE M1 Description: Standard specifications YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: 105 mm HE M1 Description: Essentially the same as HE M1. For 105 mm M56 howitzer, from which it is fired using a seven-charge propellant system plus a Super Charge. Maximum muzzle velocity is 570 m/s and maximum range 13,000 m. May no longer be in productionRead More

Simmel difesa

Giat 105 mm HE - OE 105 F1

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Giat 105 mm HE - OE 105 F1

Armament CN105F1 series tank guns; 105 mm 105 G2 gun; 105 mm 105 G1 gun; all 105 mm L7, Rh 105 and M68 series tank guns and South African GT7 tank gun. Development The 105 mm HE OE 105 F1 is a general purpose high-explosive shell. It is stated to have a similar on-target performance to the US 105 mm HE M1, scattering fragments over a lethal radius of 15 to 20 m. The OE 105 F1 has been referred to as the OC 105 or OE Mle 60, and is sometimes designated as a Fragmentation round. This round is no longer in production. Description The 105 mm HE OE 105 F1 is a fixed round, with the projectile rigidly secured to the brass or steel cartridge case by a single crimping ring. This engages in a pronounced cannelure on the projectile just to the rear of the copper or gilding metal drive band. The projectile, sometimes referred to as the OE Mle 60, is steel and is filled with 2 kg of Hexolite 50:50. A point detonating FUI 56 fuze is threaded into the nose fuze well; the PD M51 may also be used. The round uses an Mle F2 brass or steel cartridge case (of the M148 or M150 type - length 617 mm) with a TPA electrical primer in the base. The charge is a nominal 2.4 kg of multiperforated LB-7 T-70 single-base propellant. The propellant load produces a muzzle velocity of 700 m/s. The reduced power round uses a shorter (531 mm) brass or steel cartridge case with straight sides. It uses the same propellant charge so that the resultant muzzle velocity is also 700 m/s. The 105 mm HE OE 105 F1 produces a muzzle velocity of 700 m/s and has the following ballistic characteristics: Range Time of flight Remaining velocity 1,000 m 1.54 s 601 m/s 1,500 m 2.4 s 555 m/s 2,000 m 3.34 s 512 m/s 2,500 m 4.36 s 470 m/s A practice round known as the PLPN is produced as the training equivalent for the OE 105 F1. Authorised fuzes BD FUI 56 or M51 Equivalent rounds ARGENTINA ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: 105 mm EF Description: Standard specifications for reduced power round for 105 mm 105 G1 gun on AMX-13 FRANCE Manufacturer Giat Industries Type: 105 mm OE Description: See text SPAIN Manufacturer SANTA BARBARA SA Type: OE 105 F2 Description: Standard specifications for full power round. Uses brass cartridge caseRead More

0.22 in Long Rifle

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

0.22 in Long Rifle

Synonyms 5.5 × 15R Armament All 0.22 rifles and pistols except those specifically chambered for 0.22 Short cartridges. Development The 0.22 Long Rifle rimfire cartridge was developed in 1887 by the J Stevens Arms & Tool Company of the USA. The existing 0.22 Long cartridge was used and fitted with a 0.324 g powder charge and a 2.59 g lead bullet instead of the conventional 1.88 g bullet. It was probably first commercially manufactured by the Union Metallic Cartridge Company in 1888. The first high-velocity loadings were developed by Remington in 1930. Over the years it has become the most highly developed and accurate of all rimfire cartridges, and is generally found with either 2.59 g solid lead or 2.4 g hollow point bullets, although innumerable variations can be found. In military hands this cartridge is almost invariably used for training purposes, though clandestine agencies, resistance forces, Special Forces and similar organisations use it in combat roles where the low signature and accuracy were of particular value. A recent development in .22 Long Rifle technology is prefragmented bullets driven at hyper velocity. These prefragmented bullets separate into three equal components upon impact, thereby increasing wounding capability. This patented .22 Long Rifle cartridge is marketed under the trade name "Quik-Shok". (See USA manufacturers) Description The cartridge case is rimmed and usually of brass, copper- or brass-plated steel. The priming composition is distributed around the rim, therefore the ductility of this area is critical. Bullets are of lead, occasionally with a light plating of copper and usually with lubricating cannelures, although lubricant may not always be present. Round-nose or hollow point bullets are the normal types. ARGENTINA Manufacturer Cartuchos Orbea Type: Standard: Lead; 2.6 g; MV 330 m/s HP: Lead, HP; 2.6 g; MV 380 m/s Pistol: Lead; 2.6 g; MV 310 m/s BELGIUM Manufacturer Browning SA Type: Standard: Lead; 2.59 g; MV 340 m/s High Velocity: Lead; 2.59 g; MV 390 m/s Match: Lead; 2.59 g; MV 335 m/s Zimmer: 2.59 g; MV 225 m/s BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Standard: Lead; 2.59 g; MV 332 m/s High Velocity: Lead, copper-plated; 2.33 g; MV 390 m/s BULGARIA Manufacturer Kintex Type: Ball: Lead; 2.5 g; MV 320 m/s. Brass case, propelling charge 0.083 g pyroxyline CHINA , PEOPLE'S REPUBLIC Manufacturer China North Industries (NORINCO) Type: Ball: Lead; 2.6 g; MV 342 m/s Competition: Lead; 2.6 g; MV 322 m/s Manufacturer Sotem Type: Sniper: Lead; 2.6 g; MV 320 m/s Biathlon: Lead; 2.71 g; MV 315 m/s Temp pistol: Lead; 2.6 g; MV 315 m/s Junior: Lead; 2.6 g; MV 320 m/s Manufacturer Mvstok Type: Ball: Lead; 2.4 g; MV 315 m/s Ball: Lead; 2.4 g; MV 300 m/s Ball: Lead; 2.5 g; MV 300 m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Rex: Lead; 2.5 g; MV 345 m/s Rex expansive: Lead, HP; 2.4 g; MV 345 m/s FINLAND Manufacturer Lapua Cartridge Factory Ltd Type: Trainer: Lead; 2.6 g; MV 335 m/s Multimatch: Lead; 2.6 g; MV 335 m/s Master: Lead; 2.6 g; MV 325 m/s Pistol king: Lead; 2.6 g; MV 315 m/s Speed ace: Lead; 2.6 g; MV 410 m/s Subsonic HP: Lead; 2.35 g; MV 315 m/s HP: Lead, HP; 2.35 g; MV 410 m/s Super club: Lead; 2.6 g; MV 320 m/s FRANCE Manufacturer SFM Défense Type: Standard: Lead; 2.6 g; MV 340 m/s HP: Lead, HP; 2.6 g; MV 340 m/s Tracer: Lead, red trace; 2.6 g; MV 340 m/s Manufacturer Survilliers-NCS Type: Match NCS20: Lead; 2.59 g; MV 320 m/s Training NCS30: Lead; 2.59 g; MV 320 m/s Pistol match NCS20: Lead; 2.59 g; MV 280 m/s Pistol training NCS30: Lead; 2.59 g; MV 280 m/s GERMANY Manufacturer Dynamit Nobel (Geco) Type: Ball, Pistol: Lead; 2.6 g; MV 290 m/s Ball, Rifle: Lead; 2.6 g; MV 325 m/s Manufacturer Dynamit Nobel (RWS) Type: R.50: Lead; 2.6 g; MV 325 m/s Standard: Lead; 2.55 g; MV 325 m/s Tracer: Lead, red trace; 2.55 g; MV 330 m/s Sport: Lead; 2.6 g; MV 325 m/s High velocity: Lead, solid or HP; 2.55 g; MV 400 m/s Pistol match: Lead; 2.6 g; MV 270 m/s Rifle match: Lead; 2.6 g; MV 325 m/s Biathlon: Lead; 2.6 g; MV 340 m/s Subsonic: Lead; 2.6 g; MV 305 m/s Manufacturer Fiocchi Munizioni SpA Type: Maxac: Lead; 2.6 g; MV 355 m/s Carabine: Lead; 2.6 g; MV 330 m/s Ultrasonic: Lead; 2.6 g; MV 390 m/s Expansive: Lead, HP; 2.4 g; MV 400 m/s Asonic: Lead; 2.4 g; MV 310 m/s Free pistol: Lead; 2.6 g; MV 320 m/s Standard pistol: Lead; 2.6 g; MV 290 m/s Mobile: Lead; 2.6 g; MV 335 m/s Biathlon: Lead; 2.6 g; MV 330 m/s Competition: Lead; 2.6 g; MV 325 m/s Super speed: Lead; 2.4 g; MV 490 m/s KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball Sidewinder: Lead; 2.59 g; MV 380 m/s Ball zapper: Lead, HP; 2.5 g; MV 390 m/s MEXICO Manufacturer Industrias Tecnos S A (Aquila) Type: SE Extra High Velocity: Lead; 2.4 g; MV 390 m/s SE Extra Subsonic: Lead, HP; 2.4 g; MV 312 m/s SE Extra Standard: Lead; 2.6 g; MV 350 m/s Super Maximum Hyper Velocity: Lead; 1.9 g; 533 m/s Colibri: Lead; 1.3 g; 114 m/s PHILIPPINES Manufacturer Armscor Type: Ball: Lead; 2.6 g; MV 382 m/s Ball: Lead, HP; 2.5 g; MV 390 m/s Standard velocity: 2.6 g; MV 350 m/s ROMANIA Manufacturer ROMARM SA Type: Ball: Lead; 2.5 g; MV 320 m/s RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer Olimp Type: Ball R: Lead; 2.6 g; MV 318 m/s Ball B: Lead; 2.7 g; MV 315 m/s SOUTH AFRICA Manufacturer Denel (Pty) Ltd Type: High velocity: Lead; 2.6 g; MV 370 m/s Standard velocity: Lead; 2.6 g; MV 350 m/s HP: Lead; 2.5 g; MV 370 m/s SPAIN Manufacturer SANTA BARBARA SA Type: Standard: Lead; 2.5 g; MV 330 m/s HP: Lead, HP; 2.5 g; MV 330 m/s SWEDEN Manufacturer Norma AB Type: Match: Lead; 2.6 g; MV 330 m/s UNITED KINGDOM Manufacturer Eley Ltd Type: Standard: Lead; 2.59 g; MV 331 m/s Tracer: Lead, red trace; 2.27 g; MV 330 m/s Moving target: Lead; 2.59 g; MV 441 m/s Silhouex: Lead; 2.59 g; MV 411 m/s LRZ: Lead; 2.59 g; MV 243 m/s Tenex: Lead; 2.59 g; MV 331 m/s Pistol: Lead; 2.59 g; MV 314 m/s Pistol match: Lead; 2.59 g; MV 305 m/s HV solid point: Lead; 2.59 g; MV 400 m/s HV HP: Lead, HP; 2.27 g; MV 400 m/s Subsonic HP: Lead, HP; 2.27 g; MV 320 m/s UNITED STATES OF AMERICA Manufacturer Blount Incorporated Type: Quik-Shok Hyper Velocity: Lead, copper plated, prefragmented. 2.07 g, MV 500 m/s Manufacturer Cascade Cartridge Company Type: Standard velocity: Lead; 2.6 g; MV 346 m/s High velocity: Lead; 2.6 g; MV 376 m/s HP: Lead; 2.4 g; MV 384 m/s Super match: Lead; 2.6 g; MV 346 m/s Manufacturer CCI-Speer Type: Stinger: Lead, HP; 2.08 g; MV 514 m/s Mini-mag: Lead; 2.6 g; MV 410 m/s Mini-mag HP: Lead, HP; 2.4 g; MV 410 m/s Mini-mag +V: Lead; 2.4 g; MV 435 m/s Standard velocity: Lead; 2.6 g; MV 347 m/s Competition: Lead; 2.6 g; MV 347 m/s Pistol match: Lead; 2.6 g; MV 326 m/s Small game: 2.5 g; MV 390 m/s Manufacturer Federal Cartridge Company Type: 710/810: Lead; 2.6 g; MV 382 m/s 712 Hi-power: Lead; 2.5 g; MV 390 m/s 711 Champion: Lead; 2.6 g; MV 350 m/s Lightning 510: Lead; 2.6 g; MV 383 m/s Spitfire 720: Lead, conoidal; 2.34 g; MV 430 m/s Spitfire 722: Lead, conoidal, HP; 2.15 g; MV 457 m/s Gold medal ultra match: Lead; 2.6 g; MV 348 m/s Gold medal target: Lead; 2.6 g; MV 351 m/s Manufacturer Remington Arms Company Inc Type: High velocity: Lead; 2.59 g; MV 407 m/s High velocity HP: Lead, HP; 2.33 g; MV 416 m/s Target: 2.59 g; MV 349 m/s Viper : Lead; 2.34 g; MV 430 m/s Yellow jacket: Lead; 2.14 g; MV 457 m/s Thunderbolt: Lead; 2.6 g; MV 383 m/s Cyclone: Lead; 2.3 g; MV 390 m/s Subsonic: Lead; 2.4 g; MV 320 m/s Manufacturer SK Industries Type: Rifle match: Lead; 2.6 g; MV 320 m/s Pistol match: Lead; 2.6 g; MV 320 m/s Subsonic: Lead; 2.6 g; MV 315 m/s Turbomatch: Lead; 2.6 g; MV 390 m/s HP: Lead, HP; 2.6 g; MV 385 m/s Manufacturer Winchester-Olin Type: Super X: Lead; 2.6 g; MV 383 m/s Dynapoint: Lead; 2.6 g; MV 383 m/s HP Super X: Lead, HP; 2.4 g; MV 390 m/s Target: Lead; 2.6 g; MV 351 m/s T22: Lead; 2.6 g; MV 341 m/s Laser: Lead, coppered; 2.6 g; MV 430 m/s Laser HP: Lead, coppered, HP; 2.4 g; MV 430 m/s Xpediter: Lead, coppered; 1.9 g; MV 505 m/s Rabbit: Lead, coppered, HP; 2.6 g; MV 385 m/s Subsonic: Lead, HP; 2.5 g; MV 320 m/s Super match: Lead; 2.6 g; MV 323 m/s Xpert: Lead; 2.6 g; MV 330 m/s Pistol: Lead; 2.6 g; MV 323 m/s Super silhouette: Lead; 2.7 g; MV 372 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Standard: Steel case, lead bullet; 2.56 g; MV 320 m/s High speed: Lead; 2.56 g; MV 380 m/s Ball: Lead, HP; 2.56 g; MV 380 m/s High speed: HP; 2.3 g; MV 380 m/s Manufacturer Pobjeda Type: Standard: Lead; 2.6 g; MV 330 m/s High velocity: Lead; 2.6 g; MV 375 m/sRead More

Kintex

5.56 × 45 mm

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Armament Suitably chambered rifles, machine guns or carbines. The SS109/M855 cartridge will have degraded accuracy in firearms having a twist rate of 1:305 mm. Development The 5.56 × 45 mm cartridge was derived from the 0.222 Remington during development of the Armalite AR-15 rifle that was subsequently adopted by the US military as the M16 . Original prototypes of the AR-15 were in 0.222 Remington calibre, but during testing in 1957, the army raised the ballistics requirements, necessitating a change in the cartridge. Eugene Stoner personally calculated the bullet weight and muzzle velocity necessary in order to achieve the army's requirements and decided that a slightly enlarged cartridge case was necessary, in addition to a heavier bullet. Stoner commissioned Remington to produce the cartridges with 3.56 g (55 grain) bullets, which were designated 0.222 Remington Special. The 0.222 Remington Special cartridge was officially adopted by the US Army in 1964 as the 5.56 × 45 mm M193 . This cartridge was subsequently marketed commercially by Remington for sporting rifles as the 0.223 Remington. The 5.56 × 45 mm M193 cartridge was the standard US military rifle cartridge until introduction of the M855 ( SS109 ) cartridge in 1984. Because of the widespread use of the M16 and other rifles intended for use with the 3.56 g bullet, the M193 is still produced in large quantities worldwide. The M193 may be safely fired from rifles chambered for the SS109 cartridge. As a result of extensive tests which were carried out from 1976 to 1979, the 5.56 × 45 mm cartridge was standardised for NATO use, but with a heavier 4 g (62 grain) bullet designed by FN Herstal. This cartridge was designated SS109 in Europe and M855 when it was adopted by the US in 1984. The SS109 cartridge proved to actually outperform the 7.62 × 51 mm NATO cartridge in penetration tests and was more accurate than the M193 . The new cartridge did, however require a faster (1:178 mm) rifling twist rate to stabilise its heavier bullet. The faster twist rate will also stablise the M193 bullet, but the slower 1:305 mm rifling twist rate of older rifles will not properly stabilise the SS109/M855 bullets and SS109 cartridges fired in rifles having a 1:305 mm twist rate will have degraded accuracy. Many rifles presently use an intermediate twist rate of 1:228 mm that stabilises either M193 or SS109 bullets. Because the 5.56 × 45 mm cartridge has achieved such widespread use in so many types of small arms, from suppressed sub-machine gun sized carbines to long-range heavy rifles, a large number of manufacturers now produce cartridges for tactical use ranging in bullet weight from 3.36 g to 8.4 g. The latter are subsonic cartridges intended for use in suppressed CQB weapons at ranges of 50 m or less. Military match and sniper rifles use 5.56 × 45 mm cartridges with bullets which range in weight from 4 g to 4.8 g. The variety of 5.56 × 45 mm cartridges for military use can be appreciated by scanning the cartridges available from various manufacturers. Concerns over heavy metal contamination in the United States have resulted in the development of new cartridges with steel and copper cores and lead-free primers rather than the traditional steel- and lead-cored bullets. Despite the proliferation of specialised 5.56 × 45 mm cartridges, the two primary 5.56 × 45 mm cartridges in military use today remain the M193 and SS109 . For this reason, we will provide abbreviated ballistics only for these two variants of the 5.56 × 45 mm. The reader is cautioned that due to differences in manufacturing and national specifications, not all 5.56 × 45 mm military cartridges can be safely chambered and fired in every rifle that is nominally chambered for that calibre. This is especially the case with sporting rifles in 5.56 × 45 mm/0.223 Remington calibre. Ammunition manufactured to NATO specification can, of course, be used in any rifle chambered in 5.56 × 45 mm NATO. Description The case is rimless and bottlenecked and, usually, is made of brass, although steel and plastic cases are occasionally encountered. Cases may be either Boxer or Berdan primed. Military bullets are streamlined with a crimping cannelure. Bullets may be found with lead cores ( M193 ) or lead and steel cores ( SS109 ). Other bullet shapes and weights may be encountered (due to the large variety of cartridges available), but these are the primary ones. ARGENTINA Manufacturer Direccion General de Fabricione Militares Type: Ball `C': FMJ; 3.6 g; MV 952 m/s AUSTRIA Manufacturer Hirtenberger AG Type: Ball: FMJ; 3.6 g; MV 980 m/s Type: Ball SC: FMJ; 4 g; MV 935 m/s Tracer LD: FMJ; base tracer, red to 457 m; 3.6 g; MV 970 m/s HP Test: FMJ; 3.6 g; pressure ~4,400 bar Blank: Steel case, crimped Frangible short-range ball: 1.8 g bullet of approximately 80% copper and 20% plastic; MV 1,050 m/s; Maximum range 750 m; effective range 180 m. Specially designed to function in automatic weapons up to 600 rds/min. Also available with heavy metal (lead, antimony, barium) free primers. Ball : JSP Nosler bullet; 3.6 g; MV 1,000 m/s Ball : JSP, Sierra bullet ; 3.6 g; MV 995 m/s Match: JHP; 4.47 g; V 10 825 m/s BELGIUM Manufacturer FN Herstal, SA Type: Ball SS109 : Brass or steel case; FMJ; 4 g; V 25 915 m/s. Penetrates 3.5 mm mild steel plate at >600 m Tracer L110: Brass or steel case; FMJ; 4.13 g; red trace; V 25 875 m/s Blank: Brass case star crimp. Cartridge weight 6.54 g BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball M193 : FMJ; 3.56 g; V 25 965 m/s Type: Tracer M196: FMJ; 3.35 g; V 25 950 m/s, dim trace 70-450 m Type: Ball SS109 (M2811): FMJ; steel/lead core; 4 g; V 25 915 m/s. Penetrates 3.5 mm SAE 1010 (Rockwell B55-70) steel plate at 570 m Blank: Brass case, star crimp Sporting: (Magtech): FMJ; 3.56 g; MV 988 m/s BULGARIA Manufacturer Kintex Type: Ball M193 : FMJ; 3.61 g; steel/lead core; MV 1005 m/s CANADA Manufacturer SNC Industrial Technologies Inc Type: Ball C77: FMJ; 4 g; MV 910 m/s Tracer C78: FMJ; 3.6 g; red trace; MV 875 m/s Blank C79: Brass case, crimped CHINA , PEOPLE'S REPUBLIC Manufacturer China North Industries (NORINCO) Type: Ball M193 : FMJ; 3.56 g; MV 1,006 m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Ball: FMJ; 3.6 g; MV 1,006 m/s EGYPT Manufacturer Shoubra Company Type: Ball M193 : FMJ; 3.6 g; MV 959 m/s Ball SS109 : FMJ; 4 g; MV 940 m/s Tracer L110: FMJ; 3.6 g; MV 875 m/s; red trace to 457 m Armour Piercing P112: FMJ; 4 g; MV 940 m/s FINLAND Manufacturer Nammo Lapua Cartridge Factory, Ltd Type: Ball S350: FMJ; 3.6 g; MV 955 m/s Ball E372: JSP; 3.6 g; MV 599 m/s Sniper Ball B421: FMJ; 4.7 g Manufacturer Sako Ltd Type: Ball: FMJ; 3.2 g; MV 985 m/s Ball: JSP; 3.56 g; MV 1,015 m/s Ball: JSP; 3.2 g; MV 985 m/s FRANCE Manufacturer Giat Industries Type: Ball ON: FMJ; 4 g; MV 915 m/s Type: Tracer TN : FMJ; 4.1 g; MV 890 m/s Balle ordinaire F1A: FMJ; 3.5 g; MV 957 m/s; brass or steel case Balle traceur F1A: FMJ; 3.5 g; MV 950 m/s; red trace; brass or steel case Tracer: FMJ; 3.55 g; MV 950 m/s; red trace Balle PPA: FMJ; hard core; 3.6 g; MV 950 m/s; penetrates 3.5 mm mild steel at 600 m and has the anti-personnel effect of the ordinary Balle O Ball, plastic bullet, FTA: Plastic bullet,1.25 g; MV 870 m/s Grenade launcher BALLIST: brass case, star crimp Blank G: Brass case, star crimp Blanc F1: Brass case, star crimp Grenade launcher: Brass case, star crimp Manufacturer SFM Défense Type: Ball: FMJ; 3.55 g; MV 950 m/s Type: Balle O: FMJ; 3.5 g; MV 957 m/s Tracer: FMJ; 3.55 g; MV 950 m/s; red trace SR-TR reduced charge R1: Plastic bullet; 1.17 g; MV 750 m/s SR-TR reduced charge R2 : Plastic bullet; 0.85 g; MV 915 m/s Training Ball R1 : Rilsan-bronze cylindro-conoidal bullet; 1.15 g; MV 740 m/s. Accuracy to 100 m is comparable to service ball; maximum range 600 m. Case may be brass or aluminium Training Ball R2 : Rilsan-bronze ogival bullet; 0.9 g; MV 880 m/s. Maximum range 500 m. Case may be brass or aluminium. GERMANY Manufacturer Dynamit Nobel (Geco) Type: Ball: FMJ; 3.56 g; MV 1,010 m/s Tracer: FMJ; red trace; 3.5 g; MV 1,010m/s Practice PT: Brass case, plastic bullet for short-range training. The bullet has a maximum range of 250 m, and a maximum training range of 30 m. Bullet weight 0.2 g; MV 1,000 m/s. Manufacturer Dynamit Nobel (RWS) Type: Ball TM: FMJ; 3.6 g; MV 989 m/s Ball M11 : FMJ; 4.0 g; MV 925 m/s; Sintox Tracer, M21 : FMJ, red trace; 4.1 g; MV 890 m/s; Sintox Blank: Plastic case, star crimp; Sintox Ball SPP: JSP; 3.56 g; MV 989 m/s Manufacturer Metallwerke Elisenhutte GmbH (MEN) Type: Special Ball: FMJ; steel and lead core; steel jacket; gilding metal envelope; 4.1 g; MV 930±15 m/s. available with single- or double-base powder, Boxer or Berdan primed Type: Practice KB: This is a short-range practice round using a bullet comprised of a copper alloy part-jacket and a plastic core, the nose of which is exposed and forms the nose of the bullet. The round feeds in automatic weapons, and the ballistics are such that at 100 m the centre of impact is the same as that of the SS109 ball round. The bullet has a maximum range of approximately 750 m although at this range the remaining energy is very little. Bullet weight 1.3 g; MV 1,100 m/s. Short-range KB: A special cartridge for use in training on ranges with restricted safety areas. It can be fired in standard weapons without requiring any change of parts, and at a range of 100 m the centre of impact corresponds with the standard SS109 round. Fired at point-blank, the bullet will strike the ground at approximately 240 m from the weapon. The bullet weighs 1.3 g and is composed of a plastic material with a light metal supporting cup and jacket to give a soft point effect. MV 1,100 m/s Blank DM18: Brass case, crimped star Manufacturer SK Jagd und Sportmunition Type: Ball: FMJ; steel core; 3.6 g; MV 955 m/s INDONESIA Manufacturer PT PINDAD Type: Ball MU-4TJ: FMJ; 3.6 g; V 10 989m/s Tracer Mu-5N: FMJ; 407 g; V 25 915 m/s Blank MU-5H: sound level min 90 dB Anti Riot MU-5DK: Plastic/rubber bullet; 0.24 g; V 10 812 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball: FMJ; 4.08 g; MV 940 m/s Type: Ball M193 : FMJ; 3.62 g; MV 990 m/s Tracer M196: 3.5 g; MV 975 m/s HP Test: 6.62 g; Pressure 4,920 kg/cm 2 Grenade launcher: Crimped; Pressure 2,000 kg/cm 2 Ball 11AM: FMJ, SL; 3.56 g; MV 988 m/s Ball 11BM: JHP, SL; 3.56 g; MV 988 m/s Ball 11CM: JSP, SL; 3.56 g; MV 988 m/s Ball 13CL: JSP; .08 g; MV 899 m/s Manufacturer Kalia Israel Cartridge Company Ltd Type: Ball: FMJ; 3.56 g; MV 882 m/s ITALY Manufacturer Europa Metalli Type: Ball IT-EM/01: FMJ; steel core with lead filler; 4 g; MV 866 m/s Tracer IT-EM/04: FMJ; lead core; dark ignition trace 30 to +600 m. Trajectory crosses ball at 600 m. 4 g; MV 866 m/s Short-range training (frangible): Bronze powder with plastic binder; 1.6 g; MV 1,000 m/s. Shoots within 120 mm of service ball at 100 m range. Maximum range 1,000 m Plastic training metal jacket: Plastic core with copper and zinc jacket to increase bullet mass; 1.6 g; MV 970 m/s; No perforation of 2.5 mm MS plate at 100 m. Maximum range 750 m. KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball 223A: FMJ; 3.56 g; MV 974 m/s Ball 223B: PSP; 3.56 g; MV 959 m/s MALAYSIA Manufacturer SME Ordnance SDN BHD Type: Ball: FMJ; 3.56 g; V 23 965 m/s MEXICO Manufacturer Industrias Technos, S A (Aquila) Type: Ball: FMJ; 3.56 g; MV 945 m/s POLAND Manufacturer Zaklady Metalowe (Mesko) Type: Ball: FMJ; 3.56 g; MV 956 m/s Type: Ball: FMJ (steel core); 4 g; MV 915 m/s Tracer: FMJ; 4.1 g; MV 910 m/s Blank: Cartridge weight 10.3 g PORTUGAL Manufacturer INDEP Type: Ball M366: FMJ; lead core; 3.55 g; V 4.5 990 m/s. For M16 rifling weapons Type: Ball M369: FMJ; lead core; 4 g; MV 940 m/s Ball: FMJ; lead core; 3.55 g; MV 990 m/s Ball SS109 type: FMJ; 4 g; V 10 932 m/s. For M16A2 rifling weapons Tracer: FMJ; 3.39 g; V 4.5 975 m/s. For M16 rifling weapons Blank: Brass case, star crimped nose RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer Tula Cartridge Works Type: Ball: FMJ; 3.6 g; MV 955 m/s; steel case Ball: FMJ; 4.0 g; MV 920 m/s; steel case Manufacturer JSC Barnaul Machine Tool Plant Type: Ball: FMJ; steel core; 4.0 g; V25 900-920 m/s Ball: FMJ; AP; 4.0 g; V25 900-920 m/s Manufacturer Novosibirsk Low Voltage Equipment Works JSC (LVE) Type: Ball: FMJ, steel core; 4.0 g; MV 900-920 m/s Ball: FMJ, armour piercing; 4.0 g; MV 900-920 m/s SINGAPORE Manufacturer Chartered Ammunition Industries(CAI) Type: Ball M193 : V 24 965 m/s; conforms to US Mil Spec MIL-C-9963 Ball SS109 : FMJ; V 24 914 m/s. Conforms to US Mil-Spec C-63989 ER: FMJ; 4.0 g; V 24 930 m/s. Delivers SS109 performance from rifles with 1:12 twist barrels. Penetrates 10 mm steel plate of 55-70HRB at 200 m. Fully perforates NATO standard plate at 600 m Tracer M196: V 24 965 m/s; conforms to US Mil Spec MIL-C-60111; red trace to not less than 457 m FLEA: Frangible Low Energy Ammunition: Plastic bullet; V24 950 m/s. Accuracy at 183 m: 152 mm. Will not penetrate 5 mm plate at 5 m, will not ricochet. Plastic Blank: Metal case head, plastic body, star crimped nose. Weight 2.8 g SOUTH AFRICA Manufacturer PMP Division, Denel (Pty) Ltd Type: Ball M193 : V 24 965 m/s. Conforms to US Mil Spec MIL-C-9963 Type: Ball SS109/M855 : V 24 914 m/s. Conforms to US Mil Spec MIL-C-63989 Type: Tracer M196: V 24 965 m/s. Conforms to US Mil Spec MIL-C-60111. Red trace to not less than 457 m. Type: Metal Blank M200: Star crimped nose. SPAIN Manufacturer SANTA BARBARA SA Type: Ball: FMJ; 3.56 g; MV 985 m/s Tracer: FMJ; red trace; 3.56 g; MV 985 m/s Survival: Shot charge over a wad; no external bullet; maximum range approximately 50 m HP Test: FMJ; pressure 4,350 kg/cm 2 SWEDEN Manufacturer Bofors-Carl Gustaf Type: 5.56 AP: FMJ, special heavy metal penetrator covered by a soft casing; 3.4 g; MV 1,000 m/s. Can penetrate 13 mm of 300 Brinell hardness steel at 100 m or 8 mm of 400 Brinell hardness steel at 200 m Manufacturer Norma Precision AB Type: Ball: 4.47 g; Vo 975 m/s Manufacturer Nammo Vanasverken AB Type: Ball, Non-toxic: 4.0 g; MV 930 m/s Type: Ball, Armour Piercing 4: FMJ, tungsten carbide core; 4.0 g; MV 940 m/s, armour penetration 15 mm RHA at 100 m and 10 mm RHA at 300 m (300HB at 0º). SWITZERLAND Manufacturer RUAG Munition (formerly SM Swiss Munition Enterprise) Type: Ball GP90: FMJ; 4.1 g; MV 905 m/s Tracer: FMJ; 3.8 g; MV 905 m/s SWISS P Target: HPBT; 4.47 g; MV 890 m/s SWISS ORDNANCE: FMJ; 4.1 g; MV 905 m/s UNITED ARAB EMIRATES Manufacturer Adcom Manufacturing Type: Ball: FMJ; lead core; 3.52 g; MV 955 m/s UNITED KINGDOM Manufacturer British Aerospace Defence Limited, Royal Ordnance Division Type: Ball L15A1: FMJ; steel core; 4 g; MV 940 m/s (NATO Qualified) Ball L2A2 : FMJ; dark ignition, red trace to 600 m; 4.2 g; MV 890 m/ s Blank L1A1 : Brass case, crimped nose ROTA training: Frangible bullet; 1.8 g; MV 1,000 m/s. Maximum range 1,200 m UNITED STATES OF AMERICA Manufacturer Black Hills Ammunition Type: Ball: JSP; 3.6 g; MV 990 m/s Ball Match: JHP; 3.3 g; MV 1005 m/s Ball: JSP; 3.8 g; MV 960 m/s Ball: FMJ; 3.2 g; MV 1005 m/s Ball: FMJ; 4.0 g; MV 899 m/s Ball Match: JHP; 4.4 g; MV 868 m/s Ball Match: JHP; 4.8 g; MV 838 m/s Ball Match: JHP; 4.9 g; MV 838 m/s Manufacturer Cor-Bon Ammunition Type: Ball: JHP; 3.56 g; MV 975 m/s Manufacturer Delta Defense Inc Type: Frangible: 2.14 g; MV 847 m/s Manufacturer Engel Ballistic Research Type: Subsonic Ball: JHP; 3.4 g; MV 305 m/s Subsonic Ball: FMJ; 9.1 g; MV 305 m/s Subsonic AP: FMJ; tungsten core; 9.1 g; MV 305 m/s Manufacturer Federal Cartridge Company Type: Ball: FMJ; 3.56 g; MV 988 m/s Ball: FMJ; 3.24 g; MV 1036 m/s Ball: JSP; 3.56 g; MV 987 m/s Ball: JHP; 3.56 g; MV 987 m/s Ball: FMJ; 4.0 g; MV 920 m/s Frangible nontoxic ball, short range training: FMJ; 2.72 g; MV 1066 m/s Nontoxic Ball: FMJ; 4.02 g; MV 814 m/s Ball: JHP, 4.47 g; MV 914 m/s Ball: JHP; 4.99 g; MV 838 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 2.92 g; MV 1,045 m/s Manufacturer Hansen Cartridge Company Type: Ball: FMJ; steel core; 4 g; MV 915 m/s Manufacturer HJ Ballistic Research Type: Subsonic Ball: JHP; 5.8 g; MV 297 m/s Manufacturer Hornady Manufacturing Co Type: Frangible Ball: TAP Urban 3.6 g; MV 987 m/s Frangible Ball : TAP Urban; 3.8 g; MV 944 m/s Frangible Ball: TAP Precision; 4.8 g; 850 m/s Manufacturer Eldorado Cartridge Corp (PMC Ammunition) Type: Ball: FMJ; 3.6 g; MV 948 m/s Ball Match: HPBT; 3.4 g MV 972 m/s Ball: FMJ; 3.2 g; MV 1005 m/s Manufacturer Mullins Ammunition Type: Subsonic Ball: FMJ; 7.45 g; 312 m/s Subsonic Frangible Ball: FMJ; 5.8 g; 274 m/s Ball: FMJ; 4.5 g; 811 m/s Manufacturer Remington Arms Company Inc Type: Ball: FMJ; 3.6 g; MV 987 m/s Ball: PSP; 3.6 g; MV 987 m/s Ball: JHP; 3.6 g; MV 987 m/s Manufacturer SNC Technologies Type: Ball: FMJ; 3.8 g; Vo 925 m/s Manufacturer Subsonic Munitions Group Type: AMF Frangible Ball : FMJ; 8.4 g; Vo 289 m/s Covert Ball: FMJ; 6.5 g; Vo 289 m/s Manufacturer US Military Contractors Type: Ball M193 : FMJ; 3.63 g; MV 990 m/s Ball, M885: FMJ; 4.0 g; MV 914 m/s Armor Piercing, M995 : FMJ, 4.0 g; MV 1,000 m/s Tracer M196: Red trace from 75-500 m; 3.5 g; MV 975 m/s Grenade M195: Star crimp; MV 43-50 m/s with 700 g grenade Blank M200: Star crimp Manufacturer Winchester-Olin Type: Ball M855 : FMJ; forward core steel, rear core lead; 4.02 g; V 25 914 m/s Ball: Lead Free Penetrator: FMJ; forward core steel, rear core copper; 3.6 g; Vo, 974 m/s Ball, frangible: FMJ, 2.9 g; MV 1044 m/s Ball: FMJ; 3.2 g; 1039 m/s Ball, Silvertip penetrator: FMJ; 4.01 g; MV 945 m/s Ball M193 : FMJ; 3.56 g; V 25 964 m/s Tracer M196: FMJ; red trace; 3.56 g; V 25 950 m/s Tracer M856: FMJ; red trace; 4.13 g; V 25 911 m/s Short-range training M862: Plastic bullet; 0.26 g; MV 1,326 m/s Blank M200: Brass case, star crimp YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: FMJ; 3.53 g; MV 963 m/s Type: Ball: FMJ; 4 g; MV 914 m/s Ball: FMJ; 3.56 g; MV 1,004 m/s Ball: FMJ; 4 g; MV 940 m/s Ball: JSP; 3.56 g; MV 999 m/s Tracer: FMJ; red trace to 450 m; 3.5 g; MV 956 m/s HP test type 2: FMJ; 3.56 g; pressure 4,810 kg/cm 2 Blank M200: Brass case, short crimp Blank PPU18: Brass case, long crimpRead More

SAKO LTD

9 × 17 mm

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 9 mm Browning Short ; 9 mm Kurz; 9 mm Corto; 0.380 Auto; 0.380 ACP Armament All pistols chambered for 9 × 17 mm or any of the synonyms shown above. The cartridge has also been tried in one or two sub-machine guns, without much success. Development Introduced by Colt in the USA in 1908 as the 0.380 Auto Pistol round. In 1910 it was adopted by Fabrique National Herstal for its Model 1910 pistol. FN coined the name `Browning Short' to distinguish it from the existing 9 mm Browning cartridge, which thereafter became the `Browning Long'. Widely adopted by central European police forces from the outset, the 9 × 17 mm went into use as a military cartridge in the 1920s, notably by Czechoslovakia and Italy. It is still widely used by police and security forces and is particularly applicable as an airline security round. It combines adequate stopping power with a velocity low enough to reduce the risk of overpenetration or ricochet, especially when frangible ammunition is used. Description A rimless, straight taper, brass case with Berdan or Boxer priming. There are numerous designs of bullet, mostly soft point in order to improve the stopping ability, but the military/police standard is a metal jacketed, lead-cored, round-nose bullet of 6.15 g weight. Frangible bullets have recently been introduced for this cartridge. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball: FMJ, RN; 6.15 g; MV 274 m/s AUSTRIA Manufacturer Hirtenberger AG Type: Ball: FMJ; 6.2 g; MV 280 m/s BELGIUM Manufacturer Browning SA Type: Ball: FMJ; 6.05 g; MV 270 m/s BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball: JHP; 6.15 g; MV 290 m/s Ball: FMJ; 5.83 g; V 0 302 m/s CHILE Manufacturer FAMAE Type: Ball: FMJ; 6 g; MV 290 m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Ball: FMJ; 6 g; MV 291 m/s Ball vz 82: 4.5 g; MV 412 m/s EGYPT Manufacturer Shoubra Company Type: Ball: FMJ; 6 g; MV 285 m/s FINLAND Manufacturer Nammo Lapua Cartridge Factory Ltd Type: Ball 4319170: FMJ; 6.1 g; MV 285 m/s HUNGARY Manufacturer Mátravidéki Fémmüvek Type: Ball: FMJ; 6 g; MV 270 m/s INDONESIA Manufacturer PT Pindad Type: Ball: MU-16TJ: FMJ; 6.15 g; V 10 265 m/s Anti Riot MU-16PHH: Plastic/rubber Bullet; 0.8 g; V 10 200 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball: FMJ; 6.16 g; MV 288 m/s Ball: JHP; 5.83 g; MV 305 m/s Manufacturer Kalia Israel Cartridge Company Ltd Type: Ball: JSP; 5.6 g; MV 252 m/s ITALY Manufacturer Fiocchi Munizioni SpA Type: Ball: FMJ; 6 g; MV 285 m/s KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball: FMJ; 5.8 g; MV 278 m/s Ball: JSP; 5.8 g; MV 280 m/s MEXICO Manufacturer Aguila Industrias Tecnos Type: Ball: FMJ; 6 g; MV 288 m/s PAKISTAN Manufacturer Pakistan Ordnance Factories Type: Ball P11Z: JSP; 6 g; MV 340 m/s ROMANIA Manufacturer S.N. ROMARM S.A. Type: Ball: FMJ; 6 g; MV 270 m/s RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer JSC Barnaul Machine Tool Plant Type: Ball: FMJ; 5.9 g; MV 313 m/s Manufacturer Novosibirsk Low Voltage Equipment Works, JSC (LVE Works) Type: Ball: FMJ; 6.0g; MV 300 m/s Manufacturer Tula Cartridge Works, JSC Type: Ball: FMJ; 6.0 g; MV 300 m/s SLOVAKIA Manufacturer Technopol, Military and Police Group Type: Ball: FMJ; 6.15 g; V 25 286 m/s SOUTH AFRICA Manufacturer PMP Type: Bullet type FMJ; weight 6.2 g; V 5 288 m/s SPAIN Manufacturer SANTA BARBARA SA Type: Ball: FMJ; 6.15 g; MV 310 m/s SWEDEN Manufacturer Norma AB Type: Ball: FMJ; 6.1 g; MV 315 m/s UNITED STATES OF AMERICA Manufacturer 3-D Type: Ball: FMJ; 6.16 g; MV 274 m/s Ball: JHP; 6.48 g; MV 290 m/s Ball: Lead, RN; 7.45 g; MV 244 m/s Manufacturer Black Hills Ammunition Company Type: Ball: FMJ; 6.1 g; MV 290 m/s Ball: JHP; 5.8 g; MV 304 m/s Manufacturer CCI-Speer Type: Ball: JSP; 5.72 g; MV 320 m/s Ball: FMJ; 6 g; MV 291 m/s Manufacturer Cor-Bon Ammunition Type: Ball+P: JHP; 5.8 g; MV 320 m/s Manufacturer Eldorado Cartridge Corp (PMC Ammunition) Type: Ball: JHP; 6.1 g; MV 281 m/s Ball: FMJ; 5.8 g; MV 277 m/s Ball: JHP; 5.8 g; MV 279 m/s Manufacturer Federal Cartridge Company Type: Ball: FMJ; 6 g; MV 291 m/s Ball: JSP; 5.8 g; MV 305 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 4.54 g; MV 411 m/s Ball: Glaser Silver; 4.54 g; MV 411 m/s Manufacturer Longbow Incorporated Type: Ball: Copper Powder and epoxy; 4.8 g; Mv 305 m/s Manufacturer Mullins Ammunition Company Type: Frangible Ball: Tungsten powder and epoxy; 5.8 g; MV 323 m/s Manufacturer Remington Arms Company Inc Type: Ball: FMJ; 6.16 g; MV 291 m/s Ball: JHP; 5.72 g; MV 302 m/s Manufacturer Winchester-Olin Type: Ball: FMJ; 6.2 g; MV 316 m/s Ball: JSP; 5.5 g; MV 291 m/s Ball: FMJ; 6.1 g; MV 291 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: FMJ; 6.1 g; MV 289 m/s Ball: JHP; 6.1 g; MV 290 m/sRead More

Nammo

0.45 ACP

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 0.45 Auto Colt ; 0.45 Automatic; 11.43 × 23 mm Norwegian Colt Armament Colt M1911 , M1911A1 semi-automatic pistols and pistols based on the original M1911 design; Smith & Wesson, Star, Obregon, Hafdasa, Heckler and Koch and many other pistols; Smith & Wesson and Colt M1917 revolvers; Thompson, Reising, M2, M3 and M3A1 sub-machine guns; De Lisle silent carbine; other police carbines. Development Originally developed by John Browning in 1905, this cartridge was approved by the US Ordnance in 1911 along with the Colt pistol. It was the standard military pistol cartridge in the USA until the adoption of the 9 × 19 mm Parabellum round in 1985 and is still in general use. It continues as the standard pistol calibre for US special operations forces, particularly in its +P loading. The cartridge is also used by many US police agencies. The 0.45 ACP was adopted by Norway and several Central and South American countries and has been used by the UK and Commonwealth forces at various times. A popular commercial round, weapons continue to be made for it in many countries. Despite adoption of the 9 × 19 mm cartridge by the US military, American special operations forces continue to use pistols in this calibre. Description A rimless, straight-taper case which may be of brass, aluminium, or steel, Boxer or Berdan primed. An enormous variety of bullets has been developed for this round, but the standard military loading has always been a 15.16 g lead-cored, full metal jacket round-nosed type. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball FMK 1 Mod C: FMJ, RN; lead core in brass jacket; 14.9 g; MV 255 m/s AUSTRIA Manufacturer Hirtenberger AG Type: Ball: FMJ; 14.9 g; MV 265 m/s Ball EMB: FMJ controlled expansion; 7.5 g; V 10 425 m/s BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball: FMJ; 14.9 g; MV 255 m/s Ball: FMJ, SWC; 14.9 g; MV 226 m/s Ball: Lead, SWC; 12.96 g; MV 277 m/s FRANCE Manufacturer SFM Défense Type: Ball: FMJ; 14.9 g; MV 270 m/s Ball: Lead; 14.9 g; MV 230 m/s Ball: THV; 3.9 g; MV 780 m/s GERMANY Manufacturer Dynamit Nobel (Geco) Type: Ball: FMJ; 14.95 g; MV 265 m/s GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: Ball: FMJ; 14.9 g; MV 261 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball: FMJ; 14.9 g; MV 257 m/s Ball: JHP; 11.99 g; MV 283 m/s Ball: Metal-cased, SWC; 11.99 g; MV 236 m/s High-velocity carbine ball: Metal-cased, SWC; 11.99 g; MV 335 m/s Manufacturer Kalia Israel Cartridge Company Ltd Type: Ball: Lead; 13.6 g; MV 256 m/s Ball: Lead, SWC; 12.56 g; MV 256 m/s ITALY Manufacturer Fiocchi SpA Type: Ball: FMJ; 14.9 g; MV 267 m/s Ball: JHP; 13.0 g; MV 274 m/s Ball: JHP; 14.9 g; MV 267 m/s KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball 45A: FMJ; 14.9 g; MV 273 m/s Ball 45B: JHP; 14.9 g; MV 275 m/s Ball: FMJ, SWC; 13 g; MV 259 m/s MEXICO Manufacturer Industrias Technos S A (Aquila) Type: Ball: HP alloy, controlled fragmentation; 7.58 g; MV 442 m/s RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer JSC Barnaul Type: Ball: FMJ; 14.9 g; MV 265 m/s Manufacturer Tula Cartridge Works, JSC Type: Ball: FMJ; 14.9 g; MV 265 m/s SOUTH AFRICA Manufacturer PMP , a division of Denel (Pty) Ltd Type: Bullet: FMJ; 14.3 g; V 5 258 m/s Type: Bullet: JHP; 13.0 g; V 5 288 m/s TURKEY Manufacturer Makina ve Kimya Endüstrisi Kumuru ( MKEK ) Type: Ball: FMJ; 14.9 g; MV 265 m/s UNITED STATES OF AMERICA Manufacturer 3-D Type: Ball: JHP; 12.96 g; MV 256 m/s Ball: JHP; 11.98 g; MV 312 m/s Ball: FMJ; 14.9 g; MV 251 m/s Ball: Lead, RN; 14.9 g; MV 236 m/s Manufacturer Black Hills Ammunition Company Type: Ball: JHP; 12 g; MV 297 m/s Ball: JHP; 12 g; MV 304 m/s Match: SWC; 12.9 g; MV 266 m/s Ball: Lead; 14.9 g; MV 259 m/s Ball: FMJ; 14.9 g; MV 259 m/s Ball: JHP; 14.9 g; MV 274 m/s Ball : Devel; 10.0 g; MV 351 m/s Manufacturer Cor-Bon Ammunition Type: Ball +P: JHP; 10.7 g; MV 381 m/s Ball +P: JHP; 11.9 g; MV 351 m/s Ball +P: JHP; 13 g; MV 320 m/s Ball +P: JHP; 14.9 g; MV 290 m/s Pre-fragmented: JSP; 7.0 g; MV 457 m/s Manufacturer Delta Defense Inc Type: Frangible: 8.1 g; MV 307 m/s Manufacturer Eldorado Cartridge Corporation (PMC) Type: Ball: JHP; 14.9 g; MV 259 m/s Ball: FMJ; 14.9 g; MV 253 m/s Ball : JHP; 12.0 g; MV 275 m/s Ball : FMJ-SWC; 13.0 g; MV 259 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 9.4 g; MV 412 m/s Ball: Glaser Silver; 9.4 g; MV 412 m/s Manufacturer Government contractors Type: Ball M1911 : FMJ, RN; 15.16 g; MV 260 m/s Tracer M26 : FMJ; red trace visible 15 to 150 m; 13.15 g; MV 270 m/s Blank M9 : Mouth tapered and sealed with red lacquered disc Manufacturer Longbow Incorporated Type: Ball: Frangible Ball; 9.3 g; MV 365 m/s Manufacturer Remington Arms Company Inc Type: Ball: Jacketed, WC; 12 g; MV 235 m/s Ball: JHP; 12 g; MV 286 m/s Ball: FMJ; 15 g; MV 246 m/s Targetmaster ball: FMJ; 15 g; MV 246 m/s Manufacturer Winchester-Olin Type: Ball M1911 : FMJ; 14.9 g; V 7.7 260 m/s Match ball M1911 : FMJ; 14.9 g; V 7.7 260 m/s Ball: JHP; 14.9 g; MV 282 m/s Ball: JHP; 14.9 g; MV 300 m/s Frangible Ball: 8.1 g; MV 418 m/s Ball: Lead-free FMJ; 14.9 g; MV 255 m/s Manufacturer Winchester-Olin Type: Ball: FMJ; 14.9 g; MV 246 m/s Ball: BJHP; 14.9 g; 267 m/s Ball: FMJ (gilding metal jacket), SWC; 12 g; MV 262 m/s Ball: (brass alloy jacket) FMJ; 12 g; MV 282 m/s Ball: JHP; 12 g; MV 304 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: FMJ; 14.85 g; MV 257 m/s Ball: JHP; 12 g; MV 274 m/s Ball: FMJ; 13 g; MV 268 m/s Ball: Lead, RN; 14.9 g; MV 257 m/s Ball: JHP; 12 g; MV 269 m/s Ball: FMJ; 13 g; MV 263 m/s Ball: FMJ; 14.85 g; MV 252 m/s Ball: Lead, RN; 14.9 g; MV 252 m/sRead More

0.38 Special

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 0.38 Smith & Wesson Special Armament Suitably chambered revolvers. Development This was developed by Smith & Wesson in about 1900 as a possible military round, before the US Army decided that 0.45 was the minimum calibre it would consider for pistols. It was placed on commercial sale in 1902 and attained considerable popularity with police and as a sporting and target round. At one time revolvers in 0.38 Special were widely used in the US military for aircrew and military police, but they have been largely replaced by 9 × 19 mm pistols. Revolvers in this calibre continue to be widely used by police, especially for plainclothes work in the higher-powered 'Plus P' loadings. Description A rimmed, straight-taper case, brass, nickel-plated brass, or aluminium. Boxer or Berdan primed. Various bullets can be found with soft point predominating. The US military standard Ball M41 uses an FMJ type weighing 8.55 g. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball: Lead-antimony, RN; 10.25 g; MV 255 m/s (151 mm barrel) AUSTRIA Manufacturer Hirtenberger AG Type: Ball: JSP; 10.2 g; MV 350 m/s Ball: Lead WC; 10.2 g; MV 225 m/s Ball: JSP; 10.2 g; MV 350 m/s Ball: FMJ; 10.2 g; MV 320 m/s BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball: Lead, RN; 10.24 g; MV 230 m/s Ball: JSP; 10.24 g; MV 235 m/s Ball: JHP; 10.24 g; MV 245 m/s Ball +P: JSP; 8.1 g; MV 266 m/s Ball +P: JHP; 8.1 g; MV 288 m/s Ball: Lead, WC; 9.59 g; MV 216 m/s CHILE Manufacturer FAMAE Type: Ball: Lead, RN; 10.15 g; MV 225 m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Ball: JHP; 10.25 g; MV 266 m/s Ball: Lead, RN; 10.25 g; MV 266 m/s Ball: Lead, WC; 9.6 g; MV 213 m/s FINLAND Manufacturer Nammo Lapua Cartridge Factory Ltd Type: Ball: JHP; 8 g; MV 355 m/s Ball: LWC; 9.3 g; MV 230 m/s Ball: FMJ CEPP; 9.7 g; MV 300 m/s Ball: JSP; 10.2 g; MV 315 m/s Ball: FMJ; 10.2 g; MV 255 m/s Ball: LRN; 10.3 g; MV 255 m/s Manufacturer Sako Ltd Type: Ball: Lead, WC; 9.6 g; MV 235 m/s Ball: Lead, SWC; 10.3 g; MV 235 m/s FRANCE Manufacturer GIAT Industries Type: Ball NT: FMJ; 9.6 g; V 10 310 m/s Ball TRN: Plastic bullet; 4 g; MV 30 m/s Manufacturer SFM Défense Type: Ball: Lead, RN; 10.4 g; MV 240 m/s Ball: Lead, WC; MV 220 m/s Ball: JSP; 3.9 g; MV 470 m/s Ball: JSP; 10.4 g; MV 320 m/s Ball: JHP; 9.7 g; MV 290 m/s Ball: JHP; 10.4 g; MV 280 m/s THV: 2.9 g; MV 740 m/s; penetrates 3 mm steel at 7 m GERMANY Manufacturer Dynamit Nobel (Geco) Type: Ball: WC; 9.6 g; MV 225 m/s Ball: Lead, RN; 10.25 g; MV 337 m/s Ball: Plastic; 0.4 g; MV 280 m/s Ball: JSP; 10.25 g; MV 335 m/s Ball: FMJ, conical; 10.25 g; MV 335 m/s Manufacturer Metallwerke Elisenhutte GmbH (MEN) Type: Ball: FMJ; 9.6 g, MV 310 m/s Quick Defence Ball: JHP; 6.0 g; V 10 380 m/s Frangible Ball: Solid Copper/polymer bullet; 5.4 g; V 10 410 m/s INDONESIA Manufacturer PT Pindad Type Ball MU-6TJ: Lead, RN; 10.25 g; V 10 265 m/s Ball: (MU-6WC): 9.6 g; V 10 225 m/s Blank MU-6H : sound level min 90 dB IRAN Manufacturer Iran Ammunition Industries Type: Ball: FMJ: ? g; 250 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball: WC; 9.59 g; MV 219 m/s Ball: SWC; 10.24 g; MV 232 m/s Ball: Lead, HP, SWC; 10.24 g; MV 232 m/s Ball +P: JHP; 7.13 g; MV 402 m/s Ball +P: JHP; 8.1 g; MV 287 m/s Ball +P: JHP; 10.24 g; MV 279 m/s Ball +P: JSP; 10.24 g; MV 279 m/s Ball +P: SWC; 10.24 g; MV 271 m/s Ball +P: Lead, HP, SWC; 10.24 g; MV 271 m/s Manufacturer Kalia Israel Cartridge Company Ltd Type: Ball: SWC; 9.72 g; MV 259 m/s Ball: WC; 9.4 g; MV 229 m/s ITALY Manufacturer Fiocchi Munizioni SpA Type: Ball: FMJ; 10.0 g; MV 293 m/s Ball: JHP; 9.6 g; MV 250 m/s KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball 38A: Lead, RN; 10.24 g; MV 250 m/s Ball 38B: SWC; 10.24 g; MV 250 m/s Ball 38C: WC; 9.59 g; MV 222 m/s Ball +P 38D: JHP; 8.05 g; MV 297 m/s Ball +P 38E: JHP; 7.13 g; MV 328 m/s Ball +P 38F: JHP; 9.72 g; MV 270 m/s Ball 38G: FMJ; 8.55 g; MV 256 m/s Ball 38H: JSP; 8.1 g; MV 296 m/s Ball 38AC: Lead, copper-plated, RN; 10.24 g; MV 242 m/s Ball 38BC: SWC, copper-plated; 10.24 g; MV 241 m/s MALAYSIA Manufacturer SME Ordnance SDN BHD Type: Ball: LRN; 10.25 g; MV 265 m/s MEXICO Manufacturer Aguila Industrias Tecnos Type: Ball: FMJ; 10.2 g; MV 230 m/s Ball: Lead; 10.2 g; MV 193 m/s Ball: Lead, WC; 9.6 g; MV 216 m/s POLAND Manufacturer Zaklady Metalowe (Mesko) Type: Ball: JSP; 10.2 g; MV 265 m/s Ball: Lead, RN; 10.3 g; MV 215 m/s Target: Wadcutter; 9.6 g; MV 170 m/s Target: Plastic, RN; 3 g; MV 300 m/s RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer Novosibirsk Low-Voltage Equipment Works, LVE(JSC) Type: Ball: FMJ; 6.1 g; MV 315 m/s SOUTH AFRICA Manufacturer Denel (Pty) Ltd Type: Ball: JHP; 9.1 g; MV 286 m/s Type: Ball: WC; 9.6 g; MV 216 m/s Type: Ball: SWC; 10.2 g; MV 230 m/s Type: Ball: FMJ; 10.2 g; MV 230 m/s Type: Ball +P: SWC; 10.2 g; MV 279 m/s Type: Bullet: JHP; 8.1 g; V 5 325 m/s Type: Bullet: JSP; 10.2 g; V 5 230 m/s Type: Bullet: JHP; 10.2 g; V 5 230 m/s Manufacturer PMP Type: Ball: JSP; 10.24 g; MV 274 m/s Ball: JHP; 10.24 g; MV 274 m/s SPAIN Manufacturer SANTA BARBARA SA Type: Ball: JSP; 10.25 g; MV 265 m/s Ball: WC; 9.65 g; MV 250 m/s SWEDEN Manufacturer Norma AB Type: Ball 19119: JHP; 7.1 g; MV 470 m/s Ball 19110: WC; 9.6 g; MV 235 m/s Ball 19112: Lead, RN; 10.2 g; MV 265 m/s Ball 19114: FMJ, SWC; 10.2 g; MV 274 m/s Ball 19124: JSP; 10.2 g; MV 274 m/s Ball 19125: JHP; 10.2 g; MV 274 m/s TURKEY Manufacturer Makina ve Kimya Endüstrisi Kumuru ( MKEK ) Type: Ball: Lead, RN; 10.2 g; MV 265 m/s Target: Wadcutter; 9.5 g; MV 250 m/s UNITED KINGDOM Manufacturer Cobra Gun Company Type: Ball: HSA Flechette Manufacturer Conjay Arms Company Type: Ball +P: CBX; 5.51 g; MV ? Ball +P: CBXX; 6.8 g; MV ? Ball +P: CBAP; 5.51 g; MV 690 m/s; penetrates 5.5 mm RHA (480-530 Brinell, 52 Rockwell) UNITED STATES OF AMERICA Manufacturer 3-D Type: Ball: JHP; 8.1 g; MV 282 m/s Ball: Lead, SWC; 10.24 g; MV 233 m/s Ball: Lead, SWC; 8.1 g; MV 251 m/s Ball: Lead, WC; 6.48 g; MV 244 m/s Ball: Lead, hollow base WC; 9.59 g; MV 236 m/s Manufacturer Black Hills Ammunition Company Type: Ball +P: JHP; 8.1 g; MV 320 m/s Ball: Lead, SWC; 10.2 g; MV 259 m/s Ball: LCN; 10.0 g; MV 244 m/s Ball MATCH: LWC; 9.6 g; MV 213 m/s Ball: JHP; 8.0 g; MV 290 m/s Manufacturer CCI-Speer Type: Shot: 7 g; MV 305 m/s Ball: JHP; 7.1 g; MV 305 m/s Ball: JHP; 8.1 g; MV 288 m/s Ball: JHP; 9 g; MV 283 m/s Ball: WC; 9.6 g; MV 217 m/s Ball: SWC; 10.2 g; MV 230 m/s Ball: Lead; 10.2 g; MV 230 m/s Manufacturer Cor-Bon Ammunition Type: Ball +P: JHP; 7.5 g; MV 381 m/s Ball +P: JHP; 10.2 g; MV 305 m/s Ball +P: JHP; 7.5 g; MV 442 m/s Ball +P: JHP; 8 g; MV 412 m/s Manufacturer Delta Defense Inc Type: Frangible: 5.51 g; 386 m/s Manufacturer Eldorado Cartridge Corporation (PMC Ammunition) Type: Ball+P: JHP; 8.1 g; MV 290 m/s Ball: LRN; 10.0 g; MV 250 m/s Ball: LWC; 9.6 g; MV 222 m/s Ball+P: JHP; 8.1 g; MV 297 m/s Ball: FMJ; 8.6 g; MV 256 m/s Ball: JSP; 10.0 g; MV 255 m/s Manufacturer Federal Cartridge Company Type: Ball: WC; 9.6 g; MV 216 m/s Ball: Lead; 10.2 g; MV 230 m/s Ball: Lead; 10.2 g; MV 230 m/s Ball: Lead, SWC; 10.2 g; MV 230 m/s Ball: Lead, SWC; 10.2 g; MV 279 m/s Ball: Lead, ogival; 10.2 g; MV 279 m/s Ball: JHP; 8.4 g; MV 288 m/s Ball: JHP; 7.1 g; MV 311 m/s Ball: JSP; 8.1 g; MV 251 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 5.18 g; MV 457 m/s Ball +P: Glaser Blue; 5.18 g; MV 503 m/s Ball: Glaser Silver; 5.18 g; MV 457 m/s Ball +P: Glaser Silver; 5.18 g; MV 503 m/s Manufacturer Longbow Incorporated Type: Frangible Ball: 5.5 g; MV 396 m/s Manufacturer Remington Arms Company Inc Type: Ball +P: JHP; 6.2 g; MV 358 m/s Ball +P: JHP; 7.10 g; MV 310 m/s Ball +P: JHP; 8.1 g; MV 288 m/s Ball: Lead, WC; 10.2 g; MV 230 m/s Ball: Lead, RN; 10.2 g; MV 230 m/s Ball: Lead; 10.2 g; MV 230 m/s Ball: SWC; 10.2 g; MV 230 m/s Ball +P: Lead; 10.2 g; MV 287 m/s Ball +P: Lead, HP; 10.2 g; MV 278 m/s Ball: Lead; 13 g; MV 193 m/s Manufacturer Winchester-Olin Type: Ball M41 : FMJ; 8.42 g; V 5 290 m/s Manufacturer Winchester-Olin Type: Ball: JHP; 6.16 g; MV 288 m/s Ball: JHP; 7.1 g; MV 193 m/s Ball: JHP; 7.1 g; MV 303 m/s Ball: JHP; 8.1 g; MV 303 m/s Ball: BJHP; 8.1 g; MV 297 m/s Ball: FMJ; 10.2 g; MV 230 m/s Ball: MP; 9.7 g; MV 262 m/s Ball: LRN; 9.7 g; MV 223 m/s Ball: MP; 10.2 g; MV 230 m/s Ball: JHP; 10.2 g; MV 230 m/s Ball: Lead; 9.7 g; MV 335 m/s Ball: Lead, SWC; 10.2 g; MV 230 m/s Ball: Lead, WC; 9.6 g; MV 216 m/s Ball: Lead, `Match'; 13 g; MV 190 m/s Ball: Lead, `Super Match'; 10.2 g; MV 230 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: Lead, RN; 10.25 g; MV 264 m/s Ball: Lead, WC; 9.6 g; MV 252 m/s Ball: SWC; 10.25 g; MV 264 m/s Ball: FMJ; 10.2 g; MV 264 m/s Ball: JHP; 10.2 g; MV 254 m/s Ball +P: Lead, RN; 10.25 g; MV 312 m/s Ball +P: SWC; 10.25 g; MV 312 m/s Ball +P: JHP; 10.2 g; MV 312 m/sRead More

SAKO LTD

20 × 110 mm

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 20 mm M24 ; 20 mm Hispano-Suiza HS 404/804 Armament Hispano-Suiza HS404, HS804, Mk II and Mk V guns; US M3, M24 and M24A1 guns; UK Mks 2 and 5; Israel TCM-20 ; Yugoslav M55 guns. Development This cartridge was used extensively by the UK and USA during the Second World War and large numbers of these guns are still in use. Both countries produced the same range of cartridges in this chambering as that produced for the Oerlikon guns. The projectiles were exactly the same, only the cartridge case and propelling charge differed. Description The ammunition is almost identical to the 20 × 110RB Oerlikon, but the case is a rimless type rather than a rebated rimless. European manufactured ammunition uses Berdan primers, while the US M21 , M21A1 and M21A1B1 cases use a Boxer primer. In post-war years the US Air Force developed electrically primed ammunition in this chambering for use in the M24 gun. It was prominently marked `ELECTRIC' on the side of the cartridge case, and the primer cap exhibits a ring of black insulating material around it. Other nations have adopted electric priming, although the presence of the insulating material is often the only indication. Projectiles resemble those developed for the Oerlikon 20 × 110RB gun. They are notable for having the explosive cavity reduced in diameter at the rear, in order to better resist the crushing action set up by the driving band during its passage up the gun bore. For this reason the tracer recess is smaller. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: HE-T FMK 1 Mod 0: Steel shell loaded 5 g Hexogen; tracer capsule in rear; impact fuzed; percussion primed; 118.7 g; MV 830 m/s. For Oerlikon guns HE-I FMK 15 Mod 0: Steel shell loaded 4 g of HE-Incendiary material; impact fuzed; electric primed; 110 g; MV 950 m/s. For EINC guns HE-I FMK 7 Mod 0: Steel shell loaded 11 g HE-Incendiary material; impact fuzed; percussion primed; 258 g; MV 845 m/s. For HS 404 guns TP-T FMK 4 Mod 0: Steel shell loaded 5 g inert ballast; dummy fuze; 124.8 g; MV 830 m/s. For Oerlikon guns TP-T FMK 13 Mod 0: Steel shell loaded 4 g inert ballast; dummy fuze; electric primed; 110 g; MV 950 m/s. For EINC guns TP-T FMK 6 Mod 0: Steel shell loaded 16 g inert ballast; tracer capsule in rear; percussion primed; 260 g; MV 845 m/s. For HS 404 guns BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: HE-I M74E1: Steel shell with copper driving band and loaded with 11 g RDX; impact fuzed CBC M74E1; 100 g; V 7.5 810 m/s HE-I-T-SD M72E1: Steel shell with copper driving band and loaded with 7 g RDX impact fuzed CBC M72E1. Tracer loaded into the rear of the shell with a heat relay giving self-destruction between 3 - 7 seconds of flight. 101 g; V 7.5 875 m/s TP: Hollow steel shell, flat nosed, no filling; 123 g; V 25 810 m/s TP-T: As for TP but with tracer capsule inserted in rear EGYPT Manufacturer Maasara Company for Engineering Type: HE-I: Steel shell, brass case; nose impact fuze. Appears to be based upon the standard Oerlikon HE-I round. No details FRANCE Manufacturer Giat Industries Type: HE-I: Steel shell containing 14 g HE-I filling as one prepressed pellet of HE, one of incendiary material and a final pellet of HE; MR21 or 16/18 Mle 61 impact fuze; 122 g; MV 840 m/s HE-I: As above but fuzed MR22 short delay impact fuze HE-I: As above but fuzed MR2028 impact with self-destruction between 2.5 and 9 seconds HE-I-T: Steel shell with 8 g filling composed of one pellet of HE and one of incendiary material; MR212 impact fuze; 128 g; MV 840 m/s HE-I-T: As above but fuzed MR22 short delay impact fuze HE-I-T: As above but fuzed MR2028 impact with self-destruct between 2.5 and 9 seconds TP: Steel-pointed shell, empty; 132 g; MV 840 m/s TP-T: Steel-pointed shell, part filled inert, remainder filled red tracer; 132 g; MV 840 m/s AP-T: Hard steel-pointed shell, base bored for tracer; 139 g; MV 830 m/s ITALY Manufacturer Simmel Difesa SpA Type: HE: Steel shell loaded HE; self-destroying fuze; 135 g; MV 810 m/s HE-I: Steel shell loaded HE-Incendiary mixture; self-destroying fuze; 135 g; MV 810 m/s AP-I: Steel-pointed shell with incendiary filled ballistic cap; 130 g; MV 815 m/s AP-T: Steel-pointed shot with tracer; 130 g; MV 815 m/s SAP-I: Steel shell loaded HE-Incendiary mixture; reinforced nose impact delay fuze; 135 g; MV 810 m/s BL: Target practice round. Steel shell shaped to represent HE shell and fuze, hollow, inert; 130 g; MV 815 m/s BL-T: As for BL but with tracer capsule in rear; 130 g; MV 815 m/s TP: Steel shell body, empty; dummy fuze; 125 g; MV 815 m/s NORWAY Manufacturer Nammo Raufoss Technology A/S Type: MultiPurpose High Capacity Tracer (MPHC-T): Fragmentation and incendiary comparable to standard 20 mm multipurpose. Optimised penetration capability due to the introduction of a hard core penetrator. Tracer optimised for HS 404 guns. 120 g; MV 904 m/s SPAIN Manufacturer EXPAL SA Type: HE-I: Steel shell, filled Hexolite; nose impact fuze Mk 26; 122 g; MV 845 m/s HE-I-T: Steel shell, filled Hexolite; nose impact fuze Mk 26; red tracer with minimum burning time of 3 seconds; 122 g; MV 845 m/s HE-I: Steel shell, filled RDX; nose impact fuze Mk 26; 120 g; MV 845 m/s TP and TP-T: The HE-I and HE-I-T projectile bodies filled inert and with inert fuze; 122 g; MV 945 m/s SWITZERLAND Manufacturer Oerlikon Contraves Pyrotec AG Type: HE-I: Steel shell, filled Hexal; nose impact fuze; 122 g; MV 830 m/s HE-I-T: Steel two-section shell, front filled Hexal, rear filled red tracer; nose impact fuze; 122 g; MV 830 m/s AP-I-T: Pointed steel shell with Hexal filling and red tracer; base delay fuze; 113 g; MV 965 m/s TP-T: Steel two-section shell body, front empty, rear filled red tracer; dummy fuze; 122 g; MV 830 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: HE-I-T M57 : Steel shell filled TNT or RDX/Al; red trace composition in rear, trace for 3 seconds; self-destruction by fuze between 4.5 - 8 seconds; 137 g; MV 850 m/s HE-T M57 : Steel shell filled TNT or RDX/Al; red trace for 3 seconds; self-destruction between 4.5 - 8 seconds; 137 g; MV 850 m/s HE-I M57 : Steel shell filled TNT with central filling of incendiary composition; self-destruction between 4.5 - 8 seconds; 132 g; MV 850 m/s HE M57 : Steel shell filled TNT or RDX/Al; self-destruction between 4.5 - 8 seconds; 132 g; MV 840 m/s AP-I M60 : Steel pointed shell filled from the rear with incendiary composition; unfuzed; 142 g; MV 840 m/s AP-I-T M60 : As for AP-I but with tracer burning for 3 seconds; 142 g; MV 840 m/s AP-T M60 : Steel pointed shot with tracer cavity in rear; red tracer for 3 seconds; 142 g; MV 850 m/s TP-T M57 : This is the same shell as the HE-I M57 but with the forward section filled inert and with tracer for 3 seconds; dummy fuze; 137 g; MV 850 m/s TP M57 : The same shell as the HE M57 but filled inert; dummy fuze; 132 g; MV 850 m/s TP-T M79: This has the two-section shell of the HE-I M57 ; the front section is filled with flash composition, and the rear with tracer composition. An impact fuze is fitted. On striking the target the shell explodes with a bright flash. 137 g; MV 850 m/s. Not for use in cannon: for subcalibre training tubes fitted to larger weapons only Blank M77 : Polyethylene projectile filled with sintered iron powder. For training and test use in M55 AA guns only. The projectile breaks up in the bore, having provided sufficient recoil force to operate the automatic mechanism. Maximum range of fragments and dust is 65 m from muzzle. The entire cartridge weighs 195 gRead More

Simmel difesa

20 × 139 mm

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 20 mm Hispano-Suiza HS 820 Armament Hispano-Suiza HS820; Oerlikon KAD, KAD-B; Rheinmetall Rh202; US M139 ; French M693/F2; Mauser Model B. Development Developed by Hispano-Suiza in the late 1940s as a more powerful replacement for the wartime 20 × 110 mm round. The new weapon which accompanied it, the HS820 gun, became one of the most successful 20 mm designs ever made and was widely purchased throughout the world as an aircraft and ground weapon. As a result of this wide distribution the cartridge was adopted by other designers who developed suitable guns, notably the German Rheinmetall Rh202, the French M693 and the US M139 . Description The rimless, bottlenecked case may be of steel or brass and is percussion primed. A wide variety of projectiles has been made across the years, but those listed below are the current manufacturing standards. Propelling charges are generally regulated to give a muzzle velocity of 1,040 m/s in a 95 calibre barrel. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: HE-I: Steel shell with sintered iron driving band, loaded explosive/incendiary mixture; nose impact fuze with self-destruction between 3.5 - 10 seconds; 122 g; MV 1,041 m/s AP-T: Hard core, light body, sintered iron driving band; 114 g; MV 1,090 m/s. Steel cartridge case TP: Steel shell, sintered iron driving band; inert aluminium fuze; 122 g; MV 1,041 m/s TP-T FMK 8 Mod 0: Steel shell with inert loading and tracer capsule; inert fuze; percussion primed; 317 g; MV 1,041 m/s FRANCE Manufacturer Giat Industries Type: HE-I: Steel shell filled 10 g explosive/incendiary mixture; fuzed MR26 impact fuze; 120 g; MV 1,050 m/s HE-I: As above but fuzed MR201B impact fuze with self-destruction between 3.5 - 9 seconds; 120 g; Mv 1,050 m/s HE-I: As above but fuzed MR203B delay impact fuze with self-destruction after 3.5 - 9 seconds; 120 g; MV 1,050 m/s HE-I-T: Two-section steel shell, front section filled 8.5 g explosive/incendiary mixture, rear section filled red tracer; fuzed MR26 impact fuze; 120 g; MV 1,050 m/s HE-I-T: As above but fuzed MR201B impact fuze with self-destruction between 3.5 - 9 seconds; 120 g; Mv 1,050 m/s HE-I-T: As above but fuzed MR203B delay impact fuze with self-destruction after 3.5 - 9 seconds; 120 g; Mv 1,050 m/s AP-I: Hard core in light-alloy body with ballistic cap filled incendiary mixture; 112 g; MV 1,100 m/s AP-T: As above but without incendiary filling and body bored for red tracer; 112 g; MV 1,100 m/s AP-I-T: As for AP-I but with body bored for red tracer; 112 g; MV 1,100 m/s SAP-HE-I: Pointed shell with ballistic cap, filled explosive/incendiary mixture and with base delay fuze MR205 giving self-destruction between 3.5 - 8 seconds; 120 g; MV 1,050 m/s TP: Body of HE-I shell, empty; dummy fuze; 120 g; Mv 1,050 m/s TP-T: Body of HE-I-T shell, front section empty; dummy fuze; 120 g; MV 1,050 m/s GERMANY Manufacturer Diehl GmbH Type: Shrapnel DM 111: A hollow shell containing an ejection charge in the base, above which is an ejection tube and an extension tube. Within these tubes are a number of heavy metal balls. The nose of the shell is closed by a ballistic cap. The shell base contains a striker, cap and delay element. On firing, gas pressure drives the striker forward to fire the cap and ignite the delay. After about 40 ms the delay ignites the ejection charge. The ejection tube is then forced forward; this presses on the extension tube which shears off the shell nose cap and allows the two tubes and the shot to be ejected. The extension tube is prefragmented and shatters to add to the effect. The ejection tube is retarded, permitting the balls to fly free on a cone with an angle of about 3º. About 120 fragments are produced, capable of penetrating 2 mm F40 dural at 70 m range. 118 g; MV 1,055 m/s HE-I M599: Steel two-section shell, front loaded HE, rear loaded red tracer burning 3.4 seconds; nose impact fuze M594 providing self-destruction after 5.5 (±1.5) seconds, or M594A1 providing self-destruction after 5.75 (±2.25) seconds. 122 g; MV 1,045 m/s HE-I DM 81: As M599 but longer shell body and shorter fuze, giving better explosive capacity. Self-destruction by nose fuze after 3.1 or 5.7 seconds nominal time. 120 g; MV 1,055 m/s HE-I DM 101: Pointed piercing shell with ballistic cap containing incendiary composition; shell filled HE; base fuze giving self-destruction after 3.1 or 5.7 seconds nominal time. 120 g; MV 1,055 m/s TP-T DM 48A1: M599 shell body, front filled inert, rear filled red tracer; dummy fuze; 122 g; MV 1,045 m/s Blank: Special training round produced by Rheinmetall for use in a special training barrel. The projectile body has a crimped nose that ruptures only when the necessary pressure has been produced to operate the gun fully automatically. The projectile body remains secured to the case on ejection. Round weight approx 230 g; case content weight 15 g Manufacturer Rheinmetall GmbH Type HE-I: Steel shell filled 6.5 g HE-Incendiary composition; nose impact fuze; 120 g; MV 1,045 m/s HE-I-T DM 81: Steel two-section shell, front filled HE-Incendiary composition, rear filled red tracer; nose impact fuze; 120 g; MV 1,045 m/s AP-I-T DM 43A1: Hard subprojectile in steel body, light alloy ballistic cap with incendiary filler, red tracer; 111 g; MV 1,100 m/s. Penetrates 32 mm armour at 1,000 m APDS-T DM 63: Tungsten carbide subprojectile in light alloy/plastic sabot, red tracer; 108 g; MV 1,150 m/s TP DM 48: Steel two-section shell, filled inert; dummy fuze; 120 g; MV 1,045 m/s TP-T DM 48A1: Similar to DM 48 but with tracer in rear section; 120 g; MV 1,045 m/s Break-up shot DM 78A1: Plastic body filled with dust shot. When fired it produces sufficient resistance in the bore to actuate automatic and recoil mechanisms but after leaving the bore, centrifugal force causes the body to disintegrate within a short distance of the gun. For training, practice in confined areas and gun testing. 120 g; MV 1,045 m/s Blank: Intended for use in special Blank-firing barrel produced by Rheinmetall GmbH to replace operational barrels during training. The case carries a reduced weight of propellant (15 g) sufficient to rupture the crimped nose of the metal body which remains attached to the case when the required mechanism operating temperature has been reached. Round weight is approx 230 g GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: HE-I-T NM75MP: Steel shell with sintered iron driving band, loaded RX51 explosive charge, RS40/41 incendiary charge, and strikerless fuze, with rear tracer burning >4.3 seconds. Self-destruction is provided by means of a heat relay between the tracer and the explosive filling. 120 g; MV 1,045 m/s HE-I-T M599: Steel body, sintered iron driving band, 5.8 g of Hexal 70/30 and an impact fuze M594 with self-destruction after 5.5 seconds. A dark ignition tracer is fitted, burning from 300 to about 2,000 m, and a tracerless version is also available. 120 g; MV 1,055 m/s TP: Steel shell, empty; dummy fuze; 120 g; Mv 1,045 m/s TP-T: Steel two-section shell, front empty with rear filled red tracer; 120 g; dummy fuze; MV 1,045 m/s NETHERLANDS Manufacturer NWM de Kruithoorn BV (now closed) Type: HE-I-T-SD DM 81: Steel two-section shell, front filled HE-Incendiary composition, rear filled red tracer burning for 3.4 seconds; nose impact fuze with self-destruction mechanism after 5.5 or 9 seconds; 120 g; MV 1,045 m/s AP-I-T DM 43A1: Hard core in steel body, light alloy ballistic cap with incendiary filler, red tracer burning for 1.4 seconds; 111 g; MV 1,100 m/s APDS-T DM 63: Tungsten carbide subprojectile in plastic discarding sabot, red tracer burning for 1.2 seconds; 108 g; MV 1,150 m/s TP DM 48: Steel two-section shell, filled inert; light alloy dummy fuze; 120 g; Mv 1,045 m/s TP-T DM 48A1: Similar to DM 48 but with tracer in rear section burning for 3.4 seconds; 120 g; MV 1,045 m/s TP-T DM 98A2: Steel two-section shell, filled inert; plastic dummy fuze; 120 g; MV 1,045 m/s TP-T DM 98A3: Similar to DM 98A2 but with red tracer in rear section burning for 3.4 seconds Break-up shot DM 78A2: Plastic body filled with iron powder. Projectile disintegrates within less than 100 m from the muzzle; gun will function as with normal rounds. For training and practice in very restricted areas and gun testing. 120 g NORWAY Manufacturer Nammo Raufoss Technology A/S Type: Multipurpose NM75 (MP-T-SD): Steel shell with high-explosive and incendiary fillings, the incendiary extending into the nose cap. A red tracer is in the rear, with a heat relay giving self-destruction after 3.7 to 5 seconds of flight. The projectile will function against 1.5 mm dural at 1,000 m range, producing a minimum of 10 fragments, and will penetrate 12.7 mm steel plate to 200 m range and an impact angle of 60º NATO. Red tracer 200 to 2,200 m; projectile weight 122 g; MV 1,045 m/s SOUTH AFRICA Manufacturer Denel (Pty) Ltd ( PMP ) Type: APT: Solid core armour-piercing tracer with ballistic cap; soft iron driving band; steel cartridge case; 110 g; MV 1,100 m/s; penetration 40 mm at 30º at 100 m HE-I: Filled Hexal P30; soft iron driving band; KZA348 nose impact fuze; steel cartridge case; 120 g; MV 1,050 m/s HE-I-T: As HE-I but with base tracer TP: Inert loading; 120 g; MV 1,050 m/s TP-T: As for TP but with base tracer SPAIN Manufacturer EXPAL SA Type: Multipurpose NM75: The shell carries a strikerless compression-ignition fuze in the nose, above a 5.5 g incendiary filling and a 2.8 g explosive filling. On impact the fuze is crushed, igniting the incendiary filling which then ignites the explosive. The explosion gives a forward impulse to the burning incendiary fragments. The rear of the projectile carries a red tracer, which by heat transfer actuates self-destruction between 3.8 to 5.3 seconds. Steel cartridge case DM1001A1 with DM64 percussion primer. MV 1,045 m/s TP-T: Steel two-section shell, front empty with rear filled red tracer; dummy fuze; 120 g; MV 1,050 m/s Manufacturer SANTA BARBARA SA Type: HE-I: Thin-wall steel shell loaded with 10 g of Hexal and fitted with an impact nose fuze providing self-destruction after 6 to 11 seconds flight; 125 g; MV 1,040 m/s SAP-HE-I: Pointed shell, light alloy ballistic cap filled 4.7 g Hexal; base fuze with self-destruction after 6 to 11 seconds; 125 g; MV 1,040 m/s TP-T: Steel two-section shell, front empty, rear with tracer; dummy fuze; 125 g; MV 1,040 m/s SWITZERLAND Manufacturer Oerlikon Contraves Pyrotec AG Type: Mine HE-I MSA: A large capacity steel shell loaded with 10 g of Hexal and fitted with an impact nose fuze providing self-destruction after 6 to 11 seconds flight; 125 g; MV 1,040 m/s Mine HE-I-T MLA: Similar to Type MSA but with the shell body divided into two, the front section loaded 5.6 g of Hexal, the rear containing tracer composition; 125 g; MV 1,040 m/s SAPHEI PSA: A pointed shell with light alloy ballistic cap, filled 4.7 g Hexal and fitted with a base fuze providing self-destruction after 6 to 11 seconds of flight; 125 g; MV 1,040 m/s SAPHEI-T PLA: Similar to Type PSA but with the addition of a base tracer; 125 g; MV 1,040 m/s APHC-T HLA: A light-alloy body containing a core of tungsten carbide and a base tracer; 110 g; Mv 1,100 m/s TP UGA: Uses a similar steel body to the Mine HE-I but of cheaper steel and with a smaller cavity which is left empty and plugged with a dummy fuze; 125 g; Mv 1,040 m/s TP-T ULA: Uses a similar two-section body to the Mine HE-I-T but with a larger tracer section; plugged with dummy fuze; 125 g; MV 1,040 m/sRead More

Nammo

7.62 × 51 mm

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 7.62 mm NATO; 0.308 Winchester Armament All weapons chambered to NATO standard dimensions; notably FN FAL, G3, M14 , BM59 rifles, FN MAG, L4, MG3, M60 machine guns. Development The 7.62 × 51 mm cartridge was devised in the early 1950s as a compromise between the full-sized 0.30-06 and a proposed British 7 mm round; it is little more than the 0.30-06 with a shortened case. Improvements in powder technology allowed the new round to essentially retain the same ballistics as the 0.30-06. Despite this, many of its competitors were far more advanced. The USA used its considerable influence to override all allied objections and the 7.62 × 51 mm was made NATO standard. The 7.62 mm NATO cartridge is too powerful to be a practical assault rifle round, resulting in development of the 5.56 × 45 mm cartridge only a few years after its adoption. The 7.62 mm NATO cartridge remains in wide distribution for use in general purpose machine guns and sniper rifles. Description The case is rimless and bottlenecked, brass or lacquered steel, Berdan or Boxer primed. Cartridges manufactured to the relevant NATO specification will be marked with a cross-in-circle symbol on the head, forming part of the national pattern of headstamp. The standard ball bullet is lead-antimony cored in a GMCS jacket. ABU DHABI Manufacturer Adcom Manufacturing Type: Ball: FMJ; lead core; 9.4 g; MV 850 m/s ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball FMK 1 Mod 0: FMJ; 9.3 g; MV 830 m/s Tracer: FMJ; 8.93 g; MV 810 m/s; red trace visible to 800 m minimum AP FMK 2 Mod 0: FMJ; hardened steel core; 9.75 g; MV 812 m/s AP-I FMK 3 Mod 0: FMJ; steel core, with incendiary filling in the nose of the jacket; 9 g; MV 830 m/s Observing FMK 5 Mod 0: FMJ; steel core, explosive filling so as to produce a smoke ball upon impact. Trajectory matches that of the ball FMK 1 Mod 0; 9 g; MV 830 m/s Ball, special match, FMK 9 Mod 0: FMJ; 9.3 g; 848 m/s. This is a specially assembled and selected ball cartridge for sniping and competition use in bolt-action rifles Blank FMK 8 Mod 0: Plastic case, steel extraction rim, case mouth plugged with wax Blank, Star: Plastic case with extended nose to simulate bullet, steel extraction rim. Alternatively aluminium case with extended crimped nose Blank FMK 14 Mod 0: Aluminium case, rose crimp Grenade launcher FMK 11 Mod 0: Brass case, rose crimp AUSTRIA Manufacturer Hirtenberger AG Type: Ball: FMJ; 9.45 g; MV 837 m/s Tracer: FMJ; dark ignition, red trace to 1,000 m; 8.95 g; V 10 834 m/s AP: FMJ, AP steel core; 9.45 g; MV 837 m/s AP: FMJ, tungsten core, 9.7 g; V 10 850 m/s; penetrates 10 mm armour plate at 300 m. Sniper ball: FMJ; 11.0 g; V 10 760 m/s Match ball: FMJ; 12.3 g; MV 730 m/s Short-range ball: Plastic core, brass jacket; 4.35 g; V 0 905 m/s; max range 750 m; functions: automatic weapons Ball, subsonic: JHP; 12.3 g; V 10 310 m/s Ball: JSP, Sierra bullet; 10.7 g; V 0 780 m/s Ball: JSP, Nosler bullet; 11.6 g; V 0 770 m/s Ball ABC: FMJ; 10.7 g; V 0 750 m/s; gilding metal jacket, lead core. Four longitudinal expansion grooves ensure penetration with controlled expansion Blank: Brass case, crimped Bulletted blank: Brass case, wooden bullet coloured red Grenade launcher: Brass case, crimped BELGIUM Manufacturer FN HERSTAL SA Type: Ball SS77/1: FMJ; 9.3 g; V 25 833.5 m/s Tracer L78: FMJ; 8.93 g; V 25 828 m/s AP P80: FMJ; 9.75 g; V 25 823 m/s. Can penetrate 6 mm steel plate at 100 m API PI86: FMJ; 9 g; V 25 822 m/s. Can penetrate 6 mm steel plate at 100 m Blank: Brass case, rose crimp. Cartridge weight 10 g BOSNIA-HERZEGOVINA Manufacturer Unis Igman d.o.o. Type: Ball: FMJ; 9.4 g; V 23.77 838 m/s Tracer: FMJ; 8.51 g; V 23.77 813 m/s Blank: Rosette crimp BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Match ball: FMJ; 10.5 g; V 25 750 m/s Ball: FMJ, SL; 9.33 g; V 25 838 m/s Tracer: FMJ; 8.75 g; velocity adjusted during manufacture to obtain best match with ball trajectory; V 25 838 m/s AP: FMJ; steel core; 9.55 g; V 25 838 m/s AP-HC: FMJ; tungsten core; 8.3 g; V 25 840 m/s Incendiary M77 : FMJ; 9.4 g; V 25 808 m/s Blank: Brass case, crimped CANADA Manufacturer Simunition Type: Frangible Ball: Solid bronze/copper polymer compound bullet; 3.85 g; MV 800 m/s; max range 600 m Tracer: Bronze/copper polymer compound; 3.85g; MV 800m/s; red trace to 100m; max range 600m CHILE Manufacturer FAMAE Type: Ball: FMJ; 9.5 g; MV 810 m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Ball: FMJ; 11.7 g; MV ? m/s EGYPT Manufacturer Aboukir Engineering Industries Type: Ball: FMJ; 8 g; MV 833 m/s Tracer: FMJ; rear trace to 770 m; MV 827 m/s Manufacturer Shoubra Company Type: Ball: FMJ; lead core; 9.45 g; V 10 837 m/s Tracer: FMJ; red trace; 8.95 g; V 10 834 m/s AP: FMJ; steel core; 9.45 g; V 10 837 m/s FINLAND Manufacturer Nammo Lapua Oy Type: Ball S734: FMJ; 8 g; MV 895 m/s Ball FMJ123: FMJ; 8 g; MV 895 m/s Ball B448: FMJ; 9.72 g; MV 905 m/s Ball GB422: FMJ; 10.85 g; MV 780 m/s Ball B436: FMJ; 11 g; MV 795 m/s Ball EB423: FMJ, Mega; 12 g; MV 765 m/s Ball E375: JSP; 12 g; MV 765 m/s Ball E415: FMJ, Mega; 12 g; MV 765 m/s Ball EX481: JSP, Forex; 12 g; MV 785 m/s Ball GB432: FMJ; 12 g; MV 755 m/s AP492: FMJ; 11g; MV 860m/s Lock Base Sniper: FMJ; 9.72g; MV 850m/s Scenar HPBT Sniper Ball: FMJ; 10.0g; MV 860m/s Scenar HPBT Sniper Ball: FMJ; 10.85g; MV 820m/s FMJBT: FMJ; 11.0g; MV 780m/s Lock Base HPS: FMJ; 11.0g; MV 860m/s Scenar HPBT Sniper Ball: FMJ, SL; 12 g; MV 760 m/s FMJBT: 12.0g; 760m/s Precision ball D47: FMJ, SL; cannelured, for use in automatic rifles; 12 g; MV 760 m/s FMJBT Subsonic: FMJ; 13.0g; MV 320m/s Manufacturer Sako Ltd Type: Ball: FMJ; 6.6 g; MV 950 m/s Ball: FMJ; 8 g; MV 890 m/s Ball: JSP; 8 g; MV 925 m/s Ball: HP; 10.9 g; MV 845 m/s Ball: JHP; 12.3 g; MV 770 m/s SP: 9.7 g; MV 870 m/s SP: 11.7; MV 795 m/s SP: 13 g; MV 745 m/s SP 10.1 g; MV 850 m/s FRANCE Manufacturer Giat Industries Type: Ball SS77/1: FMJ; 9.3 g; MV 850 m/s Ball SS97: FMJ; 9.3 g; MV 850 m/s Ball BO: FMJ; 9.65 g; MV 815 m/s Ball BOPR (precision): HPBT; 9.65 g; 815 m/s Tracer L78: FMJ; base tracer, red trace visible to 777 m; 8.93 g; MV 850 m/s Ball BT (tracer): FMJ; red trace; 8.93 g; MV 820 m/s AP P80: FMJ; steel core; 9.75 g; MV 850 m/s AP-I P86: FMJ; AP steel core, incendiary composition in tip; 9 g; MV 850 m/s Precision : HPBT, Sierra bullet; 10.9 g; MV 820 m/s AP: FMJ, tungsten core; 9.5 g; MV 820 m/s Balle plastique: 3.9 g; MV 810 m/s Practice ball: 2.1 g; MV 1,300 m/s Short-range practice ball: 2.12 g; MV 1,100 m/s Blank: Brass case, crimped Manufacturer SFM Défense Type: Tracer: FMJ; red trace; 9 g; MV 820 m/s TR reduced charge: Plastic; ? g; MV 675 m/s Manufacturer Anthena AP/PPI: 9.5 g; MV 820 m/s. Penetration >10 mm RHA at 200 m; 3.5 mm NATO plate at 1,150 m GERMANY Manufacturer Dynamit Nobel (Geco) Type: Ball DM111: FMJ; 9.45 g; MV 850 m/s. SIntox, non-toxic Tracer: FMJ; red trace; 8.95 g; MV 850 m/s Match S ball: FMJ; 12.3 g; MV 750 m/s Practice KB: This uses a special short-range bullet composed of a light-alloy body with a plastic pointed nose cap. During firing, the nose cap is ejected from the body of the bullet and falls to the ground shortly after leaving the muzzle. The bullet body, now flat nosed, is strongly retarded due to air resistance and therefore has a maximum range approximating some 50 per cent of that of a service bullet. Bullet weight 5.55 g; MV 870 m/s; maximum training range 150 m; maximum flight range 1,150 m Practice PT: This is a one-piece plastic case/bullet with metal extraction rim. The `bullet' portion is weakened so as to detach from the `case' on firing and be ejected from the muzzle. The bullet has a maximum flight range of about 300 m and a maximum training range of 50 m. Bullet weight 0.70 g; MV 1,100 m/s Practice PT-T: Similar to the PT round but with a tracer element in the bullet. 1 g; MV 1,100 m/s Manufacturer Dynamit Nobel (RWS) Type: Target: FMJ; 9.52 g; MV 900 m/s Ball: FMJ; 9.45 g; MV 835 m/s, Sintox Tracer: FMJ; 8.95 g; MV 835 m/s, Sintox Blank: Plastic case, star crimp, Sintex Short range training ball: Plastic bullet, 0.7 g; MV 1100 m/s Short range training tracer: Plastic bullet, 1.0 g; MV 1100 m/s Cone point: FMJ; 9.72 g; MV 870 m/s Ball: PSP; 9.72 g; MV 868 m/s Brenneke ideal: 9.72 g; MV 868 m/s Match: FMJ; 10.87 g; MV 800 m/s Cone point: FMJ; 10.69 g; MV 820 m/s H-Mantle: JHP; 11.66 g; MV 780 m/s Brenneke universal: 11.66 g; MV 777 m/s Match: FMJ; 12.31 g; MV 750 m/s Manufacturer Metallwerke Elisenhutte GmbH (MEN) Type: Ball: FMJ; lead-antimony core, steel jacket, gilding metal envelope; 9.55 g; MV 837±15 m/s. Single or double base propellant, Berdan primed, non-mercuric Ball, DM111: FMJ; lead-antimony core, steel jacket, gilding metal envelope. Single or double base propellant. Boxer primed, using a lead- and barium-free composition. 9.55 g; MV 827±15 m/s Match 23.0033: HPBT; 12.3 g; V 0 785 m/s Match 23.0019: HPBT; 10.9 g; V 0 805 m/s Short-range KB: This uses a plastic-cored bullet and is generally similar to the 5.56 mm KB round described previously. Bullet weight 3 g; MV 1,150 m/s; point-blank range 330 m Blank: Brass case, fluted crimp to represent bullet; 0.75 g single base powder; Berdan primed, non-mercuric. Crimp sealed with black lacquer, primer annulus with green lacquer Armour Piercing: Steel, plated with gilding metal and a tin layer; tungsten carbide core; 11.1 g; V 0 780 m/s GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: Ball: FMJ; ? g; MV 838 m/s Tracer: FMJ; ? g; MV 838 m/s AP-HC: FMJ; steel core; no further details INDIA Manufacturer Indian Ordnance Factory Varangaon Type: Ball M80 : FMJ, SL; 9.65 g; MV 817±9 m/s Tracer M62 : FMJ; 9.2 g; dark ignition, trace 100 to 800 m; MV 817±9 m/s INDONESIA Manufacturer Pindad Type: Ball: MU-2TJ; FMJ; 9.45 g; V 10 837 m/s Tracer : MU-2N; FMJ; 9.15 g; V 10 837 m/s Sniper : MU-2TJS: HPBT; 10.91 g; V 10 815 m/s Ball : MU-2UL: JSP; 10.5 g; V 10 830 m/s Ball : MU-2H: sound level min 90 dB IRAN Manufacturer Ammunition Industries Ball: FMJ; 9 g; MV 835 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball M80 : FMJ; 9.72 g; MV 852 m/s Tracer M62 : FMJ; 9 g; MV 837 m/s AP M61: FMJ; steel core; 9.91 g; MV 852 m/s HP Test: FMJ; 9.72 g; pressure 4,746 kg/cm 2 Grenade launcher: Crimped; pressure 850 kg/cm 2 Ball 30AM: FMJ, SL; 9.72 g; MV 853 m/s Ball 30CM: JSP, SL; 9.72 g; MV 853 m/s Ball 33CM: JSP, SL; 10.69 g; MV 823 m/s Ball 36CM: JSP, SL; 11.66 g; MV 792 m/s ITALY Manufacturer Europa Metalli Type: Ball: FMJ; lead core; 9.6 g; MV 780 m/s Tracer: FMJ; lead core; dark ignition trace visible 40 to >775 m; trajectory crosses ball at 550 m; 9.20 g; MV 782 m/s Short range: Lead/brass jacket with plastic nose; 5.7 g; V 24 810 m/s; maximum range 1,300 m Plastic training: CU/Zn sleeve containing a plastic core, exposed at the tip; 4.6 g; V 24 920 m/s. Maximum range 1,100 m Blank: Brass case elongated and crimped to represent bullet KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball 308A: PSP; 9.72 g; MV 806 m/s Ball 308B: FMJ; 9.52 g; MV 838 m/s Ball 308C: PSP; 11.66 g; MV 735 m/s MALAYSIA Manufacturer SME Ordnance SDN BHD Type: Ball: FMJ; 9.45 g; V 23 838 m/s Tracer: FMJ; 8.95 g; V 23 817 m/s PAKISTAN Manufacturer Pakistan Ordnance Factories Type: Ball L2A2 : FMJ; ? g; MV 810 m/s Tracer L5A3: FMJ; red trace; ? g; MV 795 m/s Blank L10A2: Star crimp, brass case; 12.75 g Blank, Rifle Grenade: Taper crimp, brass case; 13.95 g PORTUGAL Manufacturer INDEP Type: Ball M350: FMJ; lead core, SL; 9.45 g; MV 844 m/s Tracer M351: FMJ; lead core; semi-streamlined, red trace to 775 m; 8.95 g; MV 841 m/s Sniper Ball, M359: FMJ; lead core; 9.45 g; MV 840 m/s Match Ball M435: JHP, S/L; lead core; 11.66 g; MV 755 m/s Match Ball M436: JHP, S/L; lead core; 12.32 g; MV 755 m/s Ball .308 Win: FMJ; lead core; 9.45 g; MV 844 m/s AP M352: FMJ; lead envelope, steel core; 9.45 g; MV 837 m/s HP Test: FMJ; pressure 4,600 kg/cm 2 Blank: Brass case, rose or plain crimp Grenade Launcher: Brass case; chamber pressure RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer Barnaul Machine Tool Building Plant Type: Ball: FMJ; lead core; 9.4 g; MV 820 m/s Novosibirsk Low Voltage Equipment Works, JSC (LVE) Type: Ball SC: FMJ, steel core; 9.45g; MV 820-835m/s Ball AP : FMJ; 9.43g; 820-835m/s SINGAPORE Manufacturer Chartered Ammunition Industries, Singapore Technologies(CAI) Type: Ball M80 : V 24 838 m/s. Conforms to US Mil-Spec MIL-C-46931 Tracer M62 : V 24 838 m/s. Trace to not less than 777 m. Conforms to US Mil-Spec MIL-C-46281 AP M61: V 24 838 m/s. Conforms to US Mil-Spec MIL-C-60617. Penetrates 6 mm chrome nickel plate (Brinell 450) at 100 m SOUTH AFRICA Manufacturer PMP Type: Ball M80 : V 24 838 m/s. Conforms to US Mil Spec MIL-C-46931 Ball: Tracer M62 : V 24 813 m/s. Trace to not less than 777 m. Conforms to US Mil spec MIL-C-46281 Ball: Metal Blank: Crimp sealed with lacquer SPAIN Manufacturer SANTA BARBARA SA Type: Ball: FMJ; ? g; MV 815 m/s Tracer: FMJ; ? g; MV 820 m/s AP: FMJ; ? g; MV 867 m/s Survival: Shot loading over wad; no external bullet; effective range 50 m HP Test: FMJ; pressure 4,200 kg/cm 2 Blank: Long or short crimp SWEDEN Manufacturer Bofors Carl Gustaf Type: Ball: FMJ; 9.45 g; MV 840 m/s Tracer: FMJ; red trace visible 110 to 1,000 m; 9.05 g; MV 825 m/s AP: FMJ; heavy metal penetrator in soft casing; 8.2 g; MV 970 m/s. Armour penetration 13 mm at 300 m Short-range practice: Plastic bullet; 0.7 g Blank: Wooden bullet Tracer: FMJ; 9.1 g; MV 450 m/s. For use in subcalibre training device in 84 mm Carl Gustav RCL gun Manufacturer Norma AB Type: Ball 17623: JSP; 8.4 g; MV 884 m/s Ball 17615: HPBT Berger bullet, 10.9 g; MV 820 m/s Ball 17616: HPBT Sierra bullet, 12.3g; MV 785m/s Ball 17624: JSP; 9.7 g; MV 880 m/s Ball 17679: FMJ; 10.9 g; MV 777 m/s Ball 17628: Plastic Point; 11.6 g; MV 820 m/s Ball 17635: JSP; 11.6 g; MV 820 m/s Ball 17636: JSP; 11.6 g; MV 820 m/s Ball 17660: JSP; 11.6 g; MV 820 m/s Ball 17681: JSP; SL; 11.6 g; MV 750 m/s Ball 17683: JSP; 13 g; MV 750 m/s Manufacturer Nammo Vanasverken AB Type: Sniper 9 AP: FMJ; 9.4g; 840m/s SWITZERLAND Manufacturer RUAG Munition (formerly SM Swiss Ammunition Enterprise Corp) Type: SWISS P Ball: FMJ; 11.4 g; MV 790 m/s SWISS P Armour Piercing: FMJHC; 12.7 g; MV 810 m/s; penetration 300 m; body armour class 4++ Swiss P Ball: HPBT; 10.9 g; MV 805 m/s Swiss P Styx Action: HPBT; 10.8 g; MV 810 m/s SWISS P Subsonic ball: HPBT; 13.0 g; MV 320 m/s Swiss P Target: HPBT; 10.9 g; MV 805 m/s Note: Swiss P cartridges are ballistically matched to a range of 300 m, except Subsonic TURKEY Manufacturer Makina ve Kimya Endüstrisi Kumuru ( MKEK ) Type: Ball: FMJ; 9.3 g; MV 850 m/s Tracer: FMJ; red trace; 9 g; MV 835 m/s Blank: Brass case, star crimp UNITED KINGDOM Manufacturer British Aerospace Defence Limited, Royal Ordnance Division Type: Ball L2A2 : FMJ; 9.33 g; MV 855 m/s (NATO Qualified) Ball, sniper, L38A1: FMJ; 9.33 g; MV 870 m/s Ball, greenspot target: FMJ; 9.33 g; MV 870 m/s; FOM Tracer L5A3: FMJ; red trace to 1,000 m; 8.75 g; MV 855 m/s Sniper L38A1: FMJ; 9.33 g; MV 850 m/s Target: FMJ; 9.33 g; MV 850 m/s Blank L13A2: Brass case, crimped nose UNITED STATES OF AMERICA Manufacturer Black Hills Ammunition Type: Ball: Hollow point match; 10.8 g; MV 807 m/s Ball: Hollow point match; 11.3 g; MV 792 m/s Ball: Ballistic tip; 10.6g; MV 807m/s Manufacturer Cor-Bon Ammunition Type: Ball: JHP; 8.1 g; MV 960 m/s Manufacturer Eldorado Cartridge Corp (PMC Ammunition) Type: Ball: FMJ; 9.5 g; MV 839 m/s Ball: FMJ; 10.8 g; MV 792 m/s Ball Match: HPBT; 10.8 g; MV 808 m/s Manufacturer Engel Ballistic Research Type: Subsonic Ball (Thumper): FMJ; 11.6 g; MV 305 m/s Subsonic Ball (PBS): JHP; 10.6 g; MV 305 m/s Subsonic Ball: FMJ; 14.2 g; MV 305 m/s Manufacturer Federal Cartridge Company Type: Ball: JHP match; 10.88 g; MV 792 m/s Ball: JHP match; 11.34 g; MV 792 m/s Ball: JHP match; 10.04 g; MV 899 m/s Ball: FMJ; 9.72 g; MV 859 m/s Ball: Bonded SP; 10.69 g; MV 945 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 8.42 g; MV 914 m/s Manufacturer Government contractors Type: Ball M59 : FMJ; non-streamlined, lead core; 7 g; MV 838 m/s Ball M80 : FMJ, SL; lead core; 9.65 g; MV 838 m/s Ball, Duplex, M198 : Front bullet 5.44 g; rear bullet 5.5 g; MV 838 m/s (front); 670 m/s (rear) Ball, frangible, M160 : 7.06 g, formed of bakelite and powdered lead. Not to perforate 0.476 mm Dural at 25 m. MV 402 m/s Ball, Match, M118: FMJ; 11.37 g; MV 777 m/s Tracer M16 : FMJ; semi-streamlined, lead tip filler; base tracer; 6.93 g Tracer M27: FMJ; similar to M16 but dark ignition; 6.45 g Tracer M62 : FMJ; 9.2 g; dark ignition red trace 100-800 m; MV 838 m/s AP M61: FMJ; steel core; 9.75 g; MV 838 m/s Grenade M64: star crimp; MV 48 m/s with 700 g grenade Manufacturer Hansen Cartridge Company Type: Ball: FMJ, SL; 9.7 g; MV 852 m/s Ball: JSP; 9.7 g; MV 870 m/s Ball: JSP; 11.7 g; MV 780 m/s Ball: FMJ; 8.1 g; MV 923 m/s Manufacturer HJ Ballistic Research Type: Subsonic Ball: FMJ; 12.9 g; MV 297 m/s Manufacturer Hornady Manufacturing Company Type: Frangible Ball: TAP Precision; 10.8 g; MV 822 m/s Manufacturer Longbow Incorporated Type: Frangible ball: Copper Powder and Epoxy; 7.7 g; MV 792 m/s Manufacturer Remington Arms Company Inc Type: Accelerator: APDS Ball; FMJ in plastic sabot; 3.6 g; MV 1,243 m/s Ball: PSP; 9.7 g; MV 860 m/s Ball: PSP; 11.7 g; MV 798 m/s Ball: SP; 11.7 g; MV 798 m/s Ball: Hollow point match; 10.9 g; MV 817 m/s Ball: Extended range; FMJ; 11.5 g; MV 798 m/s Manufacturer Talon Manufacturing Company Type: Ball: JHP Match; 11.3 g; MV 810 m/s Manufacturer Winchester-Olin Type: Ball M80 : FMJ; 9.52 g; V 25 838 m/s Tracer M62 : FMJ; red trace; 9.2 g; V 25 838 m/s Ball, SLAP, M948: 5.56 mm bullet in plastic sabot; 4.02 g; V 25 1,220 m/s Tracer M959: 5.56 mm bullet in plastic sabot; red trace; 3.82 g; V 25 1,220 m/s Dim tracer XM276: FMJ; trace visible only through night vision devices; 9.07 g; V 25 838 m/s Match ball M852: FMJ; 10.89 g; V 25 777 m/s Special match ball M118: FMJ; 11.15 g; V 25 777 m/s Ballistic Silvertip Match: FMJ; 10.9 g; MV 814 m/s SLAP Sniper: 5.56 mm tungsten bullet in plastic sabot; 3.36 g; MV 1,340 m/s Blank, M82 : Brass case extended to simulate bullet; roll crimp YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: FMJ; 9.4 g; MV 825 m/s Tracer: FMJ; red trace, dark ignition, visible from 115 m to >830 m; 8.5 g; MV 800 m/s Blank: Steel case, crimped Ball: FMJ; 9.4 g; MV 865 m/s Ball: JSP; 9.7 g; MV 844 m/s Ball: JSP; 11.7 g; MV 738 m/s HP test Type 1: FMJ; 9.4 g; pressure 4,200±150 kg/cm 2 HP test Type 2: FMJ; 9.4 g; pressure 5,000±100 kg/cm 2Read More

SAKO LTD

9 × 19 mm Parabellum

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

9 × 19 mm Parabellum

Synonyms 9 × 19 mm; 9 mm Luger; 9 mm Patrone '08 Armament Any pistol marked `9 × 19', `9 mm Luger' or any other synonym; the more notable being the Parabellum (Luger), Browning GP35, Beretta 92, SIG P225 and so on, and pistols by Astra, Bernardelli, Star, FEG, Walther, Heckler and Koch, Smith & Wesson, Ruger and many others. Also the predominant sub-machine gun cartridge throughout the world. It has been used in revolvers (Ruger, Smith & Wesson and Manurhin, for example) and semi-automatic carbines (Marlin), though in lesser numbers. It has recently been designated by Russia as a replacement for the 9 × 18 mm. Development Developed in 1902 by Georg Luger in order to improve the stopping power of his pistol; the mouth of the 7.62 mm Parabellum case was widened and a 9 mm bullet was inserted to meet German Navy demand. It was adopted by the German Navy in 1904 and by the army in 1908. In its original form it used a cylindro-conoidal bullet with a flat tip. This showed a tendency to jam in early sub-machine guns and was replaced during 1917 with an ogival-shaped bullet which has remained the military standard; bullets of the original shape are still available commercially. Since its introduction, the 9 mm Parabellum has been universally accepted and manufactured all over the world, with the exception of the former Warsaw Pact countries, but most of these have also undertaken its production for commercial reasons and some are now producing pistols in this calibre. In January 2000, even the People's Republic of China announced the adoption of an indigenously designed 9x19mm pistol and a special high penetration cartridge for it, also an indigenous design. Description A rimless, straight taper case with Berdan or Boxer priming; due to its broad-based manufacture brass, steel, aluminium and alloy cases have been made and every sort of bullet has been tried. The military standard is a conventional lead-cored bullet, steel jacketed with gilding metal envelope and an ogival head pattern, weighing 7.45 g. ABU DHABI Manufacturer Adcom Manufacturing Type: Ball: FMJ; lead core; 7.45 g; MV 384 m/s ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball FMK 5 Mod 0: FMJ; 8 g; MV 245 m/s Tracer FMK 2 Mod 0: FMJ; red trace to over 200 m; 7.18 g; MV 340 m/s ARMENIA Manufacturer Neutron Research and Production Company Type: Ball: FMJ, steel core; 8 g; MV 350-375 m/s AUSTRIA Manufacturer Hirtenberger AG Type: Ball: FMJ; 8 g; MV 380 m/s Combat match: FMJ; 7.5 g; MV 370 m/s Ball, police `defender': JHP; 8.0 g; MV 360 m/s Tracer: FMJ; red trace to 350 m; 7.0 g; MV 380 m/s Frangible, non-toxic: 4.8 g bullet made from special non-toxic metal, free from Sb, Ba, Pb; MV 500±15 m/s HP test: FMJ; 8 g; pressure >=3,200 bar Training tracer: Special round for use with subcalibre device in Miniman anti-tank weapon. Truncated conical 5 g bullet with red tracer burning 1.5 seconds; MV 165 m/s. FL (flat nose): JHP, 8.0 g; V 10 360 m/s EMB: FMJ, controlled expansion, 5.0 g; MV 500 m/s BELGIUM Manufacturer FN HERSTAL SA Type: Ball: FMJ; 8 g; MV 350 m/s Blank: Brass case, rose crimp; cartridge weight 5 g BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball: FMJ; 8.03 g; MV 384 m/s Ball: JHP; 7.45 g; MV 400 m/s BULGARIA Manufacturer Arsenal Type: Ball: FMJ; 8.03 g; V 10 380 m/s Manufacturer NITI Kazanlak Type: Ball, non-lethal: Rubber bullet; 2.7-2.8 g; MV 350 m/s CANADA Manufacturer SNC Industrial Technologies Inc Type: Ball CDN Mk 1: FMJ; 7.5 g; MV 388 m/s Ball: JHP; 7.45 g; MV 364 m/s Ball: JHP; 9.53 g; MV 297 m/s Ball: JHP; 7.45 g; MV 354 m/s Blank C30: Brass case, star crimped FX red marker: Plastic in plastic sabot; 0.5 g; MV 125 m/s; max range 100 m. Manufactured by SIMUNITION, a Division of SNC Technologies Inc for close-quarter combat training CHILE Manufacturer FAMAE Type: Ball: FMJ; 7.55 g; MV 370 m/s CHINA , PEOPLE'S REPUBLIC Manufacturer China North Industries (NORINCO) Type: Ball: FMJ; 8 g; MV 345 m/s Ball: FMJ; 7.5 g; MV 376 m/s Ball, Model DAP92 High Penetration: FMJ; 8g; MV 360m/s CZECH REPUBLIC Manufacturer Sellier & Bellot Type: Ball: FMJ; steel core; 7.5 g; MV 398 m/s Ball: FMJ; steel core; 6.45 g; MV 452 m/s Semi-wadcutter: Lead; 8 g; MV 372 m/s EGYPT Manufacturer Shoubra Company Type: Ball: FMJ; 7.45 g; MV 380 m/s FINLAND Manufacturer Nammo Lapua Oy Type: Combat ball 4319613: FMJ; 8 g; MV 355 m/s Ball 4319200: FMJ; 7.5 g; MV 405 m/s Ball 4319177: FMJ; 8 g; MV 320 m/s Ball 4319181: JHP; 8 g; MV 355 m/s Ball 4319230: FMJ; 8 g; MV 400 m/s Police ball L434: FMJ; 3.25 g; MV 530 m/s Combat trainer 4319208: FMJ; 8 g; MV 355 m/s Ball: CEPP Super; 7.8 g; MV 360 m/s Ball: CEPP Extra; 7.8 g; MV 360 m/s Ball: CEPP Extra Subsonic; 9.7 g; MV 315 m/s Manufacturer Sako Ltd Type: Ball: FMJ; 7.5 g; MV 355 m/s Ball: FMJ 7.4 g; MV 360 m/s (non-ricocheting security) FRANCE Manufacturer Giat Industries Type: Ball BO: FMJ; 8 g; MV 395 m/s Tracer T: FMJ; red trace; 8 g; MV 385 m/s Subsonic ball BO SUB: 9.6 g; MV 295 m/s Ball EXP: JSP; 5.5 g; MV 450 m/s Plastic ball TRN: Brass case; 4.1 g plastic bullet; MV 540 m/s Blank: Brass case, rose crimp Blank: Plastic case Manufacturer SFM Défense Type: Ball `UL': JSP; 3.2 g; MV 655 m/s Tracer: 8 g; MV 418 m/s THV: 2.9 g; MV 780 m/s; penetrates 2 mm steel at 7 m Blank: Plastic case GERMANY Manufacturer Dynamit Nobel (RWS) Type: Ball DM41: FMJ; 8 g; MV 380 m/s; Sintox, non-toxic Ball: DM51: FMJ; 8g; MV 395 m/s, Sintox Tracer: FMJ; red trace; 7.5 g; MV 375 m/s Ball: Solid point; Action 1; 5.4 g; MV 430 m/s, Sintox Ball: Solid point; Action 3; 5.9 g; MV 410 m/s, Sintox Ball: SP; 8.0 g, MV 350 m/s Ball: PSP; 8.0 g, MV 350 m/s Blank: Plastic, brass case. Practice PT: Plastic; 0.42 g; MV 410 m/s Manufacturer Metallwerke Elisenhutte GmbH (MEN) Type: Ball DM 11A1B2: FMJ; lead-antimony core, steel jacket, gilding metal envelope; single or double base propellant, Berdan primed, non-mercuric; 8 g; MV 395±15 m/s Schadstoffarm: This is a special lead- and barium-free round designed for practice shooting in indoor ranges. Although the bullet is the standard lead-cored FMJ pattern, the primer cap has a special non-toxic composition which has minimal emission of lead and barium, thus considerably reducing the health hazard common with indoor ranges. 8 g; MV 385±15 m/s Subsonic: For use in silenced arms; FMJ; lead-antimony core, steel jacket with gilding metal envelope; 9.5 g; MV 300±15 m/s fired in MP5SD sub-machine gun. Quick Defence 1 (QD 1): This is a special bullet intended to open out very rapidly on impact, delivering maximum energy as quickly as possible. The bullet is of gilding metal, and is virtually a hollow point type with a ball placed in the mouth of the hollow. The shape thus resembles the normal ogive and feeds through automatic weapons without causing problems. On impact the ball is driven back into the hollow, spreading the walls of the bullet to give a greater impact area. 5.2 g; MV 440±15 m/s Quick Defence 2 (QD 2): This is similar to the QD 1 round described previously but is designed so that the deformation of the bullet and hence the energy transfer is somewhat less; 6.0 g; gilding metal bullet; MV V 10 420±15 m/s QD Tracer: 6.3 g; MV 44±15 m/s; red trace to 50-70 m QD - PEP satisfies German Police Technical Specifications; 5/9 g; V 3 420 m/s GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: Ball: FMJ, ogival; 8 g; MV 330 m/s HUNGARY Manufacturer Mátravidéki Fémmüvek Type: Ball: FMJ, cylindro-conoidal; 8 g; MV 360 m/s Ball: FMJ, ogival; 8 g; MV 360 m/s INDIA Manufacturer Indian Ordnance Factory Khadki Type: Ball Mark 2Z: FMJ, ogival; 7.45 g; MV 396± 15 m/s at 18.5 m INDONESIA Manufacturer Pindad Ball MU-1TJ : FMJ; 8 g; V 12.5 380 m/s Ball MU-1SS ; FMJ; 10.14 g; V 12.5 300 m/s Blank MU-1H: sound level min 90 dB Anti Riot MU-1PHH: Plastic/Rubber Bullet; 0.75 g; V 10 200 m/s IRAN Manufacturer State Ammunition Industries Type: Ball: FMJ; 7.45 g; MV 385 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Carbine ball: FMJ; 7.45 g; MV 420 m/s Carbine tracer: FMJ; 7.45 g; MV 420 m/s Pistol ball: FMJ; 7.45 g; MV 325 m/s Subsonic ball: FMJ; 10.24 g; MV 286 m/s Subsonic ball: FMJ; 8.04 g; MV 314 m/s Pistol ball special: FMJ; 7.45 g; MV 384 m/s Pistol ball +P: FMJ; 7.45 g; MV 450 m/s Carbine ball +P: JHP; 7.45 g; MV 430 m/s Carbine ball +P: FMJ; 7.45 g; MV 420 m/s Luger ball: JHP; 7.45 g; MV 354 m/s Luger ball: FMJ; 7.45 g; MV 343 m/s Manufacturer Kalia Israel Cartridge Company Ltd Type: Ball: FMJ; 7.45 g; MV 335 m/s Ball: FMJ; 7.45 g; MV 351 m/s Ball: FMJ; 7.45 g; MV 370 m/s ITALY Manufacturer Europa Metalli Type: Ball: FMJ; lead core; 7.5 g; MV 380 m/s Manufacturer Fiocchi Munizioni SpA Type: Ball: FMJ; 7.45 g; MV 415 m/s Ball: FMJ; 8 g; MV 390 m/s Ball: Lead; 8 g; MV 322 m/s Manufacturer Government arsenals Type: Ball M38: FMJ; 8 g; MV 305 m/s KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball 9A: FMJ; 7.45 g; MV 353 m/s Ball 9B: JHP; 7.45 g; MV 356 m/s MALAYSIA Manufacturer SME Ordnance SDN BHD Type: Ball: FMJ; 7.45 g; MV 396 m/s MEXICO Manufacturer Aguila Industrias Tecnos Type: Ball: FMJ; 8.03 g; MV 340 m/s Ball: FMJ; 7.45 g; MV 381 m/s PAKISTAN Manufacturer Pakistan Ordnance Factories Type: Ball 2Z: FMJ; ? g; MV 395 m/s POLAND Manufacturer Zaklady Metalowe (Mesko) Type: Ball: FMJ, ogival; 8 g; MV 350 m/s Ball: JSP; 8 g; MV 350 m/s PORTUGAL Manufacturer INDEP Type: Ball M347: FMJ; lead core; 7.45 g; MV 396 m/s Ball M419: FMJ; lead core, hardened steel jacket; 8 g; MV 396 m/s Ball, luger: FMJ; lead core; 8 g; MV 392 m/s Ball, training, M420: Ogival lead; 7.45 g; MV 377 m/s Manufacturer Prvi Partizan Type: Ball: FMJ; 8 g; MV 390 m/s Ball: FMJ; 8 g; MV 365 m/s Ball: FMJ; 7.5 g; MV 407 m/s ROMANIA Manufacturer Arsenalul Armatel Type: Ball: FMJ; 7.45g; MV 380m/s Manufacturer SN ROMARM SA Type: Ball: FMJ; 7 g; MV 380 m/s Ball: FMJ; 8 g; MV 380 m/s Manufacturer Romtehnica Type: Ball: FMJ; 7.45 g; MV 380 m/s RUSSIAN FEDERATION AND ASSOCIATED STATES (CIS) Manufacturer JSC Barnaul Type: Ball: FMJ; 7.5 g; MV 370 m/s Manufacturer JSC LVE (Novosibirsk Low Voltage Equipment Works) Type: Ball: 8.8 g; V25 350 m/s Manufacturer Tula Cartridge Works Type: Ball: FMJ; 7.46 g; V10 358 m/s SLOVAKIA Manufacturer Povazské strojárne Povzbroj Type: Ball: FMJ; 7.5 g; V 12.5 360 m/s Manufacturer Technopol, Military and Police Group Type: Ball: FMJ; 6.15 g; V 25 389 m/s Ball: FMJ; 6.15 g; V 25 397 m/s Ball: FMJ; 7.5 g; V 25 348 m/s Ball FP: FMJ Flat Point; 7.5 g; V 25 350 m/s Ball: FMJ; 7.5 g; V 25 349 m/s Ball LFN: Lead Flat Nose; 7.8 g; V 25 337 m/s Ball: FMJ; 8 g; V 25 341 m/s Ball FP: FMJ Flat Point; 8 g; V 25 345 m/s Ball: FMJ; 8 g; V 25 357 m/s SOUTH AFRICA Manufacturer Denel (Pty) Ltd Type: Ball: FMJ; 7.45 g; MV 401 m/s Manufacturer PMP Type: Ball: FMJ; 6.16 g; MV 405 m/s Ball: FMJ; 7.45 g; MV 349 m/s Tracer: FMJ; 6.95 g; MV 386 m/s Blank: Rosette crimp Subsonic: 8.13 g; MV 340 m/s MONAD: FMJ, plastic ogive 3.5 g; MV 575 m/s. This bullet is designed to defeat auto glass and steel with little or no subsequent deflection SPAIN Manufacturer SANTA BARBARA SA Type: Ball: FMJ; ? g; MV 425 m/s SWEDEN Manufacturer Bofors AB Type: HP: FMJ, lead-antinomy core inside steel jacket; 6.75 g; MV 420 m/s. Designed to penetrate body armour Ball M39B: FMJ; 6.8 g; MV 420 m/s Practice M39: Steel ball 5.3 mm diameter held in plastic bullet. Total bullet weight 1.4 g Ball HP: Armour-piercing steel bullet, gilding metal clad, lead core; 6.75 g; MV 420 m/s Blank M39: Plastic bullet Tracer FFV740: FMJ; 6 g; used in Miniman anti-tank weapon subcalibre trainer Tracer FFV840: FMJ; 5.5 g; MV 300 m/s. Used in Carl Gustaf RCL gun subcalibre trainer Manufacturer Norma Precision AB Type: Ball: Bronze, ogival; 6.7 g; MV 390 m/s Ball 19021: JHP; 7.4 g; MV 355 m/s Ball 19022: FMJ; 7.5 g; MV 355 m/s Ball: Cylindro-coniodal; 7.5 g; MV 355 m/s Ball 19026: JSP; 7.5 g; MV 355 m/s Manufacturer Nammo Vanasverken AB Type: Ball HP: FMJ; 6.75 g; MV 440 m/s Ball: 7.5 g; MV 380-410 m/s SWITZERLAND Manufacturer RUAG Munition (formerly SM Swiss Ammunition Enterprise Corp) Type: Ball: FMJ; 8 g; MV 365 m/s Self: FMJ; 6.4 g; MV 400 m/s (led-free projectile) Ball Subsonic: FMJ; 9.5 g; MV 315 m/s SeCa: JDP; 6.5 g; MV 400 m/s (lead-free projectle) Subsonic Ball: JHP; 9.5 g; MV 315 m/s TURKEY Manufacturer Makina ve Kimya Endüstrisi Kumuru ( MKEK ) Type: Ball: FMJ, ogival; 8 g; MV 350 m/s UNITED KINGDOM Manufacturer British Aerospace Defence Limited, Royal Ordnance Division Type: Ball: FMJ; 7.45 g; V 16 395 m/s Ball: JSP; 6.16 g; V 16 425 m/s Manufacturer Cobra Gun Company Type: Ball: HSA Flechette; MV 490 m/s Manufacturer Conjay Arms Company Type: Carbine ball: CBXX; 6.8 g; MV 460 m/s in 254 mm barrel Carbine AP: CBAP; 5.51 g; MV 495 m/s; penetration of RHA as for Pistol AP above; it will also drive plugs from the rear of the same material at 5.5 mm thickness. This round is no longer in production. UNITED STATES OF AMERICA Manufacturer 3-D Type: Ball: FMJ; 9.52 g; MV 290 m/s Ball: FMJ; 8.0G; MV 320 m/s Ball: FMJ; 7.45 g; MV 350 m/s Ball: JHP; 9.52 g; MV 294 m/s Ball: JHP; 7.45 g; MV 350 m/s Ball: Lead, RN; 8.1 g; MV 320 m/s Manufacturer Black Hills Ammunition Company Type: Ball: FMJ; 7.4 g; MV 350 m/s Ball: JHP; 7.4 g; MV 350 m/s Ball +P: JHP; 7.4 g; MV 400 m/s Ball +P: JHP; 8.0 g: MV381 m/s Ball: JHP; 8 g; MV 350 m/s Ball: FMJ; 9.5 g; MV 300 m/s Ball: JHP; 9.5 g; MV 300 m/s Manufacturer CCI-Speer Type: Ball: FMJ; 7.45 g; MV 350 m/s Ball: JHP; 7.45 g; MV 351 m/s Ball +P: 8.0 g; 371 m/s Ball: JSP; 8 g; MV 352 m/s Blazer : JHP; 7.5 g; MV 349 m/s Blazer : TMJ; 7.5 g; MV 349 m/s Blazer : TMJ; 8 g; MV 332 m/s Blazer : TMJ; 9.5 g; MV 300 m/s Manufacturer Cor-Bon Ammunition Type: Ball +P: JHP; 5.8 g; MV 457 m/s Ball +P: JHP; 7.4 g; MV 411 m/s Ball +P: JHP; 8.1 g; MV 381 m/s Manufacturer Delta Defense Inc Type: Frangible: 5.51 g; MV 434 m/s Manufacturer Eldorado Cartridge Corp (PMC Ammunition) Type : Ball : JHP: 6.2 g; MV 381 m/s Ball : JHP; 8.0 g; MV 332 m/s Ball : FMJ; 7.5 g; MV 353 m/s Ball : JHP; 7.5 g; MV 356 m/s Ball : FMJ; 8.0 g; MV 338 m/s Manufacturer Federal Cartridge Company Type: Ball: SJHP; 6.2 g; MV 412 m/s Ball: FMJ; 8 g; MV 341 m/s Ball: JHP; 7.5 g; MV 354 m/s Ball,+P+: 7.45 g; MV 396 m/s Hydra-Shok: 9.5 g; MV 320 m/s Manufacturer Glaser Safety Slug Inc Type: Ball: Glaser Blue; 5.18 g; MV 503 m/s Ball: Glaser Silver; 5.18 g; MV 503 m/s Manufacturer Longbow, Inc Type: Frangible ball: Copper powder and epoxy; 6.2 g; MV 442 m/s Manufacturer Mullins Ammunition Type: Frangible ball: FMJ; 8.0 g; MV 387 m/s Frangible ball: FMJ; 10.2 g; MV 289 m/s Frabgible ball: FMJ; 12.3 g; MV 259 m/s Manufacturer Remington Arms Company Inc Type: Ball: JHP; 7.45 g; MV 354 m/s Ball: FMJ; 8 g; MV 341 m/s Ball: FMJ; 7.45 g; MV 350 m/s Subsonic ball: JHP; 9.5 g; MV 302 m/s Subsonic ball: BJHP; 9.5 g; MV 302 m/s Ball: JHP; 5.72 g; MV 457 m/s Ball: JHP; 7.5 g; MV 381 m/s Frangible Ball: FMJ; 6.5 g; MV 372 m/s, nontoxic Manufacturer Winchester-Olin Type: Ball: JSP; 6.17 g; MV 413 m/s Ball: FMJ (gilding metal jacket); 7.5 g; MV 352 m/s Ball: FMJ (brass alloy jacket); 7.5 g; MV 352 m/s Ball: JHP; 7.5 g; MV 374 m/s Ball, nontoxic: FMJ; 7.45 g; MV 363 m/s Ball, Ranger T: JHP; 8.0 g; MV 411 m/s Ball, Ranger T: JHP; 9.5 g; MV 303 m/s Ball, Partition Gold: JHP; 8.0 g; MV 341 m/s Ball, Silvertip: JHP; 7.45 g; MV 373 m/s Ball, Silvertip: JHP; 9.5 g; MV 308 m/s Ball M882: FMJ; 8.03 g; V 16 375 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball: FMJ; 7.45 g; MV 343 m/s Ball: FMJ; 8 g; MV 327 m/s Ball: JHP; 7.45 g; MV 344 m/s Ball: Lead, RN; 8 g; MV 328 m/s Ball: FMJ, cylindro-conoidal; 8 g; MV 328 m/s Subsonic Ball: FMJ; 9.5 g; MV 296 m/s Subsonic Ball: JHP; 9.5 g; MV 297 m/sRead More

SAKO LTD

0.50 Browning

Ammunition, Missiles and precision weapons

Ammunition, Missiles and precision weapons

Synonyms 12.7 × 99 mm Armament Browning M2 and M2 HB machine guns; M85 machine gun; also used in Barrett, Harris and similar anti-materiel rifles; CIS 50MG. Development This cartridge was developed in the 1920s. Its design was greatly influenced by the German 13 mm Tank und Flieger (TuF) machine gun round. The 0.50 Browning gun was originally devised as an anti-aircraft weapon, but during 1940 to 1945 it achieved prominence as an aircraft, tank and infantry support gun. Since then it has been widely distributed and adopted by almost every country outside the former Soviet Bloc. Ammunition has been manufactured in many countries but largely to US specifications, although since the 1970s several manufacturers have developed more potent rounds of their own design. The basic design was intended to extract as much performance as possible and there is not a great deal of room for improvement, except in the development of complex bullets to improve terminal effects. With the advent of widespread use of anti-matérial rifles worldwide, several manufacturers have developed match grade ammunition for use in these weapons. This ammunition is manufactured to a higher level of precision and achieves far greater accuracy than most ammunition manufactured for use in machine guns. Description A rimless, brass, bottlenecked case, Berdan or Boxer primed. The standard bullet is ball, using a steel core in lead support, steel jacket and gilding metal envelope. In view of the tactical use of this weapon, AP-I and similar bullets with better terminal effects are used more commonly today. ABU DHABI Manufacturer Adcom Manufacturing Type: Ball: FMJ; lead core; 45 g; MV 887 m/s Tracer: AP-I and AP-I-T are also available but no details have been provided. ARGENTINA Manufacturer Direccion General de Fabricaciones Militares Type: Ball FMK 1 Mod 0: FMJ; steel core in lead sleeve, gilding metal jacket; 45 g; MV 802 m/s Tracer FMK 5 Mod 0: FMJ; steel core in lead sleeve, tracer capsule; 43.5 g; MV 812 m/s AP FMK 6 Mod 0: FMJ; steel core; 45 g; MV 800 m/s AP FMK 9 Mod 0: FMJ; steel core; 45 g; MV 800 m/s. Fitted with electric primer and used as a subcalibre training round for the 105 mm FMK 4 Mod 0 recoilless gun Blank FMK 7 Mod 0: Brass case, rose crimped BELGIUM Manufacturer FN HERSTAL SA Type: Ball M33: FMJ; 43 g; V 25 910 m/s Tracer M17 : FMJ; base tracer, red trace to >1,500 m; 42 g; V 25 910 m/s API M8 : FMJ; AP steel core; incendiary composition in tip; 43.1 g; V 25 910 m/s; penetrates 15 mm steel plate of 450 Brinell at 200 m. Ballistically equivalent to M33 API-T M20 : FMJ; base tracer; red trace visible to >1,500 m; AP steel core; incendiary composition in tip 40.3 g; V 25 910 m/s; penetrates 15 mm steel plate of 450 Brinell at 200 m APEI: This round uses a bullet with a solid steel body, supporting a heavy alloy penetrative core inside a brass jacket. The space between core and jacket is filled with a non-phosphorus explosive/incendiary mixture. 43.5 g; V 25 910 m/s. The core will defeat 6-11 mm armour steel (400 Brinell) up to 1,000 m range, and will also defeat plastic armour at angles up to 80º. A 1 mm steel or 2 mm dural plate is sufficient to detonate the projectile, which occurs about 200 mm after piercing the target skin Blank: Brass case, crimped. Cartridge weight 57.5 g BOSNIA-HERZEGOVINA Manufacturer Unis Igman d.o.o. Type: Ball M33: FMJ; 45 g; V 23.77 887 m/s Tracer M17 : FMJ; 40.3 g, green tip; V 23.77 872 m/s APIT M20 : FMJ; 40.2 g, black/red tip; V 23.77 887 m/s API M8 : FMJ; 42.9 g; V 23.77 887 m/s Blank: Rosette crimp at case mouth BRAZIL Manufacturer Companhia Brasileira de Cartuchos Type: Ball M2: FMJ; 45.2 g; V 25 856 m/s Ball M33: FMJ, SL; steel core; 42.4 g; V 25 887 m/s Tracer M1: FMJ; red trace to 1,600 m; 42.6 g; V 25 823 m/s Tracer M17 : FMJ; red trace visible to 1,800 m; 40.8 g; V 25 872 m/s Tracer M33: FMJ; red trace; 37.8 g; V 25 887 m/s AP-I-T M20 : FMJ, SL; steel core; incendiary tip filler, red trace; 39.7 g; V 25 887 m/s AP M2: FMJ, SL; steel core; 45.5 g; V 25 856 m/s AP-HC: FMJ; alloy steel core; 49.2 g; V 25 830 m/s Incendiary M1: FMJ, SL; steel sleeve; 40.8 g; V 25 900 m/s AP-I M8 : FMJ, AP; steel core; incendiary tip filler; 42.6 g; V 25 887 m/s AP-I-HC: FMJ; alloy steel core; incendiary composition in nose; 50 g; V 25 830 m/s CANADA Manufacturer SNC Industrial Technologies Inc Type: Ball M2: FMJ; 44.5-44.97 g; MV 856 m/s Type: Ball M33: FMJ; 41.4-42.9 g; MV 881 m/s Tracer M17 : FMJ; red trace visible to 1,850 m; 43 g; MV 872 m/s AP-T C44: FMJ; tungsten carbide core; red trace, dark ignition; visible 150 to 1,200 m; 62 g; MV 785 m/s; penetration 22 mm/0º/800 m Blank C48: Brass case, star crimped; cartridge weight 58 g Ball: FMJ (Sniper Elite API); 48.8 g; V 24 880 m/s Ball: FMJ (Sniper Elite TP-S); 45.5 g; V 24 880 m/s EGYPT Manufacturer Shoubra Company Type: Ball: FMJ, SL; steel core; 43.35 g; MV 860 m/s AP-I: FMJ; steel core with incendiary filling in nose; 43.35 g; MV 860 m/s Tracer: FMJ; dark ignition tracer, duration 2 seconds. 43.7 g; MV 845 m/s AP-I-T: FMJ, steel core, dark ignition tracer, duration 2 seconds; 41.6 g; MV 845 m/s FRANCE Manufacturer Giat Industries Type: Ball M33: FMJ, SL; steel core; 41.7 g; MV 900 m/s Tracer M33T: FMJ; red trace; 42.7 g; MV 900 m/s Anti-ricochet balle O: 40.1 g; MV 910 m/s Anti-ricochet tracer T: 40.1 g; MV 910 m/s AP M2: FMJ, SL; steel core; 41.85 g; MV 900 m/s AP-I M8 : FMJ; AP steel core; incendiary tip filler; 42.2 g; MV 900 m/s AP-I-T M20 : FMJ, SL; steel core; incendiary tip filler, red trace; 39.66 g; MV 900 m/s AP-I-HC: FMJ; hard core; incendiary tip filler; 51 g; MV 882 m/s Manufacturer SFM Défense Type: Ball: FMJ; ? g; MV 860 m/s Tracer: no details AP: no details AP-I: no details AP-I-T: no details Manufacturer Anthena Type: PPI/AP: Hardened steel penetrator, brass sabot; 48.5 g; MV 850 m/s, penetration: 13 mm RHA at 1,000 m GERMANY Manufacturer Dynamit Nobel Type: Plastic practice ball M858: This is a one-piece plastic moulded case and bullet attached to a metal extracting rim. The bullet section is solid, but the junction of the bullet section and case mouth section is weak and will shear under the pressure of the propellant gas. This is so the bullet breaks free and is fired from the weapon. The round is intended for use on scaled practice ranges and is produced to meet US military specifications. Bullet weight 3.2 g; MV 1,075 m/s. The bullet has a velocity of 850 m/s at 23.7 m from the gun muzzle and a maximum range of 700 m. The maximum effective training range is 150 m Practice plastic tracer M860: This is similar to the practice ball round described previously but the bullet is counterbored at the base to receive a tracer filling giving a red trace from 20 to 150 m range. 3.2 g; MV 1,045 m/s Ball, Short range: 38 g; V 10 905 m/s Ball, short range tracer: 40 g; V 10 890 m/s GREECE Manufacturer PYRKAL: Greek Powder & Cartridge Company Type: Ball M33: FMJ, SL; soft steel core; sodium monohydrate point filler; 42.5 g; MV 880 m/s AP-I M8 : FMJ; manganese molybdenum steel core; point filler of incendiary composition and lead-antimony base seal; 43 g; MV 880 m/s AP-I-T M20 : As for M8 but tracer in place of base seal; 40.1 g; MV 880 m/s Tracer M17 : FMJ; lead-antimony core, base tracer; 41.55 g; MV 880 m/s Tracer (Pyrkal): Details not known; accuracy better than M17 ; MV 880 m/s Multipurpose: Details not known, but presumably licensed version of Raufoss design INDONESIA Manufacturer Pindad Type: Armour Piercing MU-3P: FMJ; 45.2 g; V 25 900 m/s Armour Piercing Tracer MU-3PN: FMJ; 43.9 g; V 25 900 m/s Armour Piercing Incendiary MU-3PB: FMJ; 41.75 g; V 25 900 m/s Armour Piercing Incendiary Tracer MU-3PBN: FMJ; 40 g: V 25 900 m/s Ball MU-3TJ: Soft steel core; FMJ; 45.0 g V 25 900 m/s ISRAEL Manufacturer Israel Military Industries ( IMI ) Type: Ball M2: FMJ; 45.88 g; MV 915 m/s Ball M33: FMJ; steel core; 42.9 g; MV 915 m/s Ball M33 Mod: FMJ; hard core; 42.5 g; MV 915 m/s Tracer M17 : FMJ; 41.66 g; MV 915 m/s AP-I-T M20 : FMJ; hard core; 40.11 g; MV 915 m/s AP-I M8 : FMJ; hard core; 42.5 g; MV 915 m/s AP M2: FMJ; hard core; 45.88 g; MV 915 m/s HP Test: FMJ; steel core; 42.5 g; pressure 4,700 kg/cm ITALY Manufacturer Europa Metalli Type: Ball M33: FMJ Match; steel core; 42 g; V 24 890 m/s Tracer M33T: FMJ; steel core; dark ignition trace visible to >1,500 m; 40 g; V 24 890 m/s AP-I M8 : FMJ; steel core; 43 g; V 24 890 m/s. Penetration: 22 mm MS plate at 100 m AP-I-T M20 : FMJ; steel core; red dark ignition trace 40 to >1,500 m; 40 g; V 24 890 m/s. Penetration: 22 mm MS plate at 100 m AP-I-HC (MD-SMI-3 type): FMJ; tungsten carbide core; 46 g; V 24 860 m/s. Penetration: 30 mm MS plate at 0º at 200 m Blank: Brass case; rose crimp KOREA, SOUTH Manufacturer Poongsan Metal Corporation Type: Ball M33: FMJ; 43 g; MV 890 m/s Tracer M17 : FMJ; dark ignition red trace to 1,600 m; 43 g; MV 870 m/s AP M2: FMJ; steel core; 46 g; MV 885 m/s AP-I M8 : FMJ; AP steel core; 43 g; MV 870 m/s AP-I-T M20 : FMJ; steel core; incendiary tip filler, red trace to 1,600 m; 45.5 g; MV 870 m/s NETHERLANDS Manufacturer Eurometaal NV Type: AP 2000: FMJ; ballistic conformity to Ball M2, M33, API M8 and so on, but with superior penetrative capability. Will effectively penetrate up to 40 mm RHA or 20 mm HHA plates at various angles and ranges. Post-armour effect is significant API 2000: Similar armour-defeating performance to the AP 2000 but with added incendiary effect NORWAY Manufacturer Nammo Raufoss A/S Type: Multipurpose NM140: The exterior of this round conforms to the standard US M2 Ball, but the bullet is a design patented by Nammo Raufoss which incorporates penetrative, incendiary and fragmentation effects. NM140 will defeat 16 mm of armour (Brinell 360) at 30º at 400 m; after penetration it will explode and produce about 20 effective fragments inside the target. There will also be a shower of incendiary particles which are still effective 15 m behind the target plate. No mechanical fuze is used because the need for detonators or sensitive high explosives has been eliminated. Muzzle velocity 900 m/s, bullet weight 43 g Multipurpose NM140A1: Similar to the NM140 but with some minor changes to meet a US Navy specification Multipurpose Tracer NM160: This is the NM140 but with the addition of a base tracer element. The inclusion of this reduces the effective fragmentation by about 30 per cent but does not affect the penetrative or incendiary performance. The tracer is a dark ignition type which is invisible to 50 m from the muzzle, fully visible from 200-1,500 m AP-S NM173: Ballistic conformity compares to US Ball M2 but is characterised by tremendous penetration effect. Penetration of 20 mm armour plate at 0º NATO at 1,000 m and 11 mm armour plate at 30º NATO at 1,500 m AP-S NM185: Similar to the NM173 with identical armour piercing capabilities but is inert PAKISTAN Manufacturer Pakistan Ordnance Factories Type: AP-I: FMJ; hard core; incendiary filling in nose; ? g; MV 833 m/s AP-I-T: FMJ; hard core; incendiary and tracer fillings; ? g; MV 818 m/s ROMANIA Manufacturer S.N. ROMARM S.A. Type : API ( M8 ): 116 g (M33): 116g; MV 925 m/s SINGAPORE Manufacturer Chartered Ammunition Industries Type: Ball M33: FMJ; 42.9 g; V 24 887 m/s. Conforms to MIL-C-10190 Tracer M17 : FMJ; red trace to not less than 1,463 m; 41.65 g; V 24 872 m/s. Conforms to MIL-C-1318 AP-I M8 : V 24 887 m/s. Conforms to MIL-C-3066 AP-I-T M20 : V 24 887 m/s. Conforms to MIL-C-3066 APHCI: AP hard core incendiary; V 24 870 m/s; penetration 15 mm RHA at 500 m SLAP: APDS subprojectile in plastic sabot; 27 g; V 24 1,190 m/s; penetration 25 mm RHA (321-375 BH) at 1,000 m. For use in CIS 50MG heavy machine gun only SLAP-T: APDS as for SLAP above but with tracer to 1,370 m from gun SRA: Short-Range Ammunition: A target practice round representing SLAP, for use in areas where the safety trace is inadequate for SLAP. Exterior ballistics match SLAP to 800 m range and fall off thereafter SRA-T: Short-Range Ammunition, Tracer: As for SRA but simulating SLAP-T and giving a ballistic match with SRA with the addition of a trace to the required range Blank: Brass case, rose crimp. Conforms to MIL-C-48623 SOUTH AFRICA Manufacturer PMP , a division of Denel (Pty) Ltd Type: Ball: M33 FMJ; 42.4 g; V 24 887 m/s. Conforms to MIL-C-10190 Tracer: M17 ; FMJ; 29.25 g; V 24 872 m/s. Trace not less than 1,460 m. Conforms to MIL-C-1318 API: M8 : FMJ; V 24 887 m/s. Conforms to MIL-C-3066. Penetrates 22 mm armour plate at 91 m API HC: FMJ; hard core; 44.75 g; MV 876 m/s; penetrates 15 mm RHA at 1,000 m with incendiary effect Incendiary-Tracer: Brass jacket, tracer and incendiary elements; 41.6 g; MV 876 m/s; red trace >1,700 m; penetration 10 mm RHA at 1,000 m SPAIN Manufacturer SANTA BARBARA SA Type: AP-I M8 : FMJ; 42.5 g; MV 895 m/s AP-I-T M20 : FMJ; hard core; 40.1 g; MV 895 m/s TURKEY Manufacturer Makina ve Kimya Endüstrisi Kumuru ( MKEK ) Type: Ball M33: FMJ; 43 g; MV 890 m/s Tracer M17 : FMJ; red trace to 1,500 m; 43 g; MV 870 m/s AP-I M8 : FMJ; AP steel core; 43 g; MV 870 m/s AP-I-T M20 : FMJ; steel core; incendiary tip filler, red trace; 45.3 g; MV 865 m/s UNITED STATES OF AMERICA Manufacturer Government contractors Type: Ball M2: FMJ, SL; steel core; 46.01 g; MV 858 m/s Ball M33: FMJ, SL; steel core; 42.90 g; MV 888 m/s AP M2: FMJ, SL; steel core; 45.88 g; MV 885 m/s Tracer M10 : FMJ; red trace 205-1,450 m; 41.67 g; MV 873 m/s Tracer M17 : FMJ; red trace 100-1,450 m; 41.67 g; MV 873 m/s Tracer, headlight, M21 : FMJ; red trace 200-500 m; 45.3 g; MV 867 m/s AP-I M8 : FMJ, SL; steel core; incendiary tip filler; 42.06 g; MV 888 m/s AP-I-T M20 : FMJ, SL; steel core; incendiary tip filler, red trace 100-1,450 m; 39.66 g; MV 888 m/s Incendiary M1: FMJ, SL; steel sleeve; 41.02 g; MV 901 m/s Incendiary M23 : DMJ; steel incendiary container; 33.18 g; MV 1,036 m/s Limited Range Training Ammunition (LRTA) Ball and Tracer: 45.6 g; MV 900±15 m/s Manufacturer Winchester-Olin Type: SLAP M903: APDS, AP subprojectile in amber coloured plastic sabot; 26.89 g; V 25 1,220 m/s SLAP/T M962: APDS-T, the AP subprojectile carrying a red tracer being fitted into a red coloured sabot. 26.89 g; V 25 1,173 m/s AP-I M8 : FMJ; steel core with incendiary material in nose; 40.34 g; V 25 887 m/s AP-I Mk211 Mod 0 (multipurpose): Based upon the Norwegian Raufoss NM140, made under licence. Similar performance. 43.48 g; V 25 899 m/s AP-I-T M20 : FMJ; steel core with incendiary material in nose, red trace; 40.11 g; V 25 887 m/s Ball M33: FMJ; 42.77 g; V 25 887 m/s Tracer M17 : FMJ; red trace 100-1,450 m; 40.82 g; V 25 872 m/s Blank M1A1 : Brass case, rose crimp Match: HPBT; 48.5 g; V50 902 m/s Manufacturer Talon Manufacturing Company Type: AP-I M8 : FMJ; 42.8 g; MV 886 m/s API-T M20 : FMJ; 40.1 g; MV 886 m/s Ball: FMJ match; 48.6 g; MV 792 m/s YUGOSLAVIA , FEDERAL REPUBLIC Manufacturer Yugoimport SDPR Type: Ball M33: FMJ; steel core, lead inner tip; 45 g; MV 887 m/s Tracer M17 : FMJ; red trace, visible to >1,463 m; 40 g; MV 887 m/s AP-I M8 : FMJ, AP; steel core; thermite incendiary composition in tip; 42.8 g; MV 887 m/s AP-I-T M20 : FMJ, AP; steel core; base tracer, thermite composition in tip; red trace, visible from 91 to >1,463 m; 40.2 g; MV 887 m/sRead More

Nammo

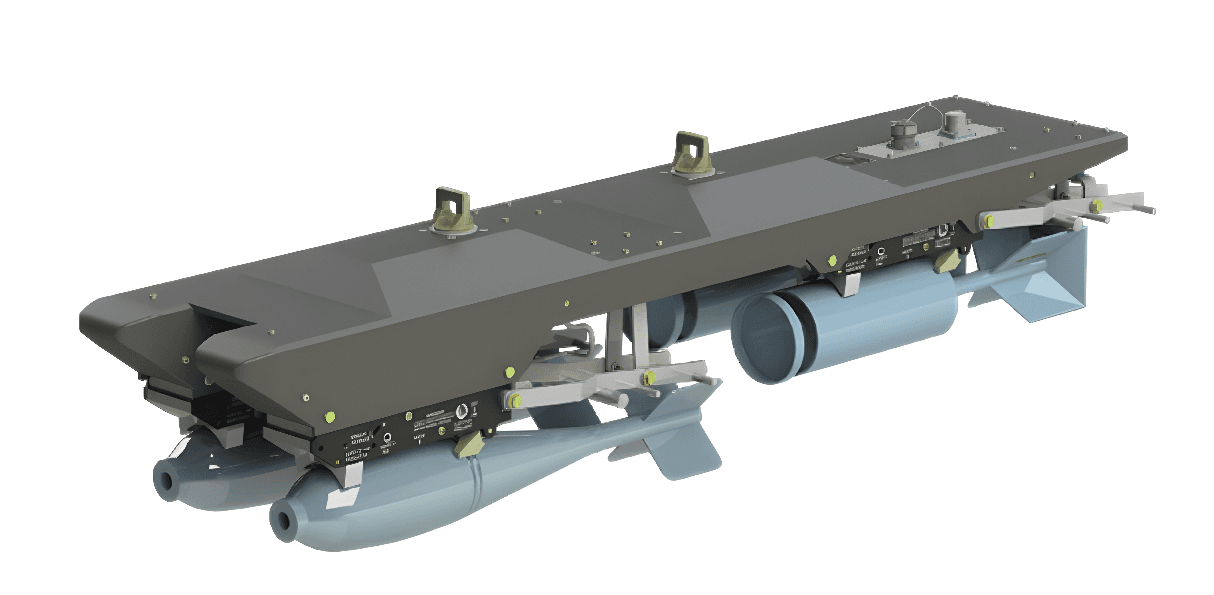

MALTS-2 MALTS-4

Aviation

MALTS-2 MALTS-4

The MALTS practice bomb carrier is a lightweight carriage solution designed to maximize training efficiency for pilots and joint terminal attack controllers (JTACs). By combining air combat maneuvers (ACM) and CAS in a single mission, MALTS helps users gain proficiency in less time – reducing training hours. MALTS two-station (2STN) and fourstation (4STN) carriers allow for a wide range of mission loads and scenarios. The system uses training ammunition, permitting more rehearsals in multiple combat modes for each sortie.Read More

L3Harris

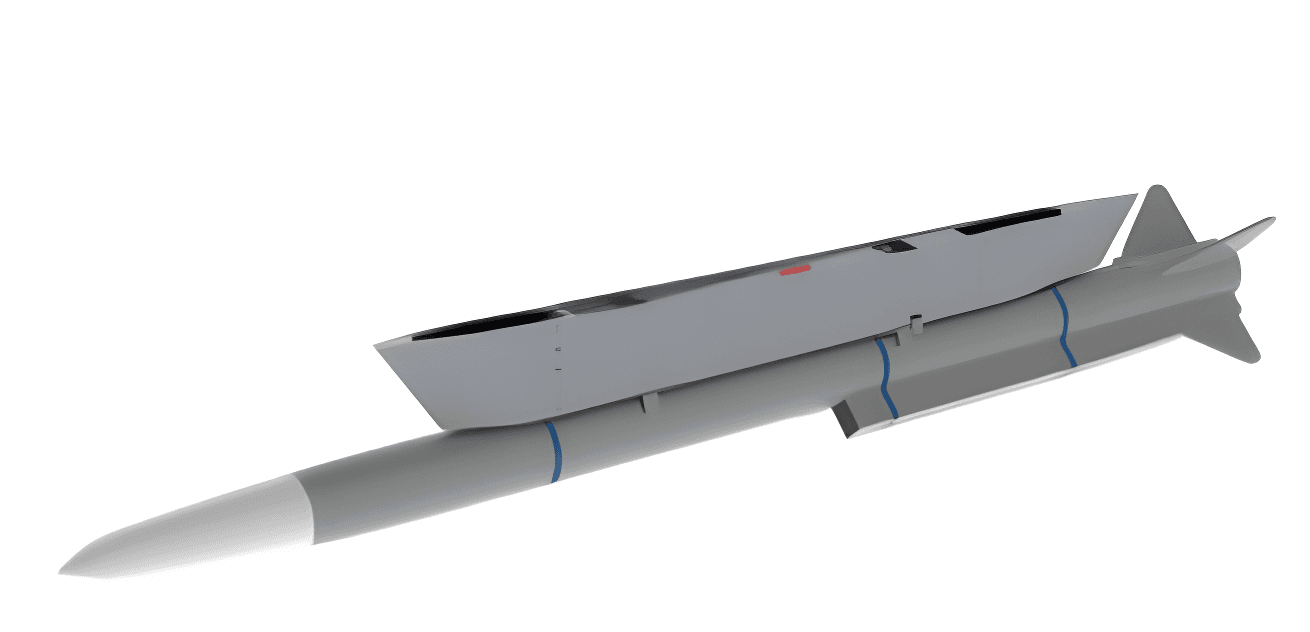

Pneumatic Missile Eject Launcher (PMEL)

Aviation

Pneumatic Missile Eject Launcher (PMEL)

PMEL is a pneumatic launcher designed to eject modern medium- and long-range air-to-air missiles from high-performance manned and unmanned platforms, including the Saab Gripen. As a combined pylon and launcher unit, the PMEL is currently designed for use under the fuselage on modern high-performance fighter jets to reduce weight and frontal cross section. PMEL is not subject to International Traffic in Arms Regulation (ITAR) export rules, making it an ITAR-free solution for high-performance ejection of air-to-air missiles.Read More

L3Harris
