Cable Waveform Analyzer
Electronic intelligence and electronic warfareElectronic intelligence and electronic warfare
South Korea

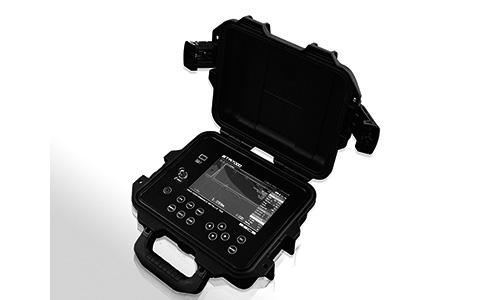

Cable Waveform Analyzer
Application - Cable Preventive Maintenance - Cable Fault Point Detection - MRO(Maintenance, Repair & Overhaul) of Fixed Wing & Rotorcraft Cable - Diagnosis of Ship Internal Cable Condition and Detection of Fault Locations - Applicable to all Types of Metal Cables with more than One Pair of Cores Characteristics - This instrument is designed to detect even the smallest changes in the cable. - For these measurements, this instrument offers very high resolution and highest accuracy. - It can detect subtle changes in cables and predict changes in cable condition with performance that conventional equipment cannot achieve. Specifications Performance Range 10cm ~ 300m for coaxial cable Max. display resolution 0.5mm Max. vertical resolution 122uV Accuracy ±1cm for coaxial cable V.O.P setting 10.00~99.99% (in 0.01% step) Pulse width 250, 500ps, 1, 2, 3, 4, 5, 10ns Interface Display 7inch 800*480pixel color LCD(with backlight) Output impedance 50 Ω Dynamic range 84dB Input bandwidth 4.8GHz at 2Vpp Input protection 500Volts (AC+DC) Internal memory 8G Byte Effective sampling rate 50GS/s Power Internal battery 3.6V Li-ion battery pack, 26,000mAh Power consumption 6W at 50% LCD brightness Adaptor USB A Operating time 10hours Recharging time Approx.8hours Environment Operation temp -15 ℃ (+5 ℉ ) ~ +60 ℃ (+140 ℉ ) Storage temp -20 ℃ (-4 ℉ ) ~ +70 ℃ (+158 ℉ ) Humidity Less 95% Size 300*249*119mm Weight 3.2kg Certification CE, RoHSRead More
BECS
BECS
