Condor GR4-A4500

3U VPX Video Capture & GPGPU Card with NVIDIA Ampere A4500 GPU. The Condor GR4-A4500 is a ruggedized OpenVPX 3U form factor embedded video capture and GPGPU card leveraging the cutting-edge NVIDIA Ampere architecture and the NVIDIA RTX™ platform. This 3U VPX card is designed with the NVIDIA Ampere A4500 GPU featuring 16 GB of GDDR6 graphics memory equipped with Error Correction Code (ECC), 46 RT Cores, 184 Tensor Cores, and 5,888 CUDA® cores. Distinguished by its single-slot design, the Condor GR4-A4500 is a high performance GPGPU solution tailored for AI-accelerated tasks including raw video and sensor processing, encoding, decoding, and display.The Condor GR4-A4500 offers high-performance embedded computing (HPEC) capabilities to C5ISR mission processing applications such as low-latency GPGPU processing, real-time ray tracing, deep learning (DL), and AI inferencing. This versatile solution features support for PCI Express Gen 4 for increased data transfer speeds, incorporates dedicated H.265/H.264 encode and decode engines, and supports NVIDIA GPUDirect Remote Direct Memory Access (RDMA) for streamlined data transfer operations. The Condor GR4-A4500 supports four 3G-SDI/HD-SDI inputs, four 3G-SDI/HD-SDI outputs, and one DisplayPort™ output.Read More

EIZO Rugged Solutions

Communication and Control

Talon RGD2443W

24-inch rugged 4K UHD LCD monitor with SWaP-C optimized design. The Talon RGD2443W is a 24-inch rugged LCD monitor for ISR, naval, and military applications requiring SWaP-C optimization. It features a native 4K UHD (3840 x 2160) resolution in a compact housing and offers optional E-LFC (EIZO LCD Flicker Compensation) to reduce flicker in sonar imagery.It meets MIL-STD-810 and MIL-STD-461 standards, with optional IP65 front protection, sunlight readability, conformal coating, and an internal heater. Customization options include touchscreen capability, Picture-in-Picture, optical bonding, EMI mesh filtering, and housing modifications.Manufacturing and testing are carried out in-house, including vibration, shock, humidity, decompression, and temperature validation. Optional TEMPEST (NATO SDIP-27/2 Level B) certification is available. The monitor is also suited to air traffic control and mission and ground control operations.Read More

Rugged Displays

Unmanned platforms

Condor GR5SL-B4000

Rugged 3U VPX graphics & GPGPU card for military & ISR systems. The Condor GR5SL-B4000 is a SOSA-aligned 3U OpenVPX graphics and GPGPU card designed for military, avionics, and ISR platforms. It is built with the NVIDIA RTX PRO 4000 Blackwell GPU and includes 16 GB of GDDR7 ECC graphics memory on a 256-bit interface. Blackwell architecture supports GDDR7 and PCIe Gen 5 for increased performance and efficiency.The GPU has 7,680 CUDA cores, 240 fifth-generation Tensor Cores, and 60 fourth-generation RT Cores. It supports 9th generation NVENC encoders with 4:2:2 output and 6th generation NVDEC decoders for H.265/HEVC, H.264/AVC, and AV1. NVIDIA GPUDirect RDMA is supported.It supports slot profiles 14.6.11-0 and 14.6.13-0, with conduction-cooled [VITA 48.2] and Air Flow Through [VITA 48.8] configurations available. The card meets VITA 47.1 environmental requirements for temperature, vibration, shock, and humidity, and is also suited to surveillance, UAV, naval, and embedded systems.Read More

EIZO Rugged Solutions

Unmanned platforms

Condor GR5SL-B5000

SOSA-aligned 3U VPX graphics & GPGPU card based on NVIDIA RTX PRO 5000 Blackwell GPU. The Condor GR5SL-B5000 is a SOSA-aligned 3U OpenVPX graphics and GPGPU card for military, surveillance, UAV, naval, and ISR systems. Powered by the NVIDIA RTX PRO 5000 Blackwell GPU, it features 24 GB of GDDR7 ECC memory with a 256-bit interface. Blackwell architecture adds GDDR7 support and PCIe Gen 5 for high data throughput and efficiency.The GPU provides 10,496 CUDA cores, 320 fifth-generation Tensor Cores, and 80 fourth-generation RT Cores. It includes 9th generation NVENC encoders with 4:2:2 output and 6th generation NVDEC decoders for H.265/HEVC, H.264/AVC, and AV1. NVIDIA GPUDirect RDMA is supported.The card supports slot profiles 14.6.11-0 and 14.6.13-0, and is available in conduction-cooled [VITA 48.2] or Air Flow Through [VITA 48.8] configurations. It meets VITA 47.1 environmental specifications for temperature, vibration, shock, and humidity.Read More

EIZO Rugged Solutions

Unmanned platforms

Condor NVB500xX

Rugged XMC graphics & GPGPU card for high-performance military systems. The Condor NVB500xX is a rugged XMC video graphics and GPGPU card designed for military, avionics, and ISR applications. It uses the NVIDIA RTX PRO 500 Blackwell GPU with 6 GB of GDDR7 ECC memory and a 128-bit memory interface. GDDR7 technology enhances bandwidth and efficiency for demanding embedded environments.The GPU includes 1,792 CUDA cores, 56 fifth-generation Tensor Cores, and 14 fourth-generation RT Cores. It supports PCIe Gen 5, 9th generation NVENC encoders with 4:2:2 output, and 6th generation NVDEC decoders for H.265/HEVC, H.264/AVC, and AV1. NVIDIA GPUDirect RDMA is supported.The NVB500xX provides three DisplayPort++ or DVI outputs and rear Pn6 XMC I/O in the VITA 46.9 x12d+x8d+24s format. Available in XMC 1.0, XMC 2.0, or XMC+, it can be integrated into 3U and 6U VPX systems for use in surveillance, UAV, naval, and embedded platforms. It operates from -40°C to +70°C (air-cooled) or -40°C to +85°C (conduction-cooled) with MIL-STD-810 compliance.Read More

EIZO Rugged Solutions

Unmanned platforms

Condor NVB2000xX

Rugged XMC graphics & GPGPU card based on NVIDIA RTX PRO 2000 Blackwell GPU. The Condor NVB2000xX is a rugged XMC video graphics and GPGPU card for military, avionics, and ISR systems. Built with the NVIDIA RTX PRO 2000 Blackwell GPU, it includes 8 GB of GDDR7 ECC graphics memory with a 128-bit memory interface. Blackwell architecture introduces GDDR7 support, delivering increased bandwidth, improved signal integrity, and reduced energy usage.The GPU features 3,328 CUDA cores, 104 fifth-generation Tensor Cores, and 26 fourth-generation RT Cores. It supports PCIe Gen 5, 9th generation NVENC encoders with 4:2:2 output, and 6th generation NVDEC decoders for H.265/HEVC, H.264/AVC, and AV1. NVIDIA GPUDirect RDMA is supported.The card provides three DisplayPort++ or DVI outputs and rear Pn6 XMC I/O in the VITA 46.9 x12d+x8d+24s format. It is available in XMC 1.0, XMC 2.0, or XMC+ formats, compatible with 3U and 6U VPX systems for deployment in surveillance, UAV, naval, and embedded platforms. Operating temperature ranges from -40°C to +70°C (air-cooled) and -40°C to +85°C (conduction-cooled) with MIL-STD-810 compliance for vibration, shock, and humidity.Read More

EIZO Rugged Solutions

Condor GR6S-AD2000 3U VPX

SOSA®-aligned 3U VPX video capture & GPGPU card based on the NVIDIA RTX ™ 2000 Ada Generation. The Condor™ GR6S-AD2000 is a rugged 3U OpenVPX video capture and GPGPU processing card built for mission-critical C5ISR and high-performance embedded computing (HPEC) applications. Designed with the NVIDIA RTX™ 2000 Ada GPU, the Condor GR6S-AD2000 is an ideal solution for ultra-low-latency video capture and distribution in sensor fusion, object detection, and automated target recognition (ATR) applications. The Condor GR6S-AD2000 3U VPX video capture solution supports up to six 12G-SDI video streams, including four dedicated inputs and two dedicated outputs. This solution has an integrated PCI Express gen 4 switch, enabling high-speed data transfer and flexible configuration of PCIe lanes. This flexibility allows the card to adapt to different backplanes, whether point-to-point or switched, ensuring compatibility and optimal performance.Read More

EIZO Rugged Solutions

Condor NVA500xX

High-performance XMC video graphics and GPGPU processing card based on the NVIDIA® Ampere™ architect. The Condor NVA500xX is a high-performance XMC video graphics and GPGPU processing card based on the NVIDIA® Ampere™ architecture using the RTX A500 GPU. The Condor NVA500xX XMC card supports 4 GB GDDR6 graphics memory along with 2,048 NVIDIA CUDA Cores, 64 Tensor Cores, and 16 RT Cores for uncompromised computing accuracy and reliability.The NVIDIA RTX A500 GPU is a headless GPU that operates without a display output. Headless GPUs can be leveraged to perform parallel processing on large datasets, making them suitable for tasks like object detection, image recognition, and other computationally intensive operations. Headless GPUs can contribute to reducing latency by offloading specific computational tasks from the CPU to the GPU, enabling faster processing of data.The Condor NVA500xX offers high-performance embedded computing (HPEC) capabilities such as low-latency GPGPU processing, real-time ray tracing, deep learning (DL), and AI inferencing. This versatile solution features support for PCI Express Gen 4 for increased data transfer speeds, incorporates dedicated H.265/H.264 encode and decode engines, and supports NVIDIA GPUDirect Remote Direct Memory Access (RDMA) for streamlined data transfer operations.Read More

EIZO Rugged Solutions

Unmanned platforms

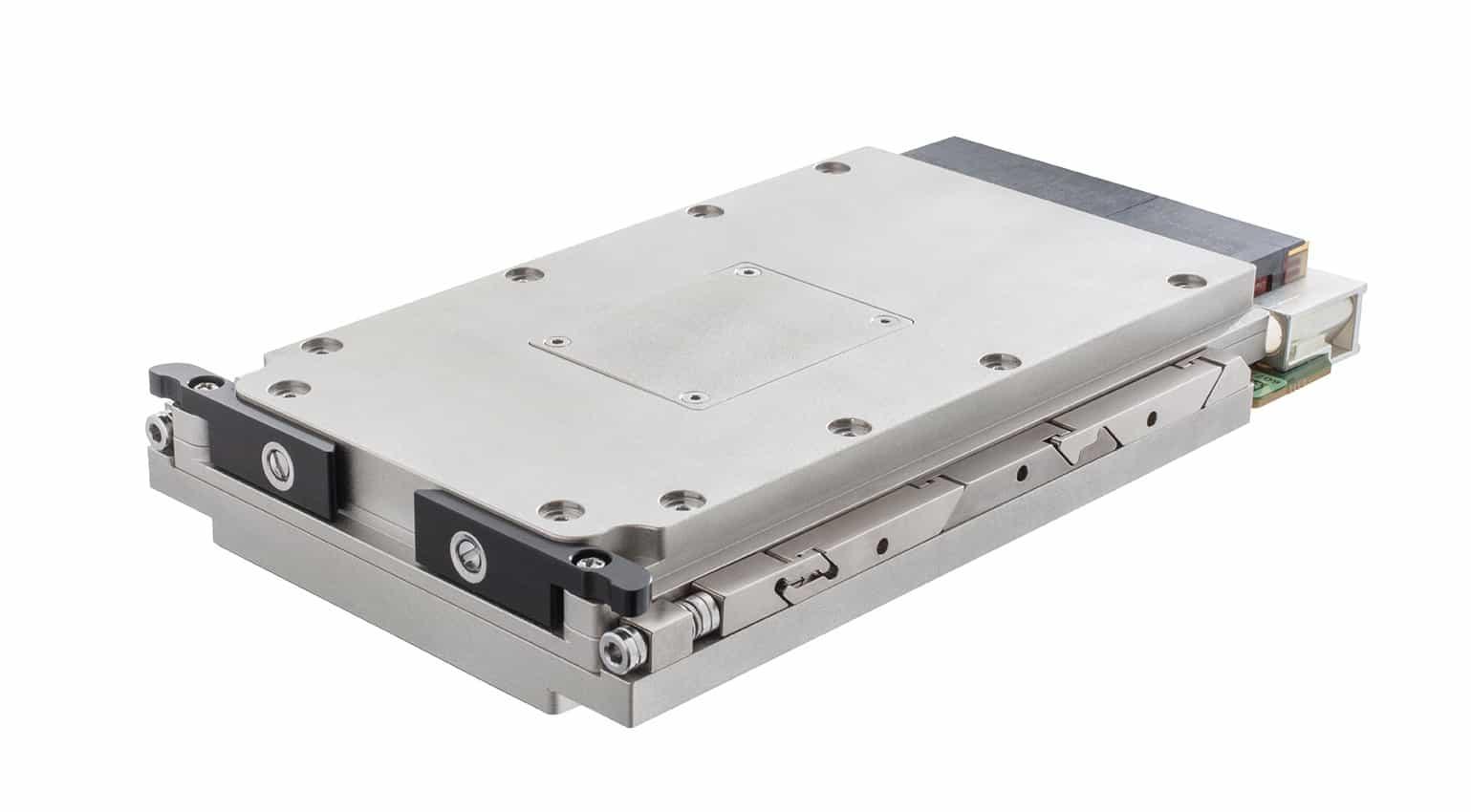

Condor AGX-IOX

Rugged SOSA-aligned SBC based on NVIDIA Jetson AGX Orin. The Condor AGX-IOX is a 3U VPX high-performance SBC based around the NVIDIA Jetson AGX Orin system-on-module and incorporating an NVIDIA Ampere GPU and an Arm Cortex-A78AE CPU. With 2048 NVIDIA CUDA cores, 64 Tensor Cores and up to 64GB LPDDR5 system memory, it enables demanding I/O-intensive military C5ISR applications such as multi-sensor processing and real-time analysis, and can be integrated into a wide range of platforms including manned aircraft, UAVs and naval vessels.The rugged low-SWaP SBC is designed to support both VITA 46/65 and SOSA (Sensor Open System Architecture) slot profile 14.2.16. It provides a variety of advanced storage and networking capabilities, including 64GB eMMC internal storage, 10GbE (Gigabit Ethernet), and high-speed I/O, and also includes dedicated HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines with support for up to 4K-UHD encoding resolution. The Condor AGX-IOX meets MIL-STD-810 standards for shock, vibration, humidity and operating temperatures.Specifications:Read More

EIZO Rugged Solutions

Communication and Control

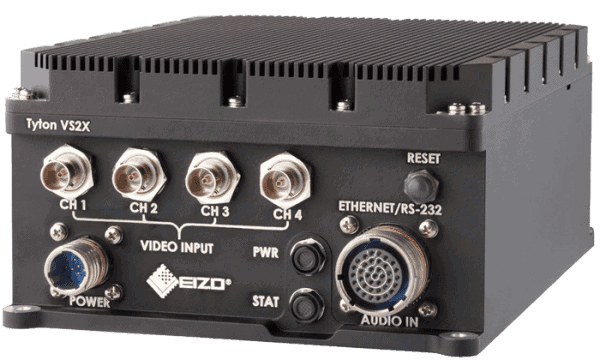

Tyton VS2X Rugged Video Encoder

H.265 / H.264 video encoding & streaming for military & aerospace applications. The Tyton VS2X is a compact stand-alone 3U VPX H.265 (HEVC) / H.264 video and audio encoding and streaming solution designed to meet the needs of mission-critical military and aerospace video transmission in challenging field environments. It can encode and stream four 3G/HD/SD-SDI or CVBS (NTSC/PAL) video inputs simultaneously, and can also merge CoT/KLV or SDI VANC KLV metadata as well as up to two stereo in-line audio inputs. Encoded video streams can be output simultaneously over 1 Gbps Ethernet and an optional USB 3.0 interface.The rugged unit is housed in an IP67 and MIL-STD-810-rated enclosure, and features MIL-spec connectors and power interfaces. It can be controlled and monitored remotely over Ethernet as well as via a well-defined API or web-based configuration GUI.Read More

EIZO Rugged Solutions

Communication and Control

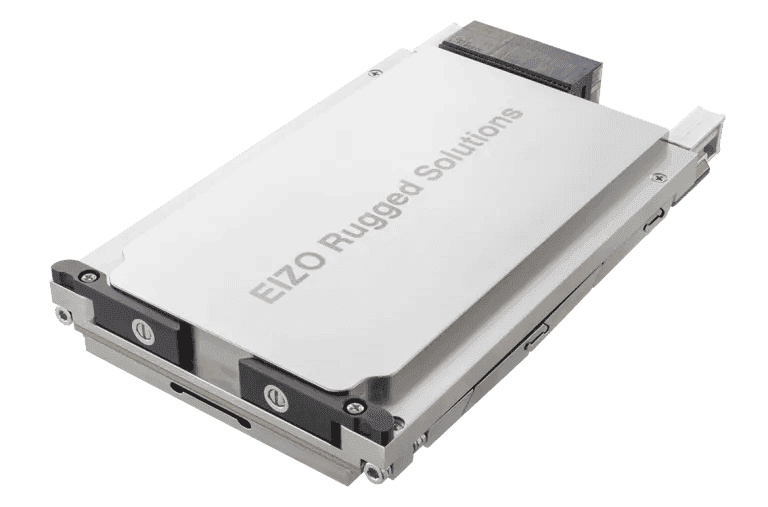

Condor GR5S-AD5000 Video & GPGPU Card

NVIDIA Ada Lovelace-based 3U VPX card for data-intensive applications. The Condor GR5S-AD5000 is a rugged video graphics and GPGPU card built on the NVIDIA RTX 5000 GPU and Ada Lovelace architecture. The SOSA-aligned 3U OpenVPX solution features support for 16 GB of GDDR6 ECC (error correction code) graphics memory, and provides 9,728 CUDA cores, 76 RT Cores, and 304 Tensor Cores for data-intensive applications such as aerial, ground and naval ISR.The card offers ultra-high-speed data transfer capabilities thanks to PCI Express Gen 4 (x4, x8, or x16 lane) connectivity, and is available in conduction-cooled and Air Flow Through (AFT) variants. An optional front DisplayPort output can be provided for lab and development use.Read More

EIZO Rugged Solutions

Unmanned platforms

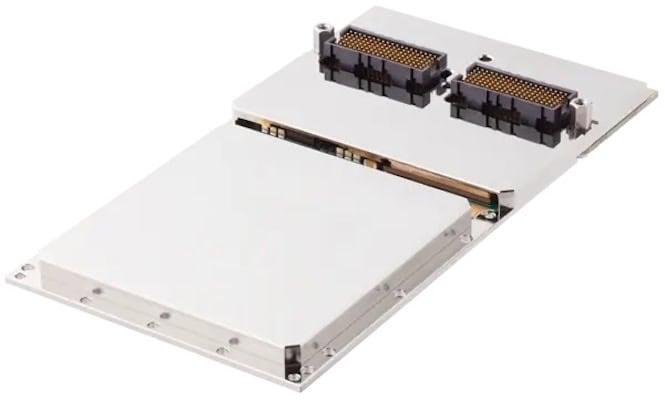

Condor VC300xX

Rugged XMC video capture solution supporting 12G-SDI, 3G-SDI, and HD-SDI. The Condor VC300xX is a high-performance XMC video capture card designed to meet the demanding requirements of military, defense, and ruggedized environments. Engineered for superior video capture capabilities, the VC300xX offers seamless support for 12G-SDI, 3G-SDI, and HD-SDI video formats, ensuring exceptional versatility across a wide range of mission-critical applications.Tailored for Military and Defense ApplicationsThe Condor VC300xX is optimized for integration into ISR (Intelligence, Surveillance, Reconnaissance) systems, military ground vehicles, unmanned platforms, and aerospace operations. It ensures precise data capture and rapid processing for applications including live video streaming, sensor fusion, and mission-critical video analysis.Seamless System IntegrationThe VC300xX’s compact XMC form factor and compatibility with PCIe Gen 3 architectures make it an easy fit for embedded systems. Whether used in UAV payloads, situational awareness platforms, or advanced mission computers, this solution enhances system capabilities without compromising on size or weight constraints.Read More

EIZO Rugged Solutions

Communication and Control

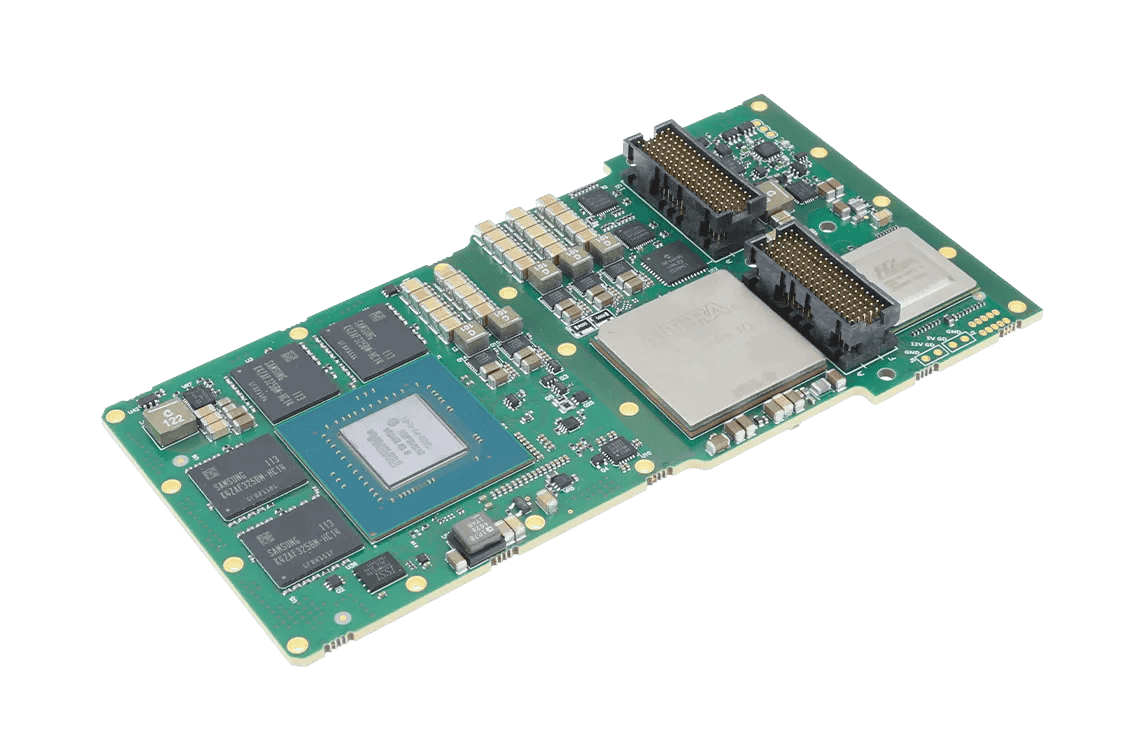

Condor NVA2102xX Video Card

Rugged NVIDIA RTX A2000 GPU-based video capture, processing & GPGPU card. The Condor NVA2102xX is a rugged high-performance graphics and GPGPU card that requires a single XMC slot and provides an all-in-one solution for simultaneously capturing, processing, displaying, encoding, decoding, and streaming of mission-critical video data with metadata. Based around the NVIDIA RTX A2000 GPU with 8 GB of GDDR6 graphics memory, it is ideal for real-time aerial, ground-based and naval ISR applications. The NVIDIA Ampere architecture supports CUDA and OpenCL-based GPGPU computing, AI processing and deep learning, providing up to 9.3 TFLOPS of FP32 performance.I/O capabilities include four 3G-SDI video inputs and four DisplayPort++, VGA, and 3G-SDI outputs. The video capture system auto-detects the input resolution and transfers raw video frames directly to GPU memory or host memory. In GPU memory, the card can undertake a wide variety of processing functions such as image analysis, image enhancement, 360 degree video stitching, sensor fusion and target detection.The rugged card is tested to MIL-STD-810G standards for high temperatures, shock, and vibration, and is available in conduction-cooled or air-cooled variants.Read More

EIZO Rugged Solutions

Unmanned platforms

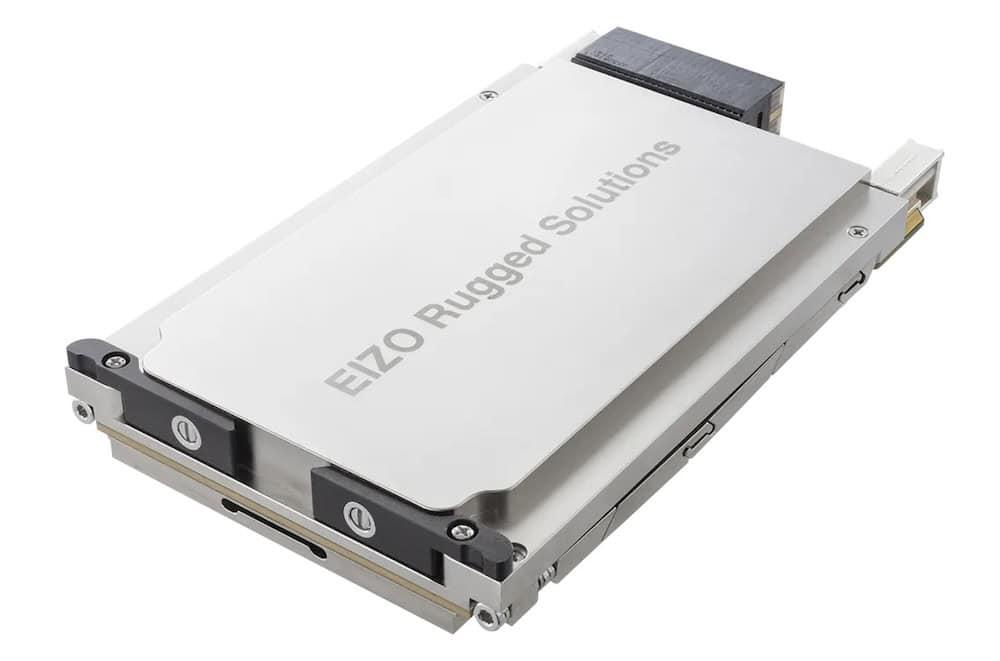

Condor GR5S-AD2000

High-Performance Embedded GPGPU Solution for Mission-Critical Applications. The Condor GR5S-AD2000 is a state-of-the-art SOSA™-aligned 3U VPX graphics and GPGPU card designed to deliver unparalleled computational power for military and defense operations. Leveraging NVIDIA’s RTX 2000 Ada Generation GPU, this robust solution offers groundbreaking performance for edge computing, AI/ML processing, and real-time data visualization in harsh operational environments.Powerful Embedded GPGPU Architecture At its core, the Condor GR5S-AD2000 features NVIDIA’s Ada Lovelace architecture, which combines advanced ray tracing capabilities, Tensor Cores, and CUDA for high-speed, high-precision processing. This makes it ideal for applications such as ISR (Intelligence, Surveillance, and Reconnaissance), electronic warfare, and autonomous systems. The GPU also incorporates built-in codec engines for efficient handling of high-resolution video streams, supporting mission-critical situational awareness in real-time.SOSA-Aligned Design for Modular Interoperability The card adheres to SOSA™ Technical Standard, ensuring seamless integration into modern open-system architectures. With VITA compliance and configurable SOSA-aligned slot profiles, the Condor GR5S-AD2000 supports standardization, scalability, and interoperability across diverse platforms, from UAVs to ground vehicles and maritime systems.High-Speed Data Processing & Connectivity Equipped with a PCIe Gen 4 Switch and Remote Direct Memory Access (RDMA), the Condor GR5S-AD2000 facilitates lightning-fast data transfer between system components, ensuring smooth operation even in bandwidth-intensive applications. These capabilities are critical for environments demanding high throughput and low latency, such as radar signal processing and multi-sensor fusion.Ruggedized for Extreme Conditions Built for demanding military environments, the card is designed to withstand extreme temperatures, shock, and vibration. Its ruggedized build ensures consistent performance in airborne, naval, and ground operations, meeting stringent MIL-STD requirements for reliability and durability.Key Features: Embedded GPGPU Power: NVIDIA RTX 2000 Ada GPU with Ada Lovelace architecture. SOSA-Aligned Solution: SOSA™ slot profiles and VITA-standard compliance. High-Speed Data Transfer: PCIe Gen 4, RDMA, and integrated codec engines. Mission-Ready Durability: Ruggedized for military environments and extreme conditions. Flexible Deployment: Seamless integration across air, land, and sea platforms.Read More

EIZO Rugged Solutions

Communication and Control

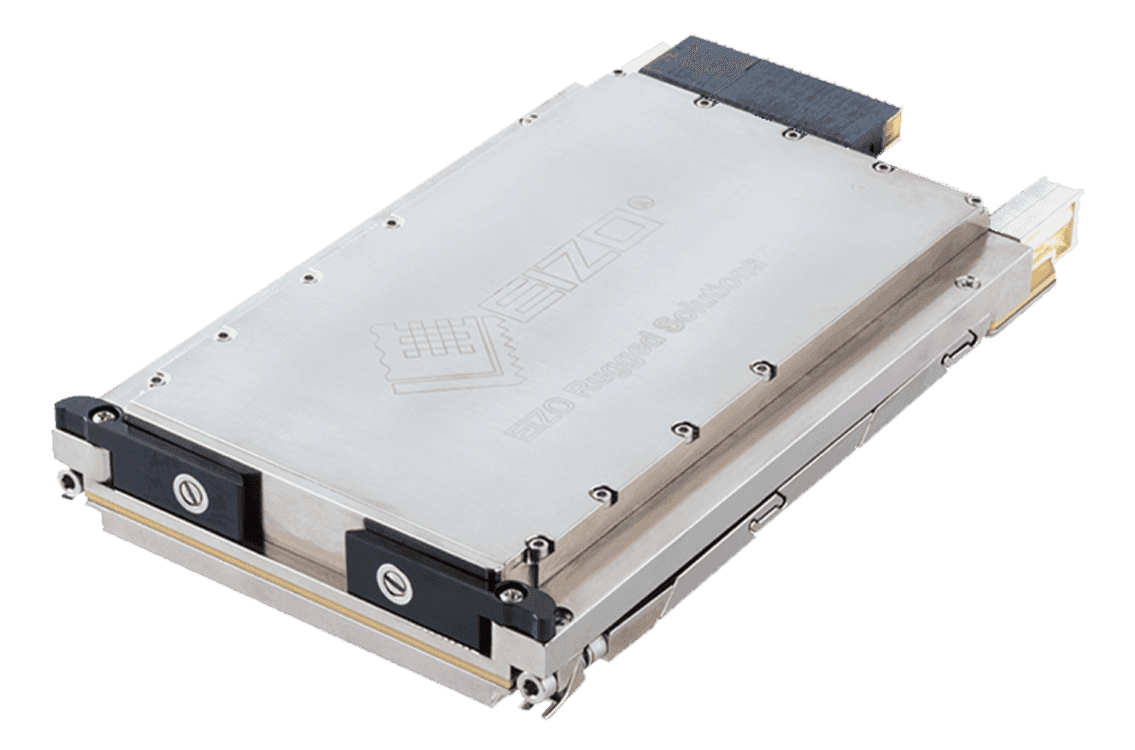

Condor GR2S-A4500-ETH

SOSA-Aligned 3U VPX Graphics & GPGPU Card with PCIe Switch & SmartNIC. The Condor GR2S-A4500-ETH is an OpenVPX 3U graphics and GPGPU card based around the NVIDIA Ampere architecture and providing 46 RT Cores, 184 Tensor Cores, and 5,888 CUDA cores. The versatile card also features an NVIDIA ConnectX-7 SmartNIC and embedded PCIe switch, delivering high-speed data transfer and enhanced storage in a lower SWaP (size, weight and power) footprint.The high-performance embedded computing solution is ideal for military C5ISR data processing applications that require low-latency GPGPU processing, real-time ray tracing, deep learning or AI inferencing. It is compatible with OpenVPX VITA connectors, and is designed to SOSA Technical Standard slot profiles 14.6.11 and 14.6.13. Specifications:Read More

EIZO Rugged Solutions

Communication and Control

Condor AGX-ORIN64-HPC

Embedded 3U VPX Single Board Computer with NVIDIA Jetson AGX Orin 64GB. The Condor AGX-ORIN64-HPC uses the NVIDIA Jetson AGX Orin 64GB (Industrial) SoM that hosts an NVIDIA Ampere architecture GPU and a 12-core Arm® Cortex®-A78AE CPU. The module’s 64GB of LPDDR5 system memory allows up to 205 GB/s memory bandwidth shared between the internal CPU, GPU, and accelerator engines.The Condor AGX-ORIN64-HPC incorporates the NVIDIA ConnectX®-7 NIC, enabling high-speed data transfer of up to 100Gb/s and 25Gb/s using Gigabit Ethernet. This, along with NVIDIA GPUDirect® RDMA over converged Ethernet (RoCE), enables high-speed communication between distributed sensors, RF transceivers, and platforms. In addition, the card supports 64 GB eMMC internal storage, an M.2 2230 site for expandable storage, and features high-speed I/O such as USB 3.2, DisplayPort™, and RS-232 Serial. The NVIDIA® Jetson AGX Orin™ SoM features HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines with support for up to 4K-UHD encode resolution. The Condor AGX-ORIN64-HPC is designed to support both VITA 46/65 and the Sensor Open System Architecture (SOSA™) technical standards slot profile 14.6.11.Read More

EIZO Rugged Solutions

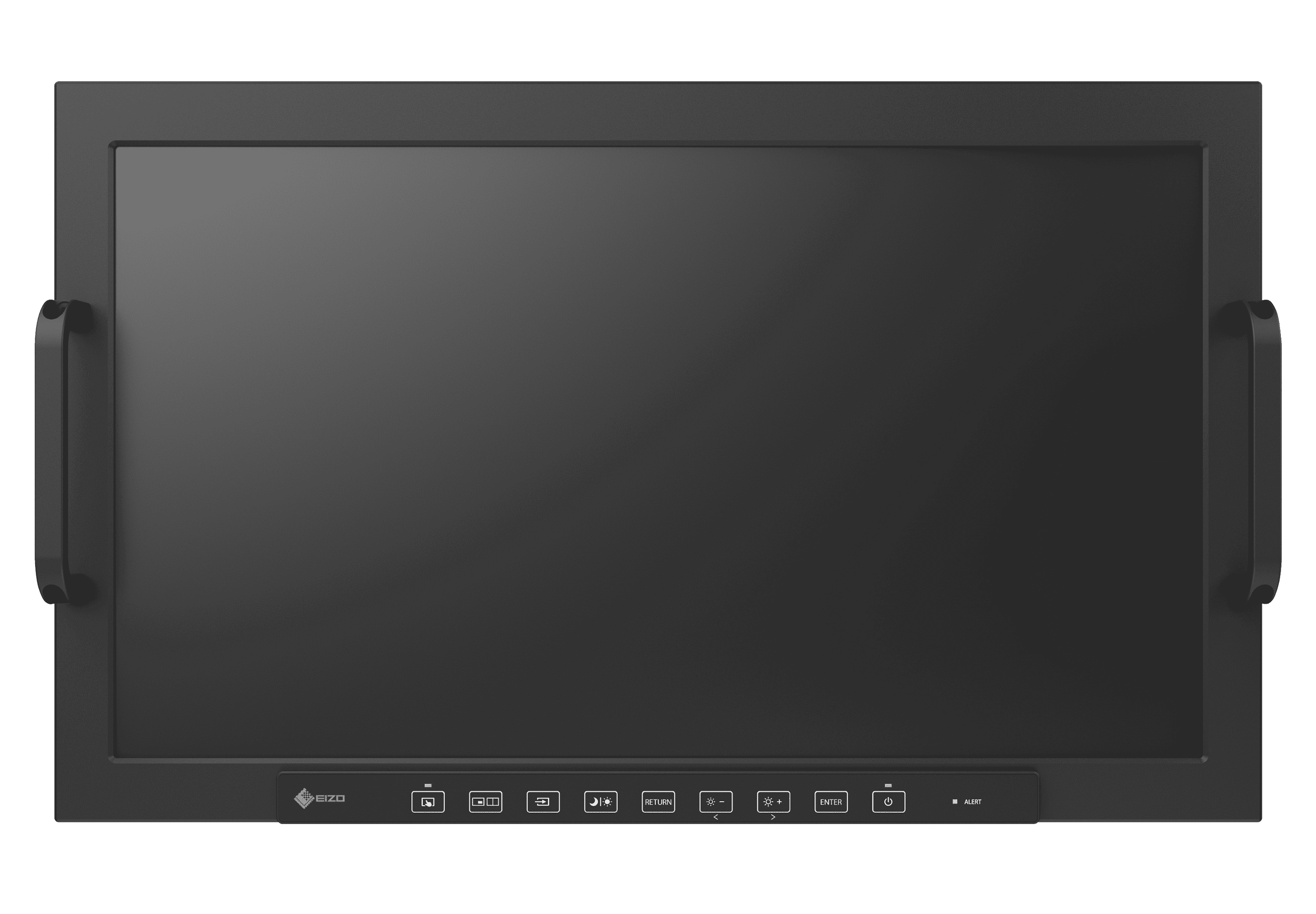

Talon RGD2101W

21.5" Rugged LCD Monitor. nan

EIZO Rugged Solutions

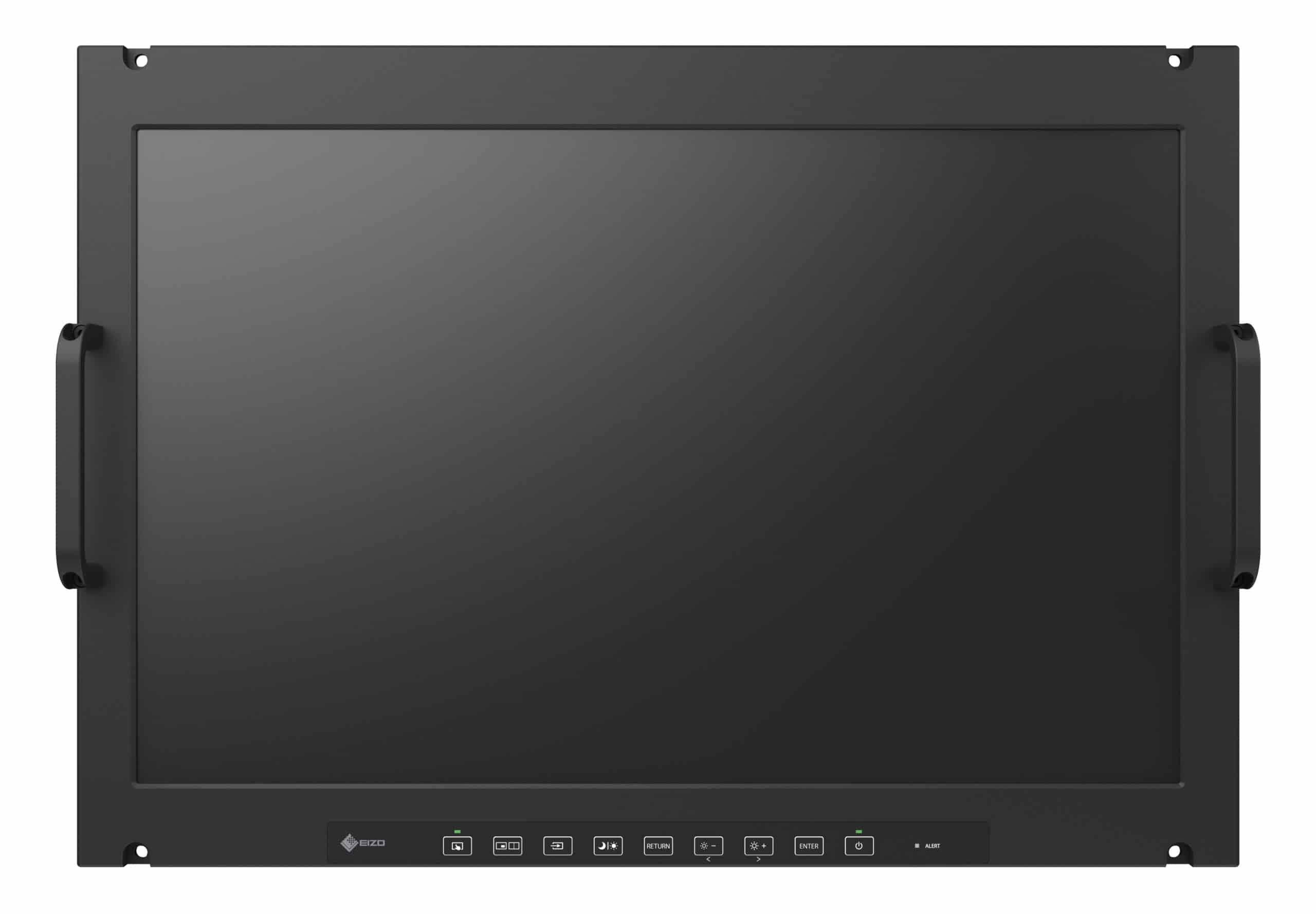

Talon RGD2401W

24.1" Rugged LCD Monitor. The Talon Series of COTS rugged LCD monitors are ready to be deployed in extreme environments with ruggedized features such as sunlight readability (optional), water resistance with IP65 (front), a built-in heater (optional), and conformal coating to protect components in harsh environments.Read More

EIZO Rugged Solutions

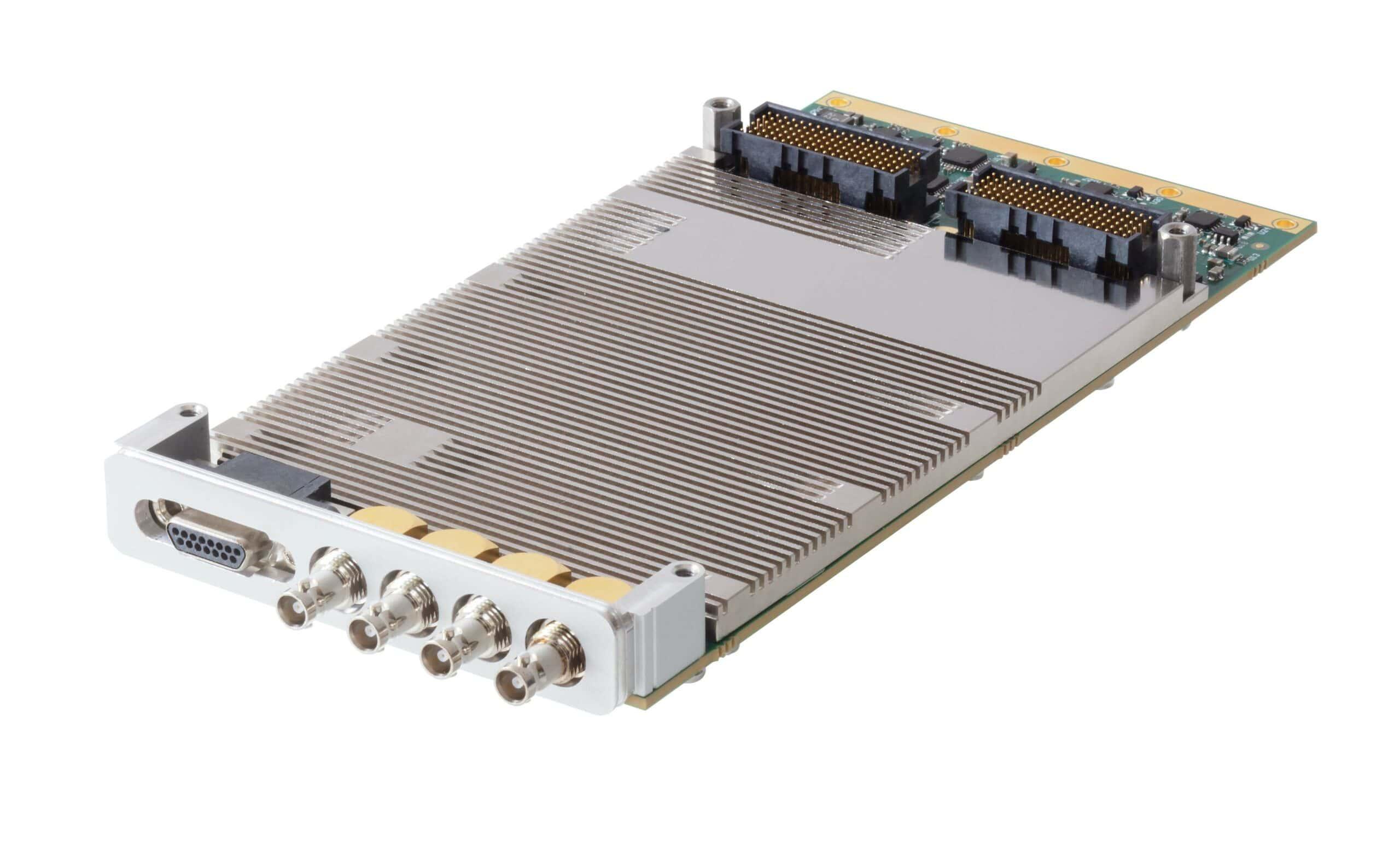

Condor NVP2009AxF

Rugged XMC graphics & GPGPU card based on the NVIDIA Quadro Pascal P2000 GPU. The Condor NVP2009AxF is a high-performance embedded graphics and GPGPU processing XMC card based on the NVIDIA Quadro P2000 GPU (chip-down). This rugged XMC card supports both legacy and newer digital/analog video output formats, along with CUDA and OpenCL based GPGPU computing, AI processing, deep learning, and H.265 (HEVC) / H.264 encoding & decoding.The Condor NVP2009AxF supports up to four video outputs active at the same time with customizable analog and digital output combinations. DisplayPort™++, DVI, RGB (VGA, STANAG 3350, RS-170, RS-343), 3G-SDI and CVBS (NTSC/PAL) outputs are available for interfacing with modern digital equipment. The analog CVBS (NTSC/PAL) and RGB (STANAG 3350, RS-170, RS-343) outputs can be configured to support single-ended or differential signaling. Differential signaling is a key enhancement over the traditional single-ended signaling to minimize system-induced signal noise. Supporting both signal types is critical for situations where modern and legacy interfaces must be supported on the platform. In addition, raw video data can be sent over PCIe directly to GPU memory for analysis/processing using NVIDIA GPUDirect™ RDMA.Read More

EIZO Rugged Solutions

Communication and Control

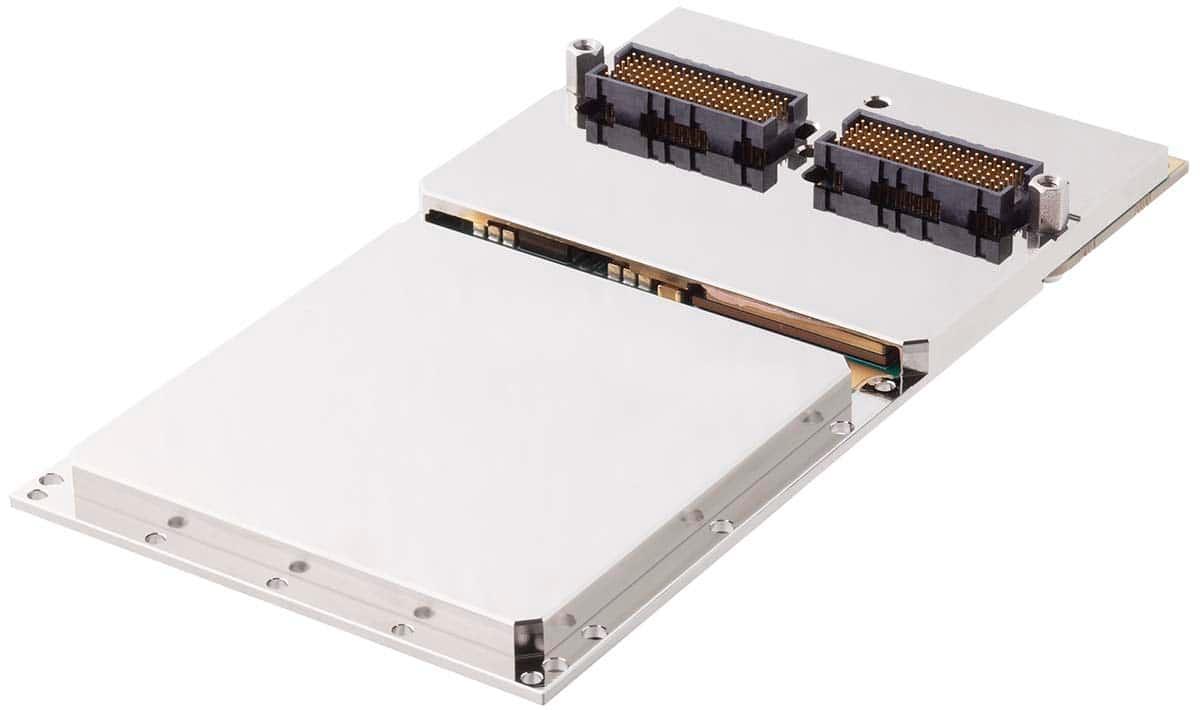

Condor NVA2104AxX

Rugged XMC video capture & GPGPU card based on the NVIDIA Ampere A2000 GPU supporting four video/aud. The Condor NVA2104AxX is a rugged high-performance XMC graphics card that captures both analog & digital raw frame-by-frame audio/video and metadata with exceptionally low latency. This card is designed with the NVIDIA® Ampere A2000 GPU supporting 8 GB GDDR6 graphics memory with Error Correction Code (ECC), and features 2,560 CUDA Cores, 80 Tensor Cores, and 20 RT Cores for accelerated performance in neural network training and inferencing functions. This all-in-one solution provides the ability to simultaneously capture, process, display, encode, decode, and stream video data while supporting CUDA and OpenCL based GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding.The Condor NVA2104AxX card is very I/O intensive as it supports four 3G-SDI inputs, two CVBS (NTSC/PAL/SECAM), and two stereo line in audio inputs, as well as four 3G-SDI outputs. SDI VANC KLV metadata insertion and extraction is also supported. This innovative video capture and GPGPU card is designed for applications that combine legacy video with newer digital video formats in high-end surveillance applications. The video capture (frame grabber) auto detects the input resolution and then transfers raw video frames directly to GPU memory or host memory using NVIDIA GPUDirect™ RDMA. In GPU memory, the applications can do processing such as image analysis, image enhancement, 360 degree video stitching, sensor fusion and target detection, using GPGPU (CUDA / OpenCL), all with very low latency.Read More

EIZO Rugged Solutions
